Oil Coolers
Oil Coolers
An oil cooler passes engine oil or transmission fluid through a dedicated heat exchanger core so it can shed heat before it returns to the engine or gearbox. This range covers vehicle-specific engine and transmission cooler kits, universal cores and supporting parts such as sandwich plates, adapters and O-rings. Brands include Mishimoto, PERRIN, CSF, HEL, Koyorad, Process West and Toyota Genuine. Browse more lubrication parts in Oiling and Crankcase.
Shop by Product Type

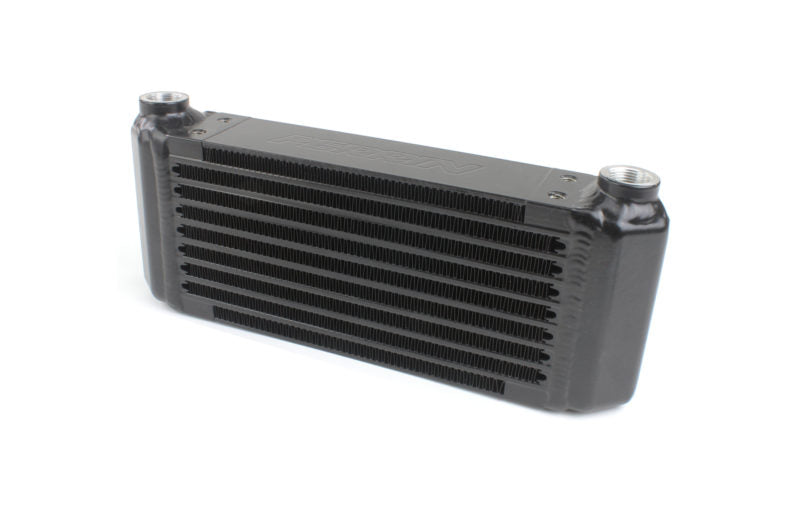

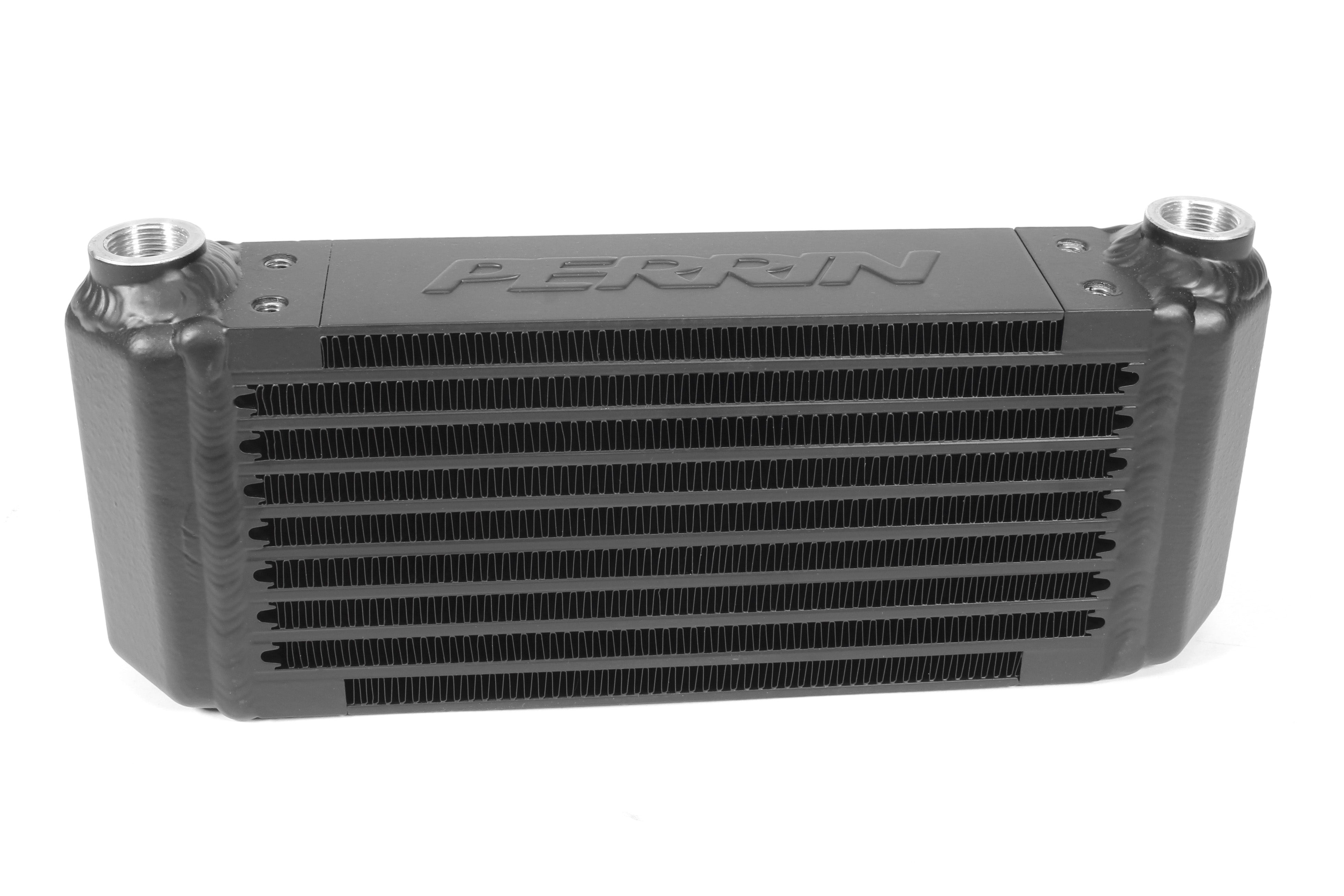

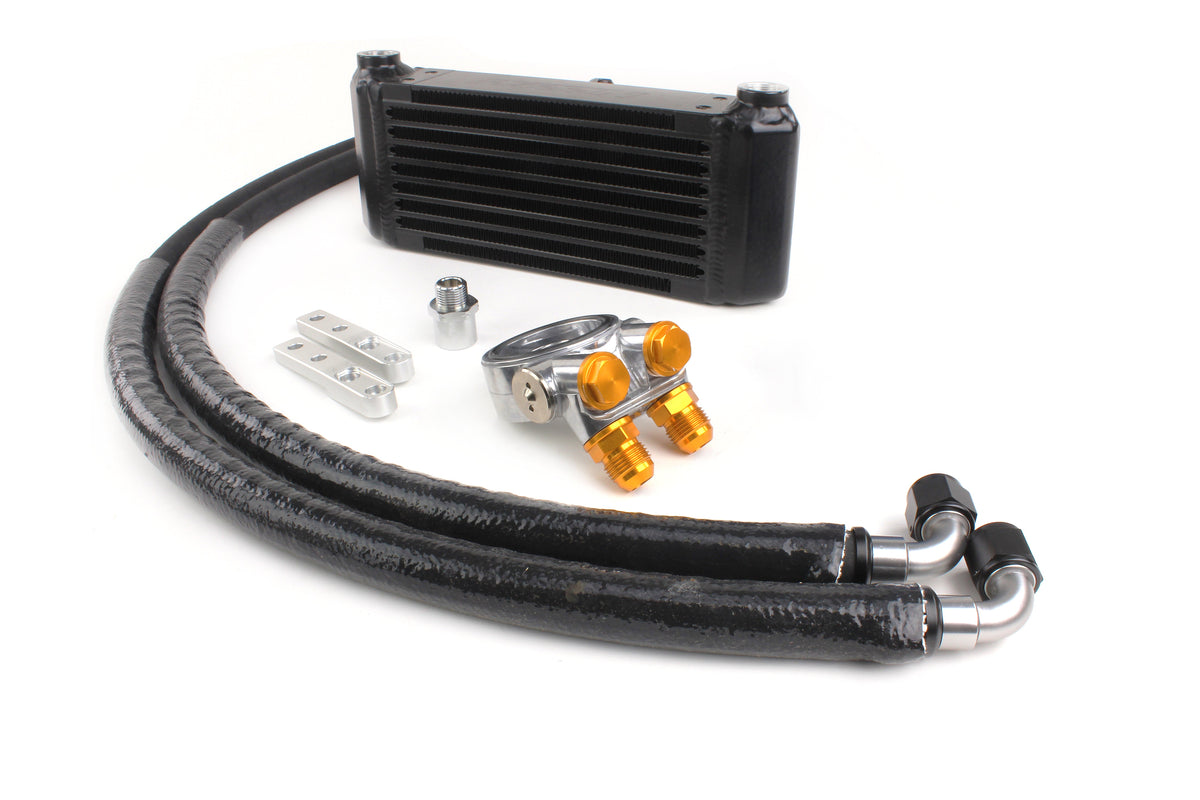

- Engine oil cooler kits: Vehicle-specific kits from Mishimoto, PERRIN and HEL for models including the Subaru WRX (VA/VB), Subaru BRZ (ZC6/ZD8) / Toyota 86 (ZN6) / GR86 (ZN8), Honda Civic Type R (FK8), Ford Focus RS (LZ), Mitsubishi Lancer Evolution X (CZ4A), Toyota GR Corolla (GZEA14), BMW M2/M3/M4 (G80/G82/G83/G87) and Volkswagen Golf R Mk7 / Mk7.5 (EA888.3).

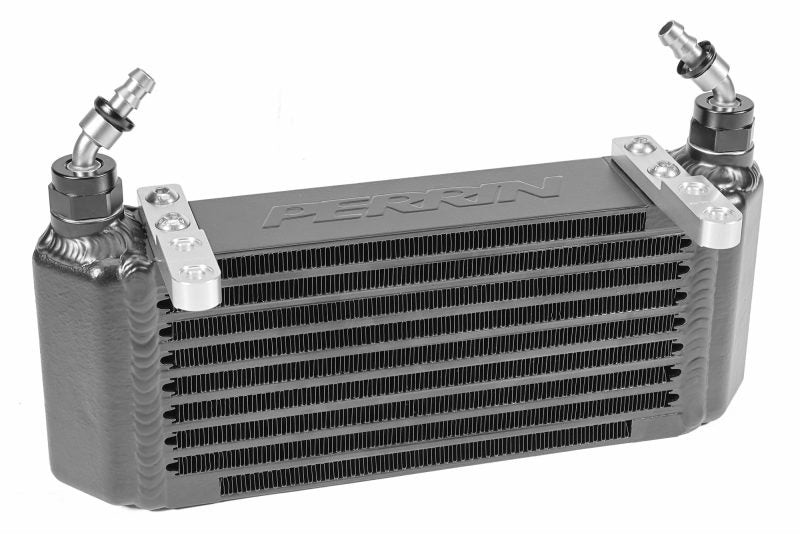

- Transmission coolers: CSF coolers for the ZF8 automatic in the BMW M2 (G87), M3 (G80/G81) and M4 (G82/G83), and for B58-powered models including the Toyota Supra A90. Also available are Mishimoto coolers for the BMW M3/M4, PERRIN CVT cooler kits for the Subaru WRX and Forester (SK), and a Process West kit for the Volkswagen Amarok (NF) V6 diesel.

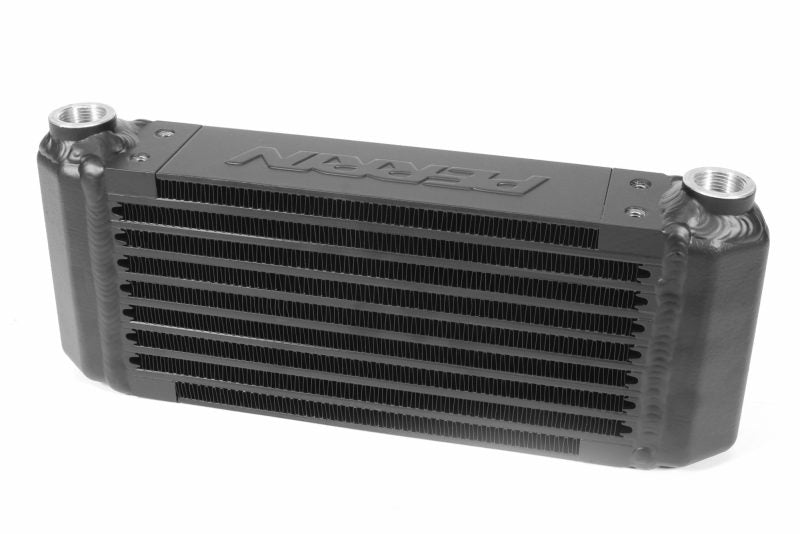

- Universal cores: Koyorad 10, 19, 25 and 35 row oil coolers, a Koyorad tube and fin crossflow fluid cooler, and the PERRIN universal core.
- Genuine replacement parts: The Toyota Genuine oil cooler assembly for the GR Yaris (GXPA16) and GR Corolla (GZEA14H) with the G16E-GTS engine.

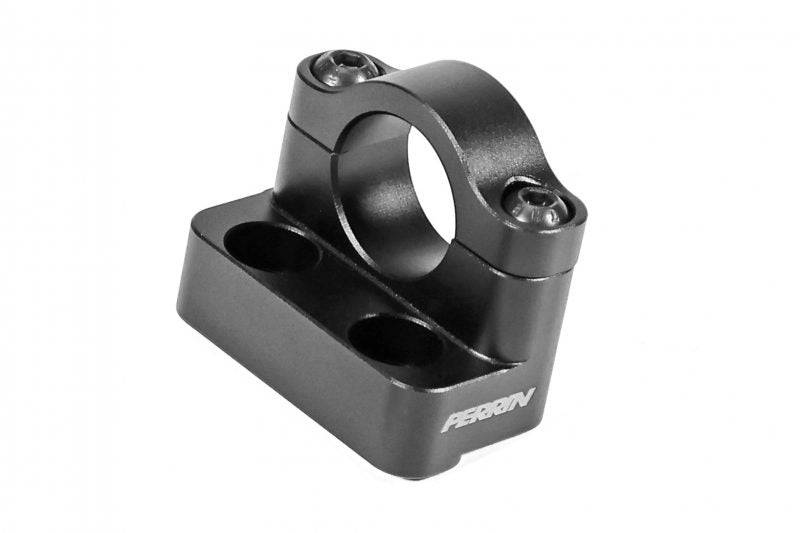

- Supporting parts: Mishimoto thermostatic and non-thermostatic sandwich plates, the PERRIN oil temperature and pressure adapter, PERRIN relocate kits and the PERRIN O-ring kit.
Related categories: Oil Filters, Oil Pumps and Sumps, Catch Cans, Air Oil Separators and Breather Components. You can also view all brands.
Choosing the Right Part
- Engine or transmission: Check whether the cooler is designed for engine oil or for gearbox fluid. Transmission coolers are listed against specific gearboxes, such as the ZF8 automatic or a Subaru CVT.
- Chassis and engine codes: Match the chassis code (for example VA, VB, ZC6, ZD8, FK8, G87) and the engine code (for example B58, EA888.3, G16E-GTS) shown in the product title.

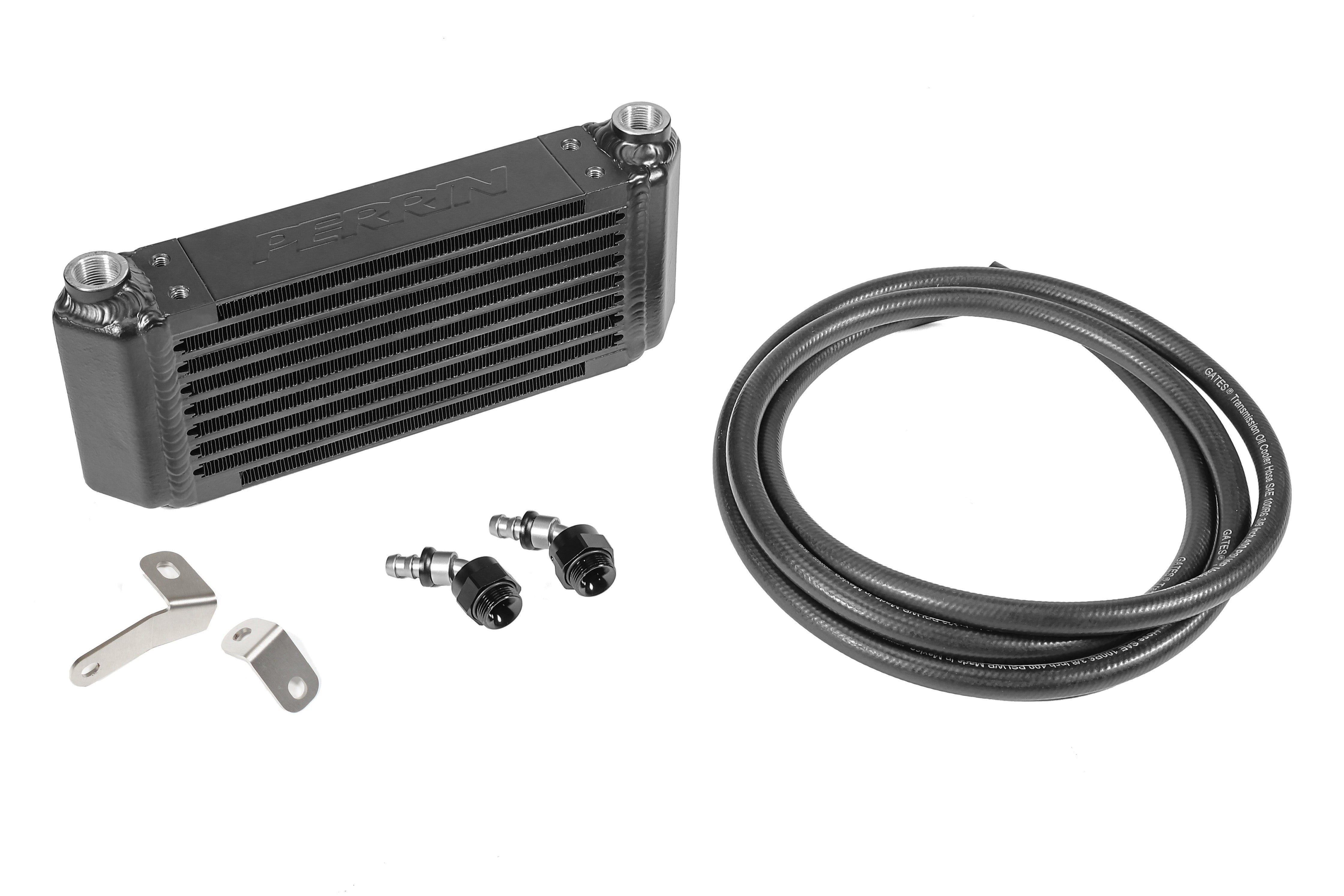

- Model conditions: Some kits are limited to particular variants. For example, one PERRIN CVT cooler kit for the Subaru WRX (VBH) suits the base model only. Always read the fitment note on each listing.

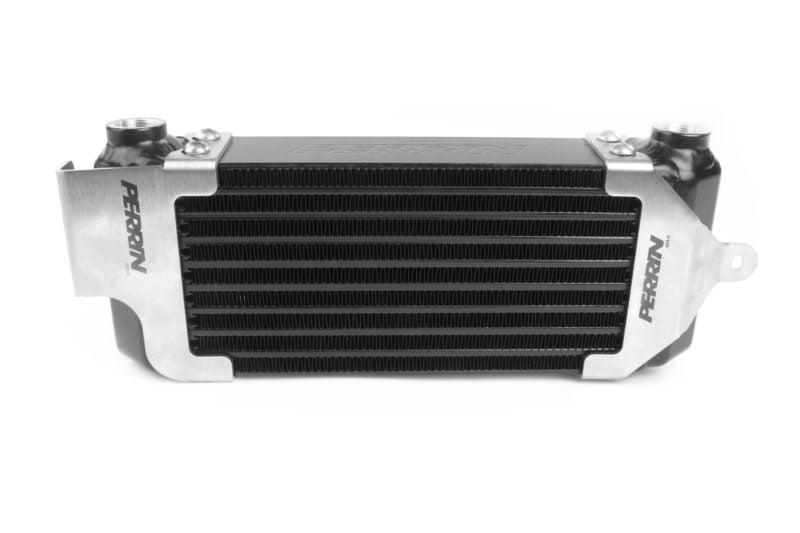

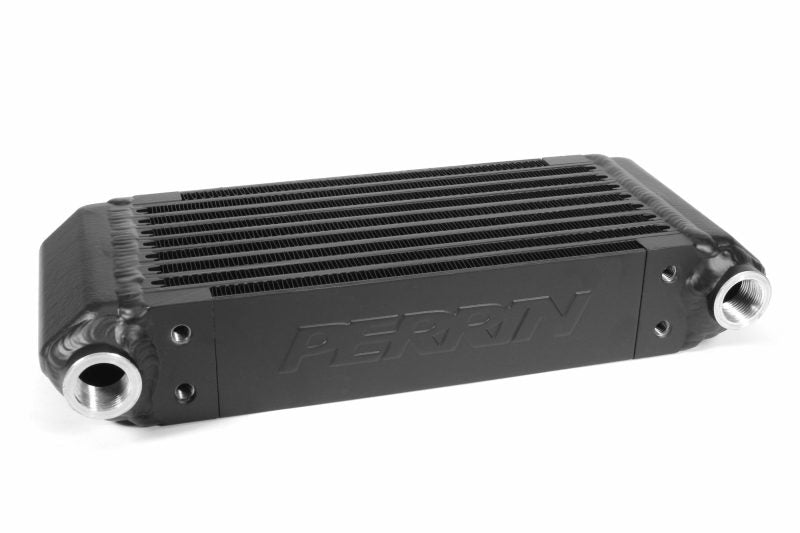

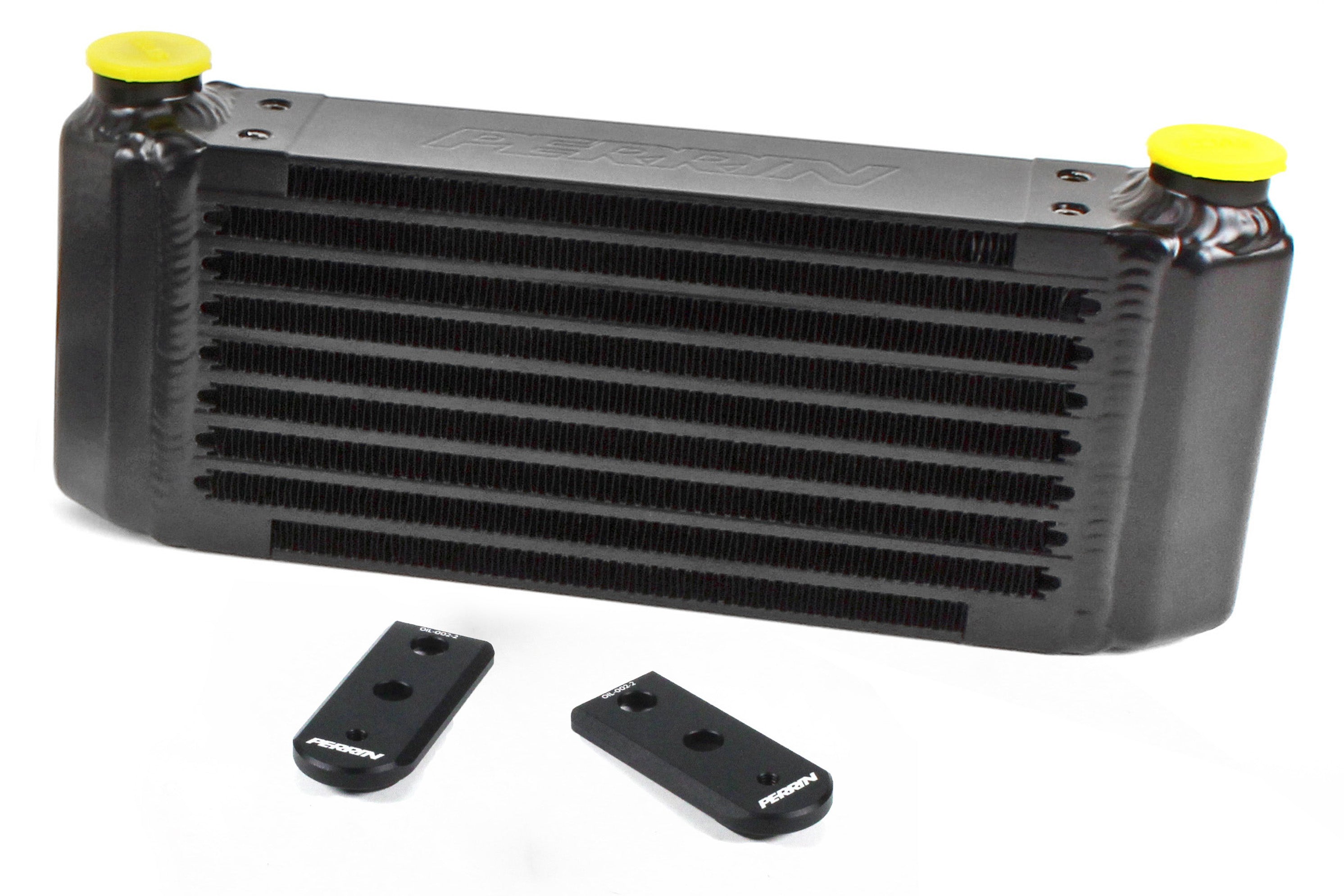

- Kit type: PERRIN offers full kits, tuner kits and relocate kits for several Subaru and Toyota models. Compare what each listing includes before you choose.
- Universal core size: Koyorad cores are listed by row count and dimensions, from the 10 row (286x76x51mm) to the 35 row (286x279x51mm). Several of these cores use -10AN ORB ports, so confirm the core fits your mounting space and your fittings.
- Thermostatic or non-thermostatic: Mishimoto sandwich plates for the Subaru BRZ (ZC6) / Toyota 86 (ZN6) come in thermostatic (gold) and non-thermostatic (silver) versions.
Installation & What You'll Need
Fitting an oil cooler involves draining and refilling oil or transmission fluid, mounting the core and routing the lines correctly. A universal core also needs compatible lines, fittings and a sandwich plate or adapter, so plan the complete setup before you buy. If you are adding gauges, the PERRIN oil temperature and pressure adapter provides sender ports on supported Subaru and Toyota models. Replacement O-rings are available in the PERRIN O-ring kit.
Note: Check the fitment conditions on each listing. Installation by a professional is recommended.
FAQ
What is the difference between an engine oil cooler and a transmission cooler?
An engine oil cooler cools the engine's lubricating oil, while a transmission cooler cools the gearbox fluid, such as in a ZF8 automatic or a Subaru CVT. The product title confirms which system each cooler is designed for.
What does the row count on a universal oil cooler mean?
The row count is the number of rows in the cooler core, and more rows means a larger core. For example, the Koyorad 10 row core measures 286x76x51mm and the 35 row core measures 286x279x51mm.
What is a thermostatic sandwich plate?
It is an adapter that fits at the oil filter mount and includes a thermostat designed to send oil to the cooler once it has warmed up. Mishimoto offers thermostatic and non-thermostatic versions for the Subaru BRZ (ZC6) and Toyota 86 (ZN6).
Can I install an oil cooler kit myself?
Installation by a professional is recommended, because it involves draining and refilling fluids and routing lines correctly. Contact our team if you need help confirming which kit suits your vehicle.
Need help choosing? Contact our team at sales@chicaneaustralia.com.au.
