PERRIN Top Mount Oil Cooler Kit - Subaru WRX (VA / VB / VN)
The PERRIN Top Mount Oil Cooler Kit fits a dedicated air-to-oil cooler on top of the engine of the 2015-on Subaru WRX (VA / VB / VN). It replaces the factory coolant-fed oil cooler, so oil heat is shed to the air rather than into the cooling system, helping keep oil temperatures in check on track days, long climbs and hot days.
Video
PERRIN explains the top-mounted oil cooler
An 8-row, 250mm wide PERRIN core sits on brackets above the engine and is fed by -10AN lines from a Mocal sandwich adapter with an 85°C (185°F) thermostat. Oil bypasses the cooler until it is warm, so the engine still warms up quickly. The oil filter spacer has two 1/8 in NPT ports for oil temperature or pressure sensors.
Note: Replaces the factory oil cooler/warmer; the coolant hoses are joined to bypass it. Engine oil and coolant will need topping up after fitting. Installation by a professional is recommended.
Features
- 8-row x 250mm PERRIN cooler core
- Mocal thermostatic sandwich adapter, opens at 85°C
- Made-up -10AN oil lines
- Oil filter spacer with two 1/8 in NPT sensor ports
- Mounting brackets and stainless fasteners
- Coolant bypass hose and reducer supplied
- Complete kit with zip ties and stencil
Pairs Well With
- PERRIN Oil Cooler O-Ring Kit - Universal
- PERRIN Coolant Tank - Subaru WRX (GC / GD / GG / GE / GH / GR / GV / VA / VB / VN) / WRX STI (GC / GD / GR / GV / VA)
Need help choosing an oil cooler? Contact our team at sales@chicaneaustralia.com.au.
Vehicle Compatibility
| Make | Model | Chassis | Engine |
|---|---|---|---|
| Subaru | WRX | VA | FA20DIT |
| Subaru | WRX | VB | FA24DIT |
Product
- Brand
- PERRIN
- Part number(s)
- PSP-OIL-151
Details
- Product
- Top mount engine oil cooler kit
- Cooler core
- 8-row x 250mm wide, M22 inlets
- Thermostat
- 85°C (185°F), Mocal sandwich adapter
- Oil lines
- -10AN
- Sensor ports
- 2 x 1/8 in NPT on oil filter spacer

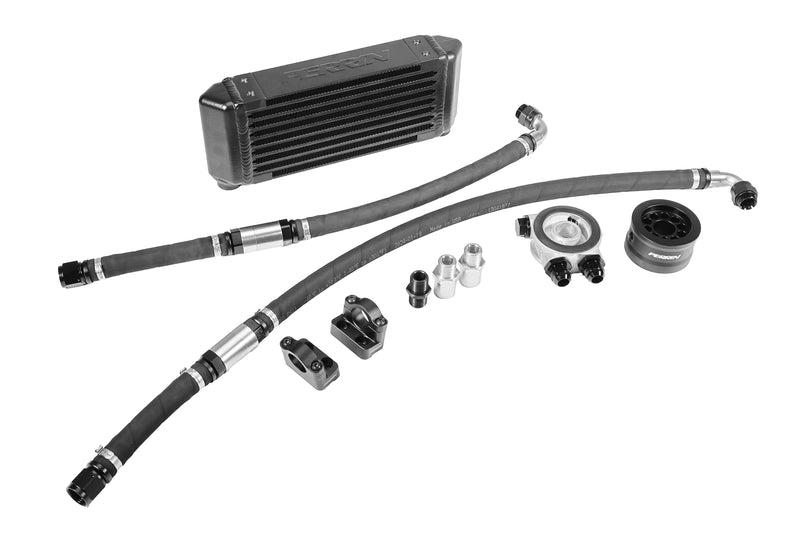

Contents
- 1 x PERRIN oil cooler core (8-row x 250mm, M22 inlets)
- 2 x cooler bracket bodies
- 2 x cooler bracket caps
- 1 x oil filter spacer (black)
- 1 x 60mm Viton O-ring for spacer
- 1 x Mocal thermostatic sandwich adapter (85°C)
- 1 x male to male oil filter adapter
- 1 x 50mm threaded oil feed pipe (M20 x 1.5)
- 1 x 55mm threaded oil feed pipe (M20 x 1.5)
- 2 x M22 to -10AN adapter fittings (black)
- 2 x right side oil line assemblies (longer)
- 1 x left side oil line assembly (shorter)
- 2 x 1/8 in NPT socket plugs
- 4 x M8 x 16mm socket head screws (stainless)
- 4 x M6 x 14mm button head screws (black stainless)
- 1 x 1/2 in to 3/8 in plastic reducer
- 300mm (1 ft) of 3/8 in ID coolant hose
- 8 x zip ties
- 1 x PERRIN oil cooler stencil
