HKS DCT Fluid Trans Cooler Kit – Nissan GT-R R35 (Version 0)

The HKS DCT Cooler Kit for the 2007–2010 Nissan GT-R R35 is designed to stabilise GR6 dual-clutch transmission temperatures during hard street and circuit use. The factory water-cooled system struggles under high load, causing the oil to heat quickly and affecting shift quality and clutch protection. This kit improves cooling efficiency, protects the transmission, and maintains consistent performance.

Product Overview

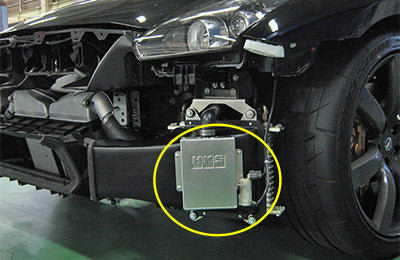

The cooler core mounts in the front left fender, where it receives strong airflow through a dedicated FRP air duct. The system uses larger -10 oil lines for improved volume and reduced restriction. The HKS kit integrates with the factory heat exchanger and includes a dedicated thermostat to reduce warm-up time and stabilise oil temperatures faster after cold starts.

By reducing transmission oil temperature, the kit helps maintain firm, predictable shifts, prevents clutch overheating, and extends the life of the DCT fluid. The design also lowers engine coolant temperature slightly by assisting the factory cooling loop.

Key Features

• Front left fender-mounted cooler core for maximum airflow
• FRP air duct designed specifically for the R35 GT-R
• Large -10 oil lines to reduce restriction and improve flow
• Integration with OEM heat exchanger and HKS thermostat
• Faster temperature stabilisation after cold starts
• Improved shift consistency under high load
• Helps prevent clutch and transmission overheating

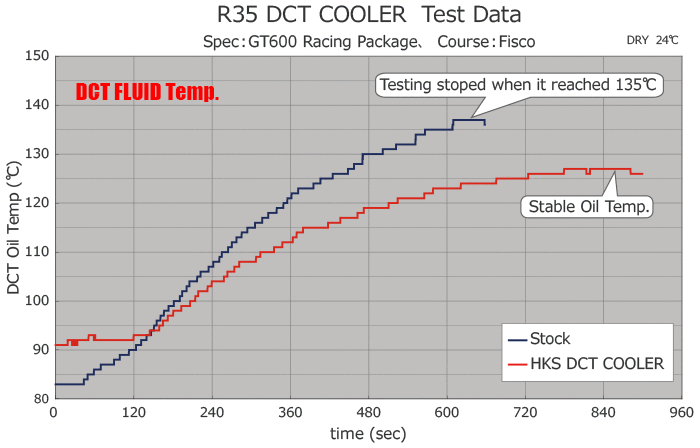

Performance Testing

HKS in-house testing at Fuji Speedway recorded:

• Water temperature reduction of approx. −5°C
• Stable continuous-lap DCT oil temperature of approx. 127°C

GR6 Transmission Notes

• Factory system is water-cooled
• Failsafe activates at approximately 140–145°C
• Nissan recommends replacing engine oil if DCT oil exceeds 140°C
• If 4WD clutch temperature rises, the system may switch to 2WD mode

Additional Components

• New aluminium washer tank designed for the R35

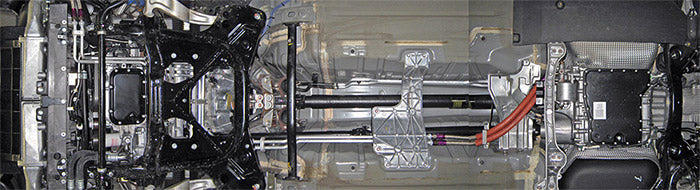

• Dedicated aluminium piping for engine-bay routing
• Improved appearance and reduced weight compared to factory parts

Included in the Kit

• DCT cooler core
• FRP air duct
• -10 oil lines
• HKS thermostat
• Oil outlet attachment
• Aluminium washer tank
• Aluminium hard pipes
• Wiring, brackets, and mounting hardware

Installation Manual

Download HKS Install Manual (27002-AN102)
