HKS DCT Fluid Trans Cooler Kit – Nissan GT-R R35 (Version 1)

The HKS DCT Cooler Kit for the Nissan GT-R R35 is designed to control GR6 transmission temperatures during both street and circuit driving. The factory GR6 system is water-cooled, but under high load the oil temperature rises quickly, affecting shift quality, clutch protection, and drivetrain reliability. The HKS kit stabilises transmission oil temperature and improves long-term durability.

Product Overview

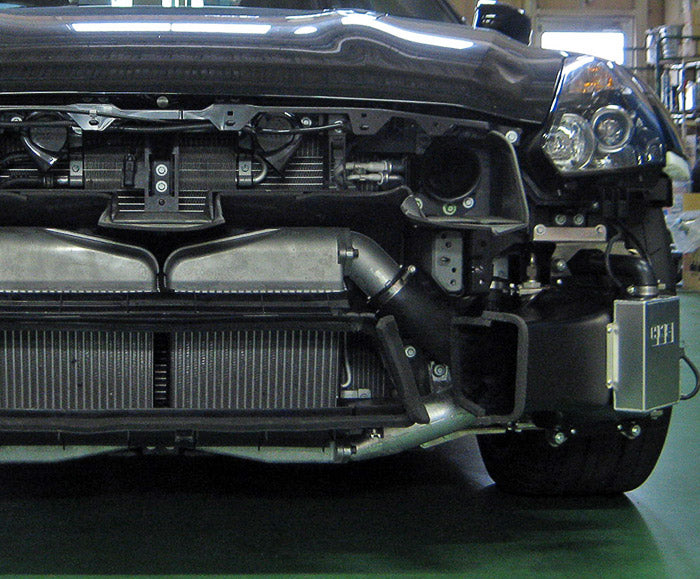

This kit uses a dedicated DCT cooler core mounted in the front left fender, paired with a specially designed FRP air duct. Oil flow efficiency is improved with larger -10 lines, and the system integrates with the factory heat exchanger and a dedicated HKS thermostat to speed up temperature stabilisation after cold starts.

Lower transmission temperatures allow for consistent shift quality, reduced clutch overheating, and extended fluid life. Because the DCT cooler assists the factory water-cooling circuit, small reductions in engine coolant temperature are also observed during hard driving.

Key Features

• Front left fender placement for optimal airflow and cooling efficiency
• FRP air duct designed specifically for the R35 GT-R
• Large -10 oil lines reduce flow restriction and improve oil volume
• Integration with OEM heat exchanger and HKS thermostat
• Faster oil temperature stabilisation after cold starts
• Supports consistent shift quality under high load
• Helps reduce clutch overheating and extend DCT oil life

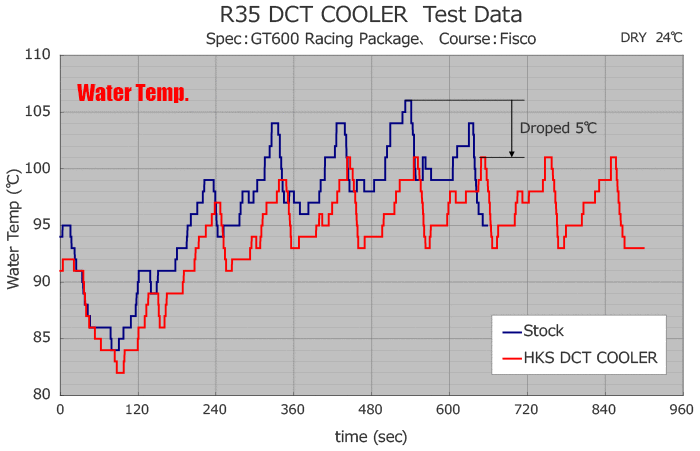

Performance Testing

HKS in-house testing at Fuji Speedway showed:

• Water temperature reduction: approx. −5°C
• Stable continuous-lap DCT oil temperature: approx. 127°C
• Improved temperature recovery during cool-down

DCT (GR6) Notes

• Factory system is water-cooled
• Failsafe activates at approx. 140–145°C
• Nissan recommends oil replacement above 140°C
• If 4WD clutch temp rises, the car may switch to 2WD mode

Additional Components

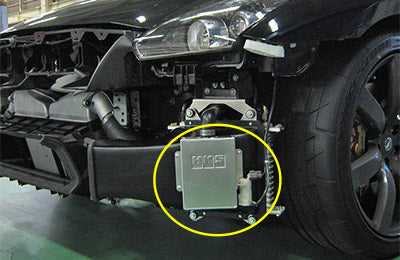

• New aluminium washer tank designed for the R35

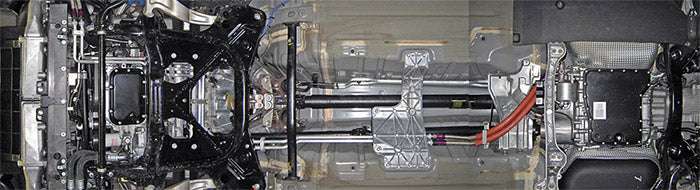

• Dedicated aluminium hard-pipes for improved engine bay appearance

Included in the Kit

• DCT cooler core
• FRP air duct
• -10 oil lines
• HKS thermostat
• Oil outlet attachment
• Aluminium washer tank
• Aluminium engine-bay piping
• Wiring, brackets, and hardware

Installation Manual

Download HKS Install Manual (27002-AN104)
