Nitto H-Beam Connecting Rods Toyota 2JZ-GTE Supra (JZA80) / Aristo (JZS147 / JZS161)

Nitto H-Beam Connecting Rods - Toyota 2JZ-GTE - Supra (JZA80) / Aristo (JZS147 / JZS161)

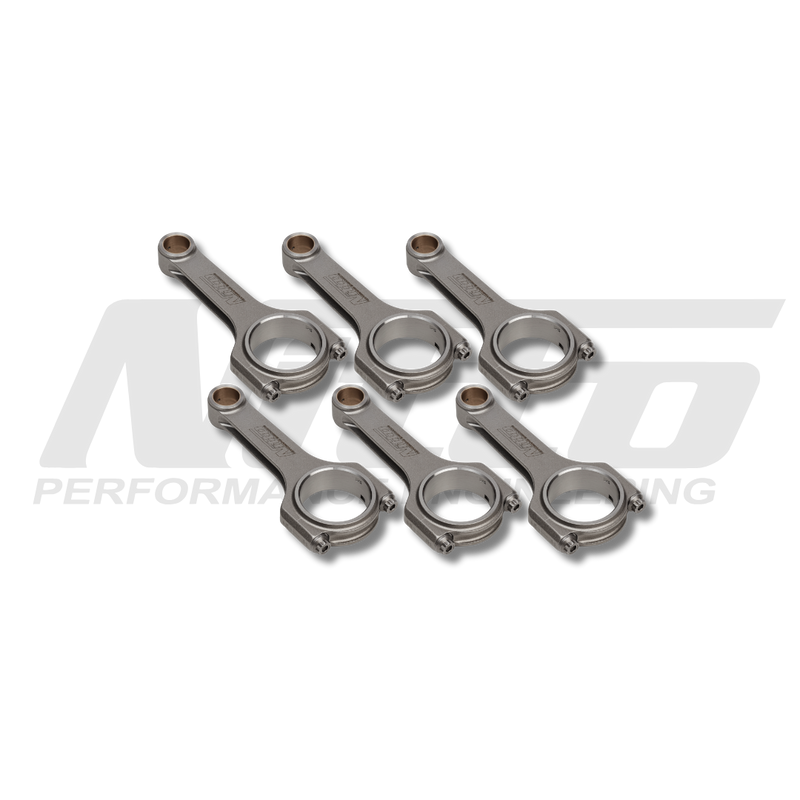

Nitto H-beam connecting rods for the Toyota 2JZ-GTE in the JZA80 Supra and Aristo. They give a standard-stroke 2JZ a far stronger link between crank and piston, and suit street and weekend track builds that do not need a heavy-duty I-beam.

These are 142 mm rods for the factory 3.0L stroke, fitted with 7/16" ARP 2000 bolts.

Nitto H-beam rods are the value step in the range: the same double-melted 4340 billet forging, heat treatment and finishing as the I-beam, with a simpler beam design that keeps the price down. They suit builds that need a much stronger link than the factory rod without going to a heavy-duty I-beam, and come with ARP 2000 bolts and silicone bronze pin bushes.

Note: Installation by a professional is recommended. Engine internals must be measured and set up by a qualified engine builder.

Features

• One-piece forging from double-melted 4340 billet steel, X-ray and sonic grade tested
• Quenched, heat treated and shot peened to 38 HRC
• Doweled caps for accurate cap alignment
• ARP 2000 series rod bolts (7/16")
• Silicone bronze pin-end bushes
• Balanced to within ±1 g per set, with bores sized to ±0.0001" on Sunnen honing equipment
• Fully CNC profiled, drilled and tapped

Kit Contents

• 6 x Nitto H-beam connecting rods
• ARP 2000 rod bolts
• Silicone bronze pin bushes (fitted)

Warranty

Nitto parts are made for racing and off-road use. Inspect every part during assembly and blueprinting, and contact us before fitting if anything measures out of tolerance. Under Nitto's limited warranty a defective part will be repaired or replaced at Nitto's option, and any modification voids the warranty. Full terms: Nitto limited warranty (PDF).
