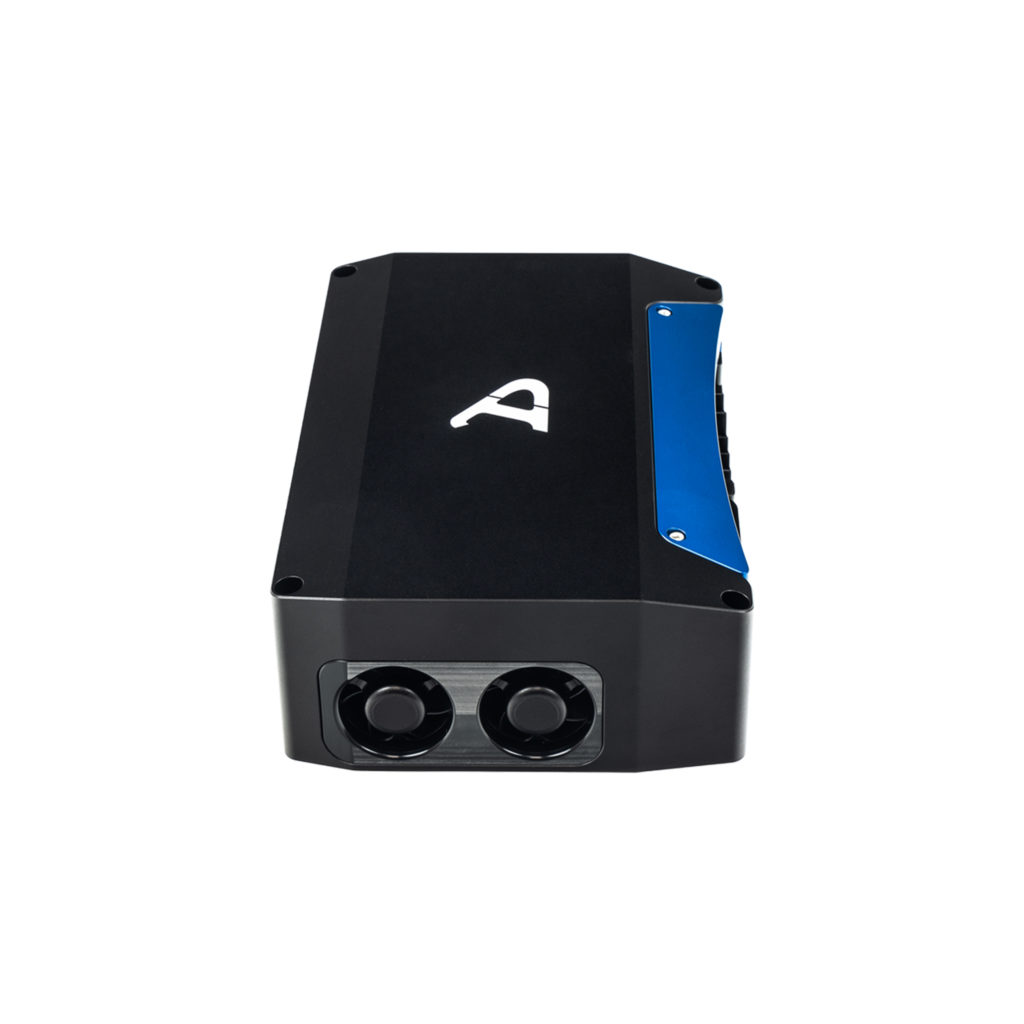

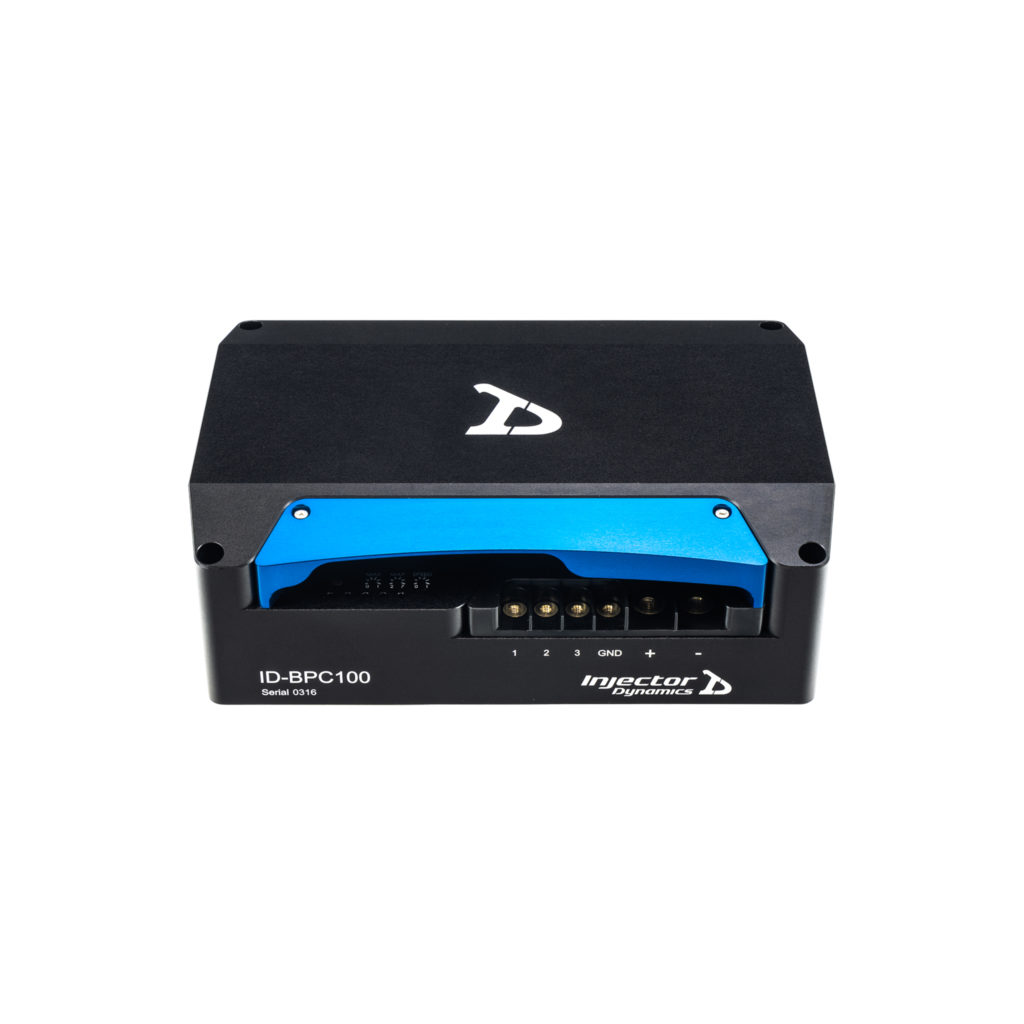

Injector Dynamics BPC100 Brushless Pump Controller No Pump Included

Injector Dynamics BPC100 Brushless Pump Controller – No Pump Included

The Injector Dynamics BPC100 is a microprocessor-based controller for the TI Automotive E5LM brushless fuel pump. Paired with that pump it can supply enough fuel for more than 2,000 hp on ethanol, at up to 150 psi, from a single pump.

A normal pump's flow falls as voltage drops and fuel pressure rises. Injector Dynamics gives the example of a pair of 500 L/h pumps that flow 1,000 L/h at 3 bar and 13.5 V but can drop to around 500 L/h at 4 bar base pressure, 30 psi of boost and 12 V. The BPC100 powers the pump from its own internal supply and watches pump speed, so it holds the target flow as conditions change, up to 1,100 L/h.

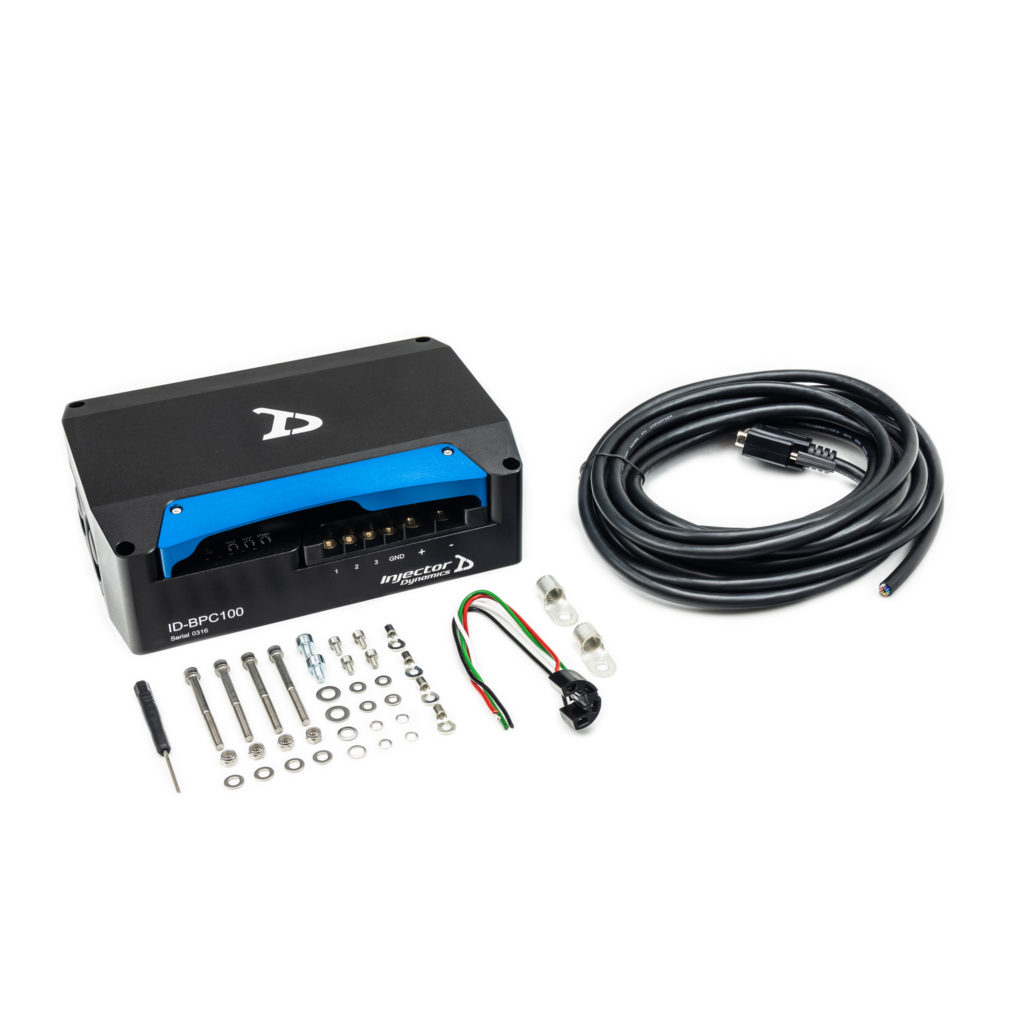

This listing is the controller only. The pump is not included. For the controller and pump together, see the ID FPS1100 (BPC100 + E5LM).

Note: Installation by a professional is recommended.

Features

• Holds a set flow rate regardless of battery voltage or fuel pressure
• Flow set by onboard potentiometer, MAP sensor or PWM input from the ECU
• CAN bus output of voltage, current, flow, temperature, MAP voltage and PWM duty
• Error codes via onboard LEDs and CAN
• Reverse polarity protection

Pairs Well With

• ID F1250 in-line filter: Injector Dynamics recommends a filter that flows 1,200 L/h with minimal drop, like the F1250
• ID FPS1100 kit: BPC100 with TI E5LM pump
• Injector Dynamics fuel injectors: flow-matched sets from 1050 to 2600cc with published tuning data
