Injector Dynamics F1250 In-Line Fuel Filter Only

Injector Dynamics F1250 In-Line Fuel Filter Only

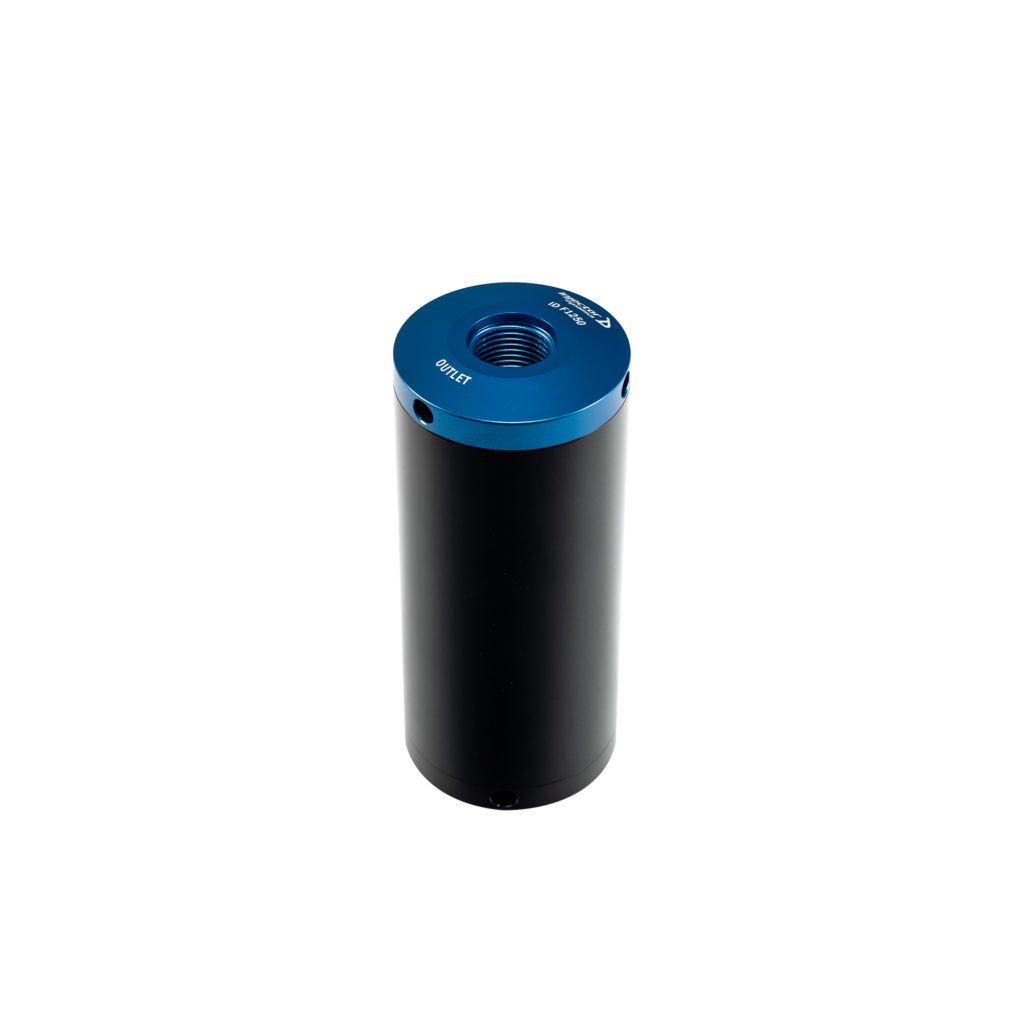

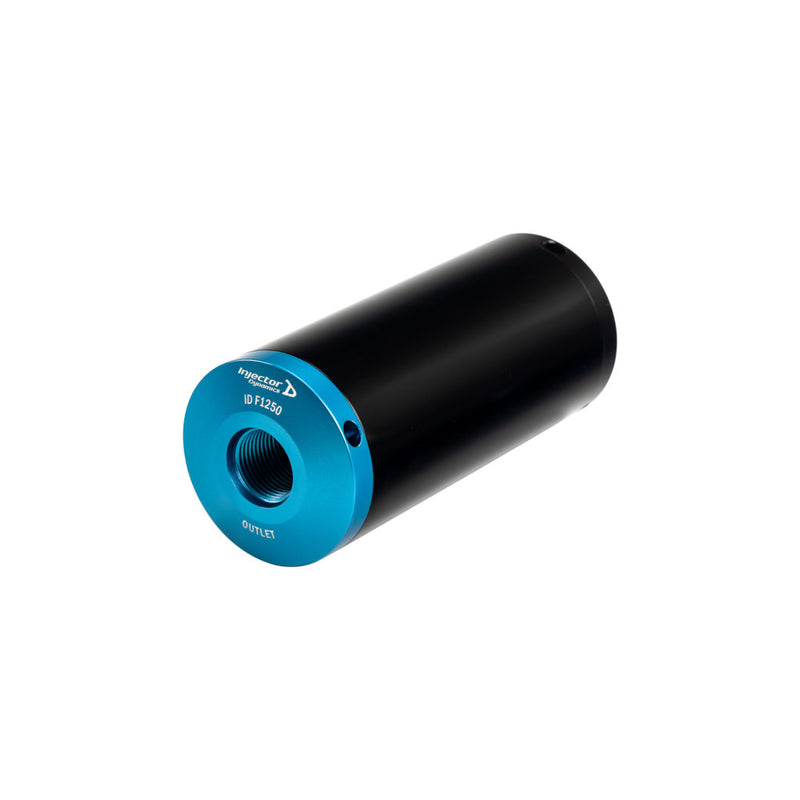

The Injector Dynamics F1250 is a high-flow in-line fuel filter built to protect injectors to Bosch's specification, with very little restriction.

It flows 1,250 L/h with only 1.1 psi of pressure drop, which Injector Dynamics says supports about 2,500 hp on ethanol or 3,750 hp on petrol. It is rated to 21 bar (300 psi), with fully anodised internals, fluorosilicone o-rings and a glass-fibre element for compatibility with all fuels.

Injectors are machined to tolerances measured in microns, and very small particles can wear or ruin them. Bosch specifies a filter that captures at least 87% of particles at 5 microns and 100% at 35 microns (a human hair is roughly 75 microns). Injector Dynamics recommends fitting the filter after the pump and as close to the fuel rail as practical, so as little of the system as possible is unfiltered.

Note: Installation by a professional is recommended.

Features

• 1,250 L/h at 1.1 psi pressure drop
• Meets Bosch injector filtration spec (87% at 5 microns, 100% at 35 microns)
• Rated to 21 bar (300 psi)
• SAE -10 ORB ports
• Compatible with all known fuels

Pairs Well With

• F1250 mount

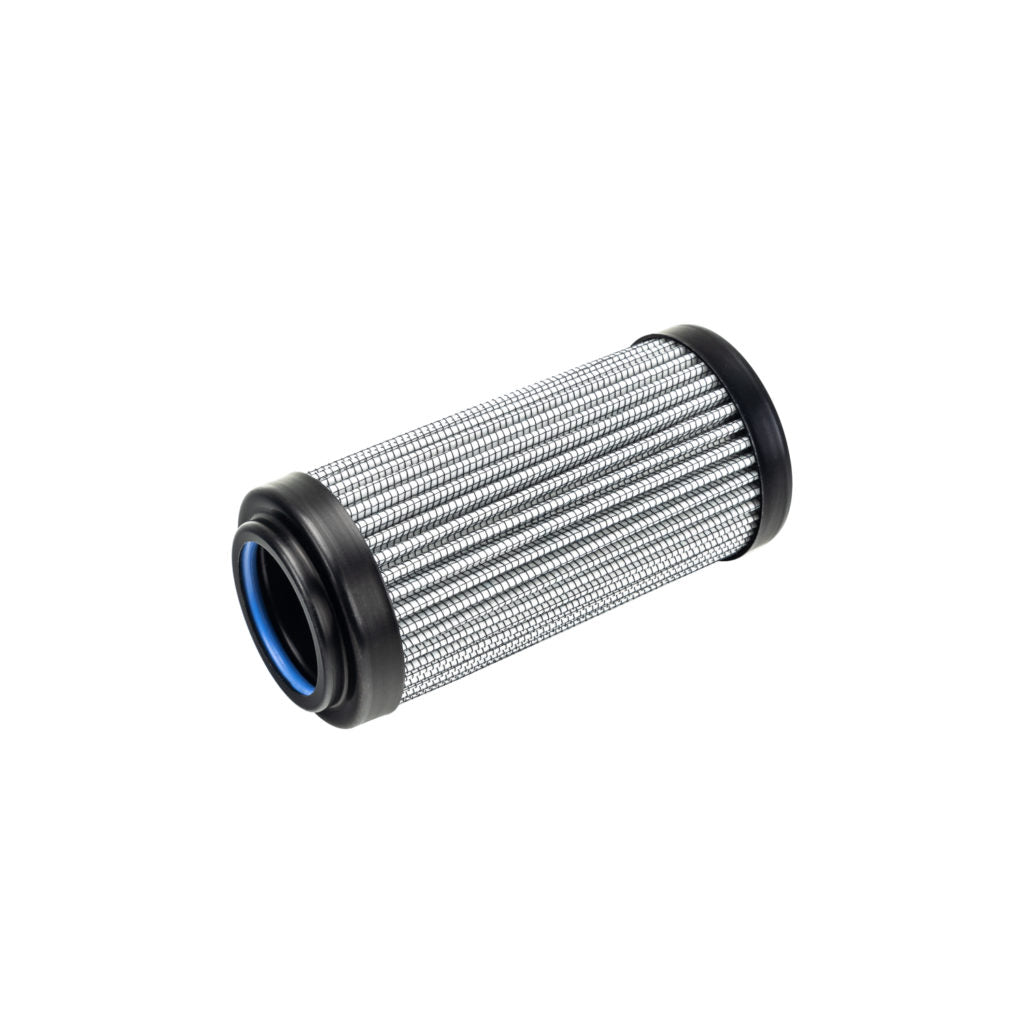

• F1250 replacement element
• ID FPS1100 pump system
• Injector Dynamics fuel injectors: flow-matched sets from 1050 to 2600cc with published tuning data

Shop more: Injector Dynamics Fuel Injectors

Need help choosing parts? Contact our team at sales@chicaneaustralia.com.au.
