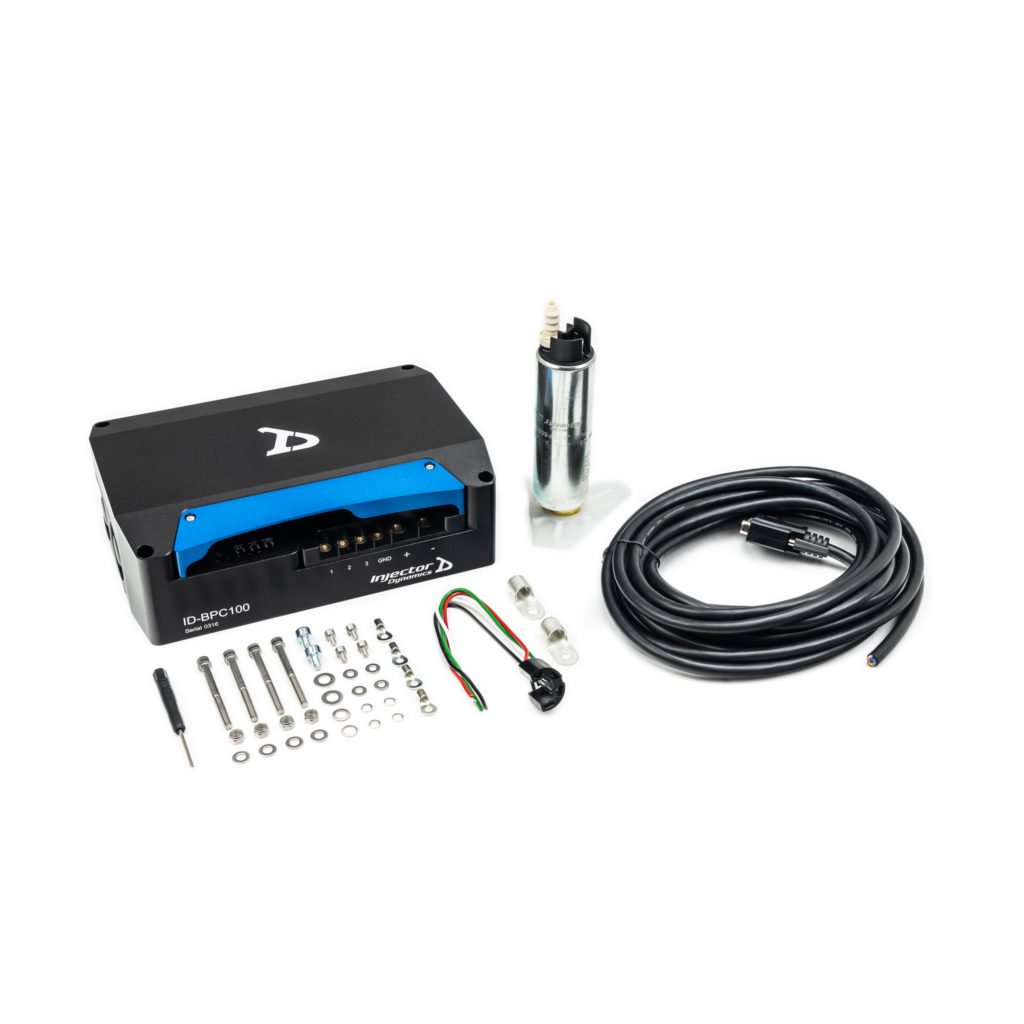

Injector Dynamics BPC100 Brushless Pump Controller with E5LM Fuel Pump

The ultimate single-pump solution for high-horsepower fuel systems. The Injector Dynamics 1100LPH Fuel Pump System pairs the advanced BPC100 controller with the powerful TI Automotive E5LM brushless pump, delivering up to 1,100 LPH at pressures up to 150 psi—even under extreme conditions.

This intelligent setup is engineered for serious motorsport use, offering consistent flow for over 2,000hp on ethanol with advanced control features and CAN integration.

Key Features:

• Supports 2,000+ hp on ethanol from a single pump

• Consistent 1,100 LPH flow under high pressure and low voltage

• TI Automotive E5LM brushless fuel pump

• BPC100 controller with built-in power regulation

• Maintains flow rate independent of battery voltage or boost pressure

• Variable flow via MAP sensor or PWM input

• CAN bus support for live data: voltage, current, flow rate, temp & more

• Compact and lightweight design with reverse polarity protection

• Max pressure: 150 psi

• Operating voltage: 7.0–17.5V

• Current draw: 5A–100A (depending on load)
