ACL Race Series Rod Bearings - Volkswagen Golf GTI / R (Mk7 / Mk7.5) / Audi S3 (8V) - 2.0 TSI

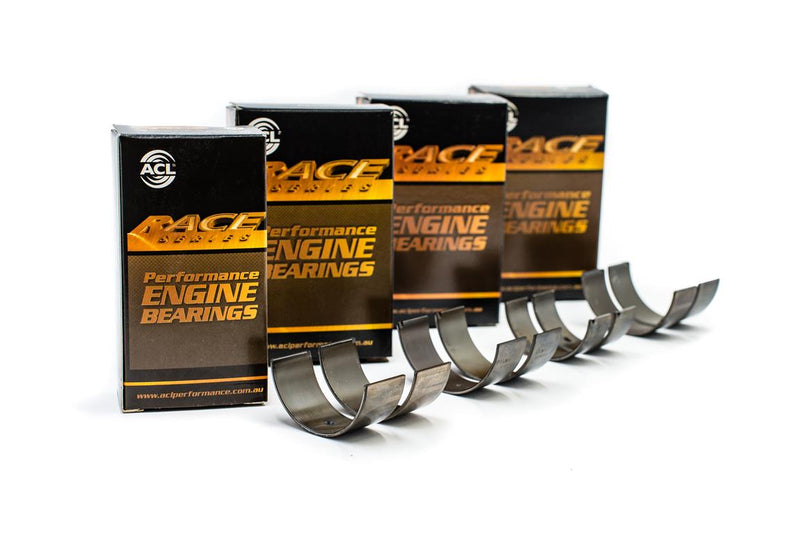

The ACL Race Series 4B5562H is a conrod (big-end) bearing set for the Volkswagen and Audi EA888 1.8 TSI and 2.0 TSI / TFSI four-cylinder, covering all four rods. ACL's Race Series trimetal bearings are built for boosted, high-rpm engines, with a stronger overlay, hardened steel backs and tight wall tolerances for consistent oil clearances. Choose Standard, 0.025mm or 0.25mm undersize for a reground crank, or the HX set for 0.025mm extra oil clearance.
Note: Suits the EA888 1.8 / 2.0 TSI four-cylinder (Gen 1 to Gen 4), including the Volkswagen Golf GTI (Mk6, Mk7, Mk7.5, Mk8), Golf R (Mk7, Mk7.5), Audi S3 (8V), A3 1.8 / 2.0 TFSI (8P 2008 on, 8V), TT (8J, 8S), TTS (8S), Skoda Octavia RS, Passat and Tiguan. Not for the EA113 engine (Golf GTI Mk5, Golf R Mk6, S3 8P, TTS 8J). The Golf R Mk8 and Audi S3 8Y (DNF engine) aren't on ACL's list yet, so contact us before ordering for those. Check your engine code against the list in the specs. Installation by a professional engine builder is recommended.
Audi RS3 / TT RS 2.5 TFSI five-cylinder: you need both part numbers: this 4B5562H set for four cylinders plus one ACL Race Series Rod Bearing Pair - Audi RS3 (8V / 8Y) / TT RS (8S) - Single Cylinder (1B5562H) for the fifth cylinder, in the same size.
Features
- ACL Race Series trimetal bearing, F781 material
- High-strength overlay plate with reduced thickness for better fatigue life
- Hardened steel backs for lining support and retention in the rod
- Increased crush for better retention in the housing
- No flash plating on the backs, for better heat transfer and grip
- Increased eccentricity to help form the oil film at high rpm
- Tight, consistent wall tolerances for repeatable clearances
- Enlarged ID chamfers to clear large crankshaft fillet radii
Pairs Well With
- Garrett PowerMax Stage 1 Turbocharger - Volkswagen Golf R (Mk7/Mk7.5) / Audi S3 (8V)
- Garrett PowerMax G25-660 Stage 2 Turbocharger - Volkswagen Golf R (Mk7/Mk7.5) / Audi S3 (8V)
- HEL Performance 19-Row Oil Cooler Kit - Volkswagen Golf R (Mk7 / Mk7.5)
Shop more: ACL · Rods, Cranks and Bearings
Need help with fitment? Contact our team at sales@chicaneaustralia.com.au.
Product
- Brand
- ACL
- Sizes
- STD, 0.025mm, 0.25mm undersize; STD HX (+0.025mm oil clearance)
- Standard shaft size
- 47.758 - 47.778 mm
- Standard tunnel size
- 50.600 - 50.619 mm
- Part number(s)
- 4B5562H-STD, 4B5562H-.025, 4B5562H-.25, 4B5562HX-STD
Details
- Range
- Race Series (H / HX)
- Bearing type
- Conrod (big-end), four-cylinder set (4 pairs)
- Engine
- VW / Audi EA888 1.8 / 2.0 TSI / TFSI four-cylinder
- Material
- F781 trimetal
- Half type
- Identical halves
- Max wall at crown
- 1.405 mm (STD), 1.392 mm (HX)
- Max overall length
- 17.4 mm
- ACL diagram
- 5562H
- ACL engine codes
- BYT, BZB, CABA, CABB, CADA, CAEA, CAEB, CAED, CAWA, CAWB, CBFA, CCTA, CCTB, CCZA, CCZB, CCZC, CCZD, CDAA, CDAB, CDHA, CDHB, CDNB, CDNC, CDND, CEA, CESA, CETA, CFKA, CFPA, CGYA, CHHA, CHHB, CHHC, CHJA, CJEB, CJED, CJEE, CJKA, CJKB, CJSA, CJSB, CJSC, CJXA, CJXB, CJXC, CJXD, CJXE, CJXF, CJXG, CNCB, CNCD, CNCE, CNSA, CNSB, CPKA, CPLA, CPMA, CPMB, CPPA, CPRA, CPSA, CULA, CULB, CULC, CWZA, CXBA, CXBB, CXCA, CXCB, CXDA, CYFB, CYGA, CYMC, CYNB, CYPA, CYPB, CYRB, CYRC, DAJA, DAJB, DAXB, DAXC, DAYB, DCGA, DEDA, DJHA, DJHB, DJHC, DJJA, DJYA, DKTB, DLBA, DLRA, DLRB, DMFA, DNUA, DNUC, DNUE, DNUF, DRFA
Contents
- 8 x ACL Race Series conrod bearing shells (4 pairs, one per cylinder)
