ACL Race Series Rod Bearing Pair Audi RS3 (8V / 8Y) / TT RS (8S) Single Cylinder

ACL Race Series Rod Bearing Pair - Audi RS3 (8V / 8Y) / TT RS (8S) - Single Cylinder

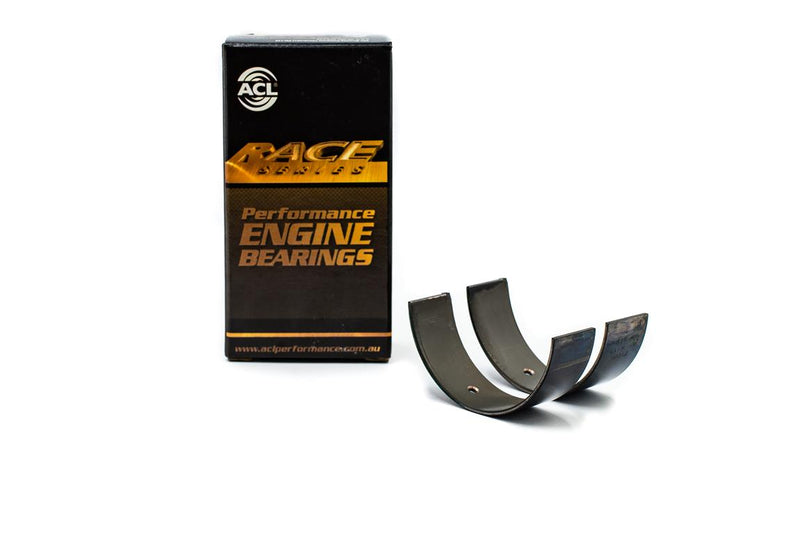

The ACL Race Series 1B5562H is a single conrod (big-end) bearing pair for one cylinder of the Audi 2.5 TFSI five-cylinder (EA855 and EA855 Evo). It shares its size and specs with ACL's 4B5562H four-cylinder set, so the two together cover all five rods. Choose Standard, 0.025mm or 0.25mm undersize for a reground crank, or the HX pair for 0.025mm extra oil clearance.

Note: For aftermarket connecting rods only, such as the CP Carrillo PRO-H Connecting Rods – Audi DAZA/DNWA 2.5T FSI (23mm Pin). These bearings will not work with the factory RS3 / TT RS rods; use genuine Audi bearings with OEM rods. Suits the EA855 2.5 TFSI five-cylinder in the Audi RS3 (8P, 8V, 8Y), TT RS (8J, 8S) and RS Q3 (8U, F3). Check your engine code against the list in the specs. Installation by a professional engine builder is recommended.

Audi RS3 / TT RS 2.5 TFSI five-cylinder: you need both part numbers: this 1B5562H pair for the fifth cylinder plus one ACL Race Series Rod Bearings - Volkswagen Golf GTI / R (Mk7 / Mk7.5) / Audi S3 (8V) - 2.0 TSI (4B5562H) for the other four, in the same size.

Features

• ACL Race Series trimetal bearing, F781 material
• High-strength overlay plate with reduced thickness for better fatigue life
• Hardened steel backs for lining support and retention in the rod
• Increased crush for better retention in the housing
• No flash plating on the backs, for better heat transfer and grip
• Increased eccentricity to help form the oil film at high rpm
• Tight, consistent wall tolerances for repeatable clearances
• Enlarged ID chamfers to clear large crankshaft fillet radii

Pairs Well With

• ACL Race Main Bearings Set – Audi DAZA/DNWA 2.5T FSI
• ARP 2000 Head Stud Kit - Audi 2.5 TFSI DAZA / DNWA - RS3 (8V / 8Y) / TT RS (8S)
• CP Carrillo PRO-H Connecting Rods – Audi DAZA/DNWA 2.5T FSI (23mm Pin)
• CP Forged Pistons – Audi DAZA/DNWA 2.5T FSI (23mm Pin)
• Cometic MLX Head Gasket .055" – Audi DAZA/DNWA 2.5T FSI (83.5mm Bore)

Shop more: ACL · Rods, Cranks and Bearings

Need help with fitment? Contact our team at sales@chicaneaustralia.com.au.
