Radium Engineering FCST-X 3-Bolt Remote Fill Neck (24AN to 1.5in Barb) - Universal

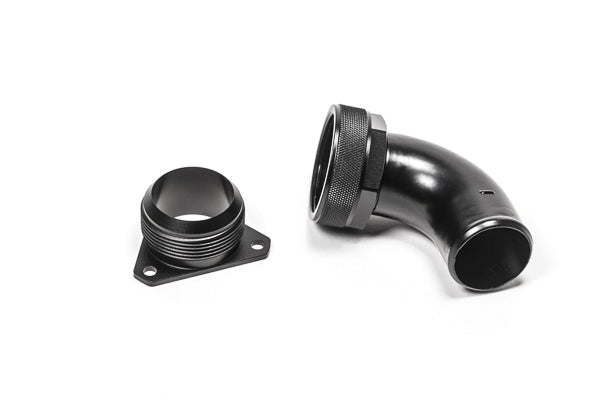

The Radium Engineering FCST-X remote fill neck (SKU 20-1047) bolts to the 3-bolt fill flange on a Radium FCST-X fuel cell surge tank and connects it to a remote, body-mounted filler such as one fitted to a guard. It uses a 24AN flanged neck with a 75-degree swivel elbow ending in a 1.5" hose barb, and the elbow can be clocked a full 360 degrees for flexible hose routing or removed to attach a 24AN filler hose.
An integrated flapper check valve provides rollover protection, and the kit includes a 1-7/8" aluminium AN wrench, a fuel-safe FKM O-ring seal and stainless steel hardware.
Note: The filler hose, cap and body-mounted remote filler (for example Radium 20-0505-V) are sold separately. Current FCST-X models all use the 3-bolt flange; the 6-bolt neck applies only to the discontinued FCST. Installation by a professional is recommended.
Pairs Well With
- Radium Engineering FCST-X Fuel Cell Surge Tank - Universal
- Radium Engineering FCST-X Fuel Cell Surge Tank - Universal - Walbro GSS342 Pumps Included
- Radium Engineering Fuel Cell Filler Hose (1.5in) - Universal
- Radium Engineering Remote Mount Vented Filler (1.5in) - Universal
Need help confirming fitment? Contact our team at sales@chicaneaustralia.com.au.
Vehicle Compatibility
| Make | Model | Chassis | Years | Engine / Notes |
|---|---|---|---|---|
| Universal | Radium FCST-X fuel cell surge tanks (3-bolt flange) | - | - | Remote filler setups with 1.5 in ID hose or 24AN filler hose |
Product
- Brand
- Radium Engineering
- Part number(s)
- 20-1047
Details
- Product
- Remote mount fill neck
- Mounting
- FCST-X 3-bolt flange
- Fitting
- 24AN, 75-degree swivel elbow (360-degree rotation)
- Hose connection
- 1.5" barb
- Rollover protection
- Integrated flapper check valve
- Seal
- FKM O-ring
- Hardware
- Stainless steel
- Tool included
- 1-7/8" aluminium AN wrench
Contents
- 24AN flanged fill neck
- 24AN hose end elbow with 1.5in barb
- 1-7/8in aluminium AN wrench
- FKM O-ring seal
- Stainless steel hardware
