Radium Engineering FCST-X Fuel Cell Surge Tank - Universal - Walbro GSS342 Pumps Included
The Radium Engineering FCST-X is a surge tank that installs inside a fuel cell, eliminating fuel starvation under hard cornering, braking and acceleration. A lift pump pulls fuel from the floor of the cell into a 2L surge canister, where up to three EFI pumps feed high-pressure fuel to the engine through three separate filtration chambers. These versions come pre-assembled with new Walbro GSS342 pumps and filters (SKU 20-1990-01, 20-1990-02, 20-1990-03).
Video
Radium's Fuel Cell Surge Tank (FCST) to the rescue!
Radium FCST & FuelSafe Fuel Cell - How It Works & Proper Installation
Three one-way FKM fill valves in the base of the surge tank open whenever the fuel level in the cell rises above the level in the canister, and returning fuel from the regulator is routed back into the canister to help keep it full. Excess fuel simply overflows back into the cell. Use the variant selector to choose one, two or three GSS342 surge pumps; every version includes one GSS342 lift pump.
Note: A fuel cell is not included. The cell must use a 6x10, 24-bolt fill plate flange and measure at least 196mm (7.7in) from the outer top face to the internal floor. The lift pump is packed loose so its height can be set to suit your cell. A fuel filler (3-bolt, 59.5mm PCD pattern) is sold separately, and a hose and/or filter must be connected to the VENT port. Installation by a professional is recommended.
Features
- 2L surge tank canister holding up to 3 surge pumps plus 1 lift pump
- Walbro GSS342 surge and lift pumps pre-installed with filters (lift pump packed loose)
- 3 one-way FKM fill valves, 355LPH each (1065LPH total)
- PUMP OUT port: 10AN ORB (7/8"-14) with 10AN ORB to 8AN male adapter supplied
- RETURN port: 8AN ORB (3/4"-16) with 8AN ORB to 6AN male adapter supplied
- VENT port: 12AN ORB (1-1/16"-12) with 8AN male vent fitting (20-0934) supplied
- Fuel level sender block-off plate and 2AN ORB plug in the level switch port as standard
Pairs Well With
- Radium Engineering FCST-X Spare Drop-In Pump Module - Universal
- Radium Engineering FCST-X Lift Pump Mounts - Universal
- Radium Engineering FCST-X 3-Bolt Direct Mount Fill Neck and Cap (Vented) - Universal
- Radium Engineering FCST-X Extension Kit (3.7in / 1.2L Capacity) - Universal
- Radium Engineering Fuel Cell Subharness Kit - Universal
Need help confirming fitment? Contact our team at sales@chicaneaustralia.com.au.
Product
- Brand
- Radium Engineering
- Fill Valves
- 3 x one-way FKM, 355LPH each (1065LPH total)
- Part number(s)
- 20-1990-01, 20-1990-02, 20-1990-03
- 1 Surge Pump + 1 Lift Pump – Part number
- 20-1990-01
- 2 Surge Pumps + 1 Lift Pump – Part number
- 20-1990-02
- 3 Surge Pumps + 1 Lift Pump – Part number
- 20-1990-03
Details
- Surge Tank Volume
- 2L
- Pump Capacity
- Up to 3 surge pumps + 1 lift pump
- Pumps Included
- Walbro GSS342
- Pump Outlet Port
- 10AN ORB (7/8"-14), 8AN male adapter supplied
- Return Port
- 8AN ORB (3/4"-16), 6AN male adapter supplied
- Vent Port
- 12AN ORB (1-1/16"-12), 8AN male fitting 20-0934 supplied
- Fuel Cell Requirement
- 6x10 24-bolt fill plate flange, min. 196mm (7.7in) deep
- Filler Flange Pattern
- 3-bolt, 59.5mm PCD

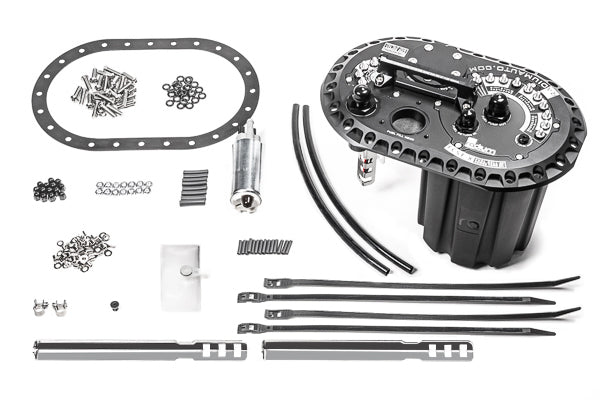

Contents
- FCST-X fuel cell surge tank
- Walbro GSS342 surge tank pump(s) with filters, pre-installed (1, 2 or 3 per variant)
- Walbro GSS342 lift pump (packed loose)
- 10AN ORB to 8AN male adapter fitting (pump out)
- 8AN ORB to 6AN male adapter fitting (return)
- 20-0934 8AN male vent fitting
- Fuel level sender block-off plate
- 2AN ORB plug (level switch port)
Vehicle fitment
Universal fit: this part suits any car. Check the specifications above for sizes and fittings.
