Radium Engineering Fuel Cell Filler Hose (1.5in) Universal

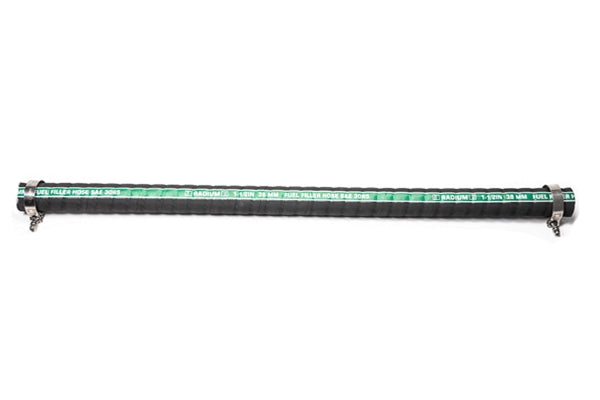

The Radium 20-0597 Fuel Fill Neck Hose Kit is a premium, 1.5in ID convoluted fuel hose designed to handle tight bends without kinking. Constructed from fuel-safe nitrile with dual embedded helical wires, it's compatible with all fuel types and ideal for body-mounted remote fillers. Supplied in a 3-foot (914mm) length with two stainless steel T-bolt clamps.

Key Features

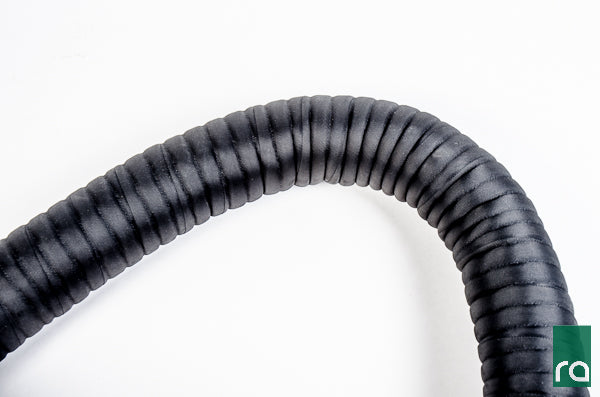

• 1.5in ID convoluted hose with reinforced bend resistance

• Fuel-safe nitrile tube with synthetic fabric and neoprene coating

• Two embedded helical wires prevent kinking

• SAE 30R5 rated; compatible with gasoline, ethanol, diesel, methanol, and E85

• Includes two 304 stainless steel T-bolt clamps

• Made in USA

Specifications

• Length: 3ft (914mm), cut to size

• Working Pressure: 20 psi

• Burst Pressure: 90 psi

• Minimum Bend Radius: 5in

• Temp Range: -40°F to 212°F

• Wall Thickness: 0.176in (4.47mm)

Note
Exercise caution when cutting — internal helical wires are sharp.

Radium Fuel Fill Neck Hose Kit – 1.5in, Clear Visualisation
Part No. 20-0602

Overview

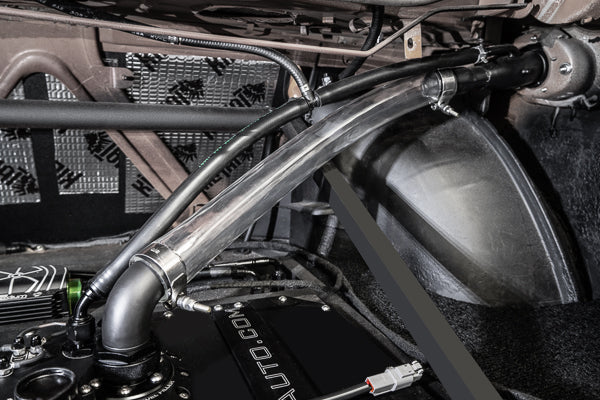

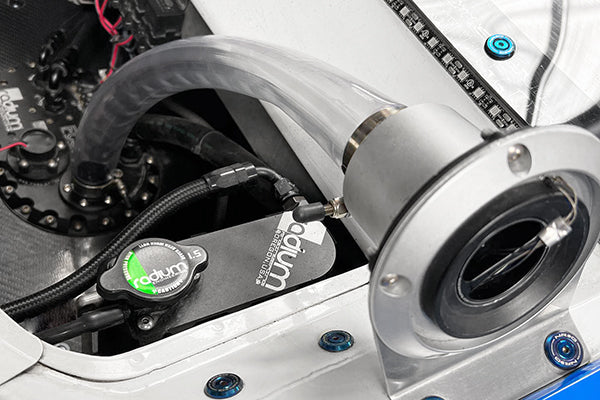

The Radium 20-0602 Clear Fuel Fill Neck Hose Kit is designed for applications requiring visual fuel flow during refueling. With a 1.5in internal diameter and transparent construction, it provides a visual cue of fuel movement. Recommended for setups that benefit from flow monitoring. Includes two stainless steel T-bolt clamps.

Key Features

• 1.5in ID clear fuel hose for visual fuel flow monitoring

• Flexible and easy to route with a large bend radius

• Compatible with gasoline, ethanol, diesel, and more

• Includes two 304 stainless steel T-bolt clamps

• Ideal for remote-mounted fillers requiring visual confirmation

Specifications

• Length: 3ft (914mm), cut to fit

• Max Pressure: 20 psi @ 72°F

• Minimum Bend Radius: 8in

• Temp Range: -20°F to 160°F

• Wall Thickness: 0.2in (5mm)

• Durometer: 60A

Note
Over time, clear hose may become cloudy depending on fuel type. Inspect regularly and replace as needed.
