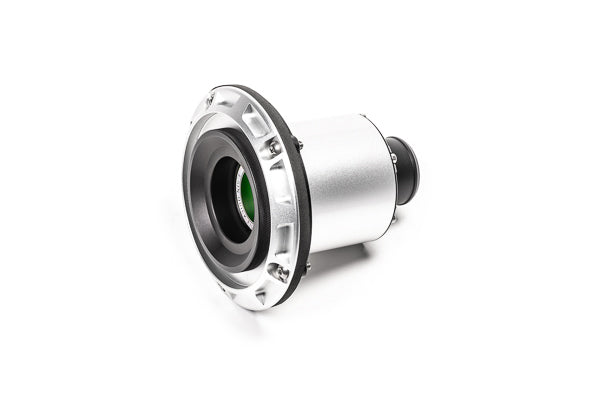

Radium Remote Mount Vented Filler – 1.5in

The Radium 20-1004-V is a remote-mount, vented dry break filler designed for installation on external body panels such as fenders. Featuring a 1.5in female dry break receiver and roll-over protection, this assembly allows quick and safe refuelling with a compatible male probe. The barbed outlet is interchangeable for different hose sizes or AN configurations.

Key Features

• 1.5in vented dry break receiver

• Roll-over protection built into the cap

• O-ring sealed 1.5in barb outlet – interchangeable by removing 6 screws

• Mounts via 5 × M5 bolts on 4.25in PCD

• Requires 77mm (3.03in) cutout

• Compatible with Radium 20-0496 dry break probe

• Fuel-safe for gasoline, E85, methanol, diesel, AV gas, and more

Specifications

• Flange OD: 4.75in

• Bolt Circle: 4.25in PCD

• Height: 4.08in (to barb)

• Hose ID: 1.5in

Included

• Vented female dry break receiver

• Aluminium housing and nut ring

• Stainless steel hardware

• Fuel-safe gasket

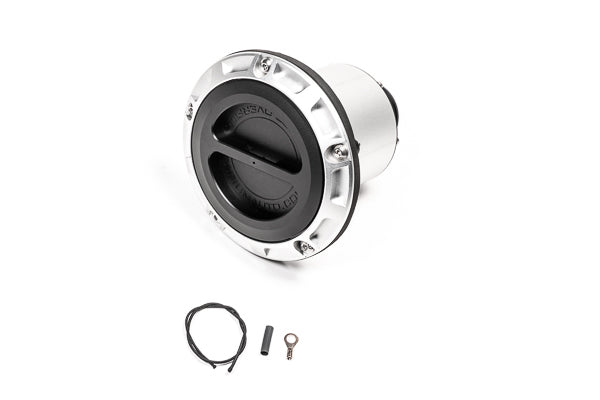

Radium Remote Mount Vented Standard Filler – 1.5in Barb
Part No. 20-1005-V

Overview
The Radium 20-1005-V is a remote-mount standard filler with vented cap and roll-over protection. Designed to mount externally to body panels, it includes a machined 1.5in hose barb and an interchangeable outlet system for custom plumbing setups. A cap tether is included, and the unit can be upgraded to a dry break using Radium 20-0549-V.

Key Features

• 1.5in vented standard fuel cap

• Built-in roll-over protection

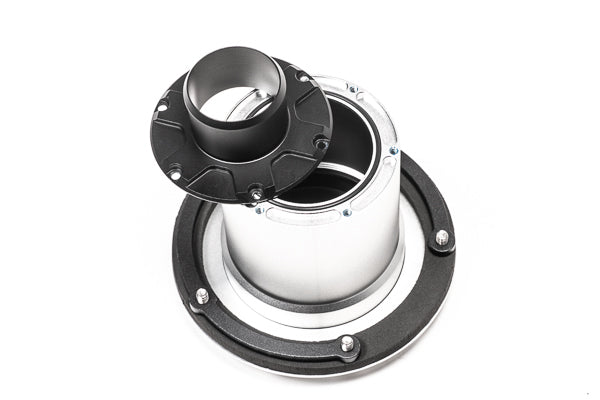

• O-ring sealed 1.5in barb – interchangeable by removing 6 screws

• Mounts via 5 × M5 bolts on 4.25in PCD

• Requires 77mm (3.03in) mounting hole

• Can be upgraded to dry break (20-0549-V)

• Fuel-safe for all common fuel types

Specifications

• Flange OD: 4.75in

• Bolt Circle: 4.25in PCD

• Height: 4.1in

• Hose ID: 1.5in

Included

• Vented filler cap

• Flanged fill neck with 1.5in barb

• Aluminium nut ring

• Ozone/flame-resistant gasket

• Stainless M5 bolts

• Cap tether components

Notes

• Does not include fuel tank connection adapters

• Hose and outlet upgrades sold separately
