Radium FCST-X Fuel Cell Surge Tank
The Radium FCST-X is a purpose-built surge tank designed for professional motorsport fuel cell setups where consistent fuel delivery under sustained high g-forces is non-negotiable. Radium Engineering are well regarded in the motorsport fuelling space for their precision machined, competition-grade components — and the FCST-X is no exception.
Video
Radium's Fuel Cell Surge Tank (FCST) to the rescue!
Radium FCST & FuelSafe Fuel Cell - How It Works & Proper Installation
This listing covers the Radium FCST-X Fuel Cell Surge Tank in five pump styles, supplied without pumps (SKUs 20-1990-00, 20-1992-00, 20-1991-00, 20-1993-00 and 20-1995-00). The Walbro F90000267/274/285/295 version is also available with Walbro F90000274 pumps fitted: one, two or three surge tank pumps plus one lift pump (SKUs 20-1992-01, 20-1992-02 and 20-1992-03). Choose the pump style and pump package from the variant selector. It is a universal fitment component designed to integrate with fuel cell installations in professional motorsport builds including road racing, endurance, and time attack applications.
On the pump-included versions the surge tank pumps come pre-installed. The lift pump is packed loose so its height can be set to suit your fuel cell.
Important: -6AN ORB fittings are required for installation and are not included. The fuel cell is sold separately, and so are the fuel pumps unless you choose a pump-included version.
Key Features
- CNC-machined billet aluminium construction with anodised finish
- Supports single or dual pump configurations
- Multiple -6AN ORB (O-Ring Boss) ports for versatile plumbing
- Integrated fuel level sender provision
- Compatible with petrol, E85, and alternative fuel types
- Universal fitment for fuel cell applications
Full application compatibility and installation notes are provided in the tabs above. Please confirm your fuel cell configuration and plumbing requirements before ordering.
Pairs Well With
- Radium Engineering FCST-X Lift Pump Mounts - Universal
- Radium Engineering FCST-X Spare Drop-In Pump Module - Universal
- Radium Engineering FCST-X 3-Bolt Direct Mount Fill Neck and Cap (Vented) - Universal
- Radium Engineering FCST-X Extension Kit (3.7in / 1.2L Capacity) - Universal
- Radium Engineering Fuel Cell Subharness Kit - Universal
Not sure if this surge tank suits your build? Contact our team at sales@chicaneaustralia.com.au for expert advice.
Vehicle Compatibility
Universal fitment — verify dimensions before ordering.
Product
- Brand
- Radium Engineering
- Type
- Fuel cell surge tank (FCST-X)
- Fill valves
- 3 x 1-way FKM, 355 LPH each (1065 LPH total)
- Part number(s)
- 20-1990-00, 20-1992-00, 20-1991-00, 20-1993-00, 20-1995-00, 20-1992-01, 20-1992-02, 20-1992-03
- Walbro GSS342/AEM 50-1200/50-1220 / Not Included – Part number
- 20-1990-00
- Walbro F90000267/274/285/295 / Not Included – Part number
- 20-1992-00
- Bosch BR540 or DW400 / Not Included – Part number
- 20-1991-00
- Ti Automotive E5LM / Not Included – Part number
- 20-1993-00
- External Pumps / Not Included – Part number
- 20-1995-00
- Walbro F90000267/274/285/295 / 1 Surge + 1 Lift Pump (F90000274) – Part number
- 20-1992-01
- Walbro F90000267/274/285/295 / 2 Surge + 1 Lift Pump (F90000274) – Part number
- 20-1992-02
- Walbro F90000267/274/285/295 / 3 Surge + 1 Lift Pump (F90000274) – Part number
- 20-1992-03
Details
- Surge canister volume
- 2L
- Pump capacity
- Up to 3 EFI pumps (or external pump version)
- Pump out port
- 10AN ORB (7/8-14), 8AN male adapter supplied
- Return port
- 8AN ORB (3/4-16), 6AN male adapter supplied
- Vent port
- 12AN ORB (1-1/16-12), 20-0934 rollover vent with 8AN male supplied
- Construction
- CNC machined billet aluminium, anodised
- Fuel compatibility
- Petrol, E85 and alternative fuels
- Pump-included versions
- 1, 2 or 3 Walbro F90000274 surge tank pumps pre-installed, plus 1 Walbro F90000274 lift pump packed loose (20-1992-01 / -02 / -03)
- Not included
- Fuel cell; fuel pumps on the Not Included versions
Contents

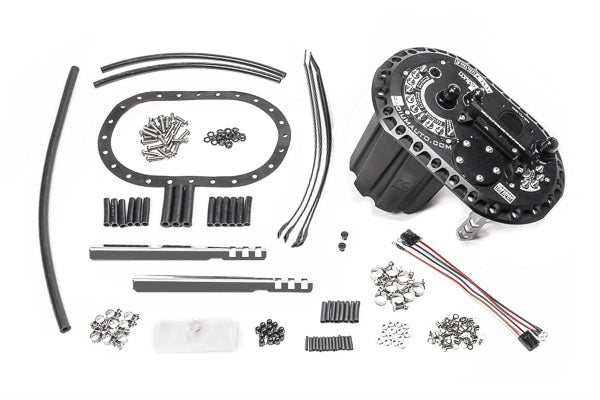

- Radium FCST-X fuel cell surge tank
- Pump-included versions: 1, 2 or 3 Walbro F90000274 surge tank pumps pre-installed, plus 1 Walbro F90000274 lift pump packed loose
