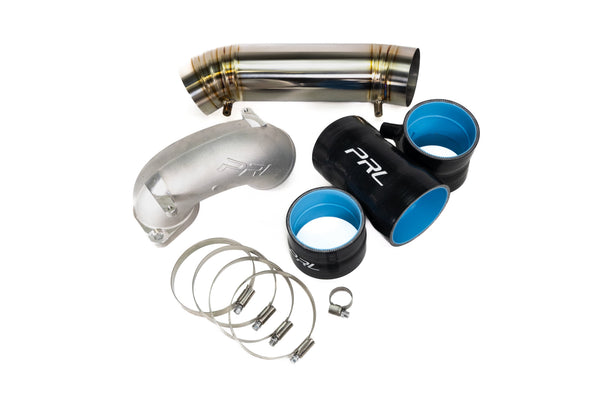

PRL Motorsports Titanium Turbocharger Inlet Pipe Kit Honda Civic Type R (FL5)

PRL Motorsports Titanium Turbocharger Inlet Pipe Kit - Honda Civic Type R (FL5)

This kit replaces the restrictive factory turbo inlet pipe on the FL5 Civic Type R with a larger, smoother path into the compressor. A cast aluminium inlet piece is gasket-matched to the 64mm compressor inlet and steps up to an 80mm OD titanium crossover pipe. PRL rates it at over 50% more airflow volume than the factory pipe, which helps bottom-end response and spool.

Note: This kit only works with the PRL High Volume Intake (rotomoulded or carbon); it does not suit the factory airbox. PRL states no ECU recalibration is needed. Installation by a professional is recommended.

Features

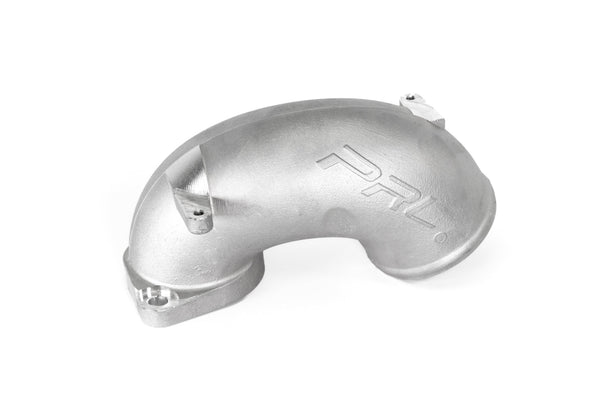

• Cast aluminium inlet piece gasket-matched to the 64mm ID compressor inlet
• 80mm OD / 78mm ID titanium crossover pipe
• Over 50% more airflow volume than the factory inlet pipe (PRL figure)

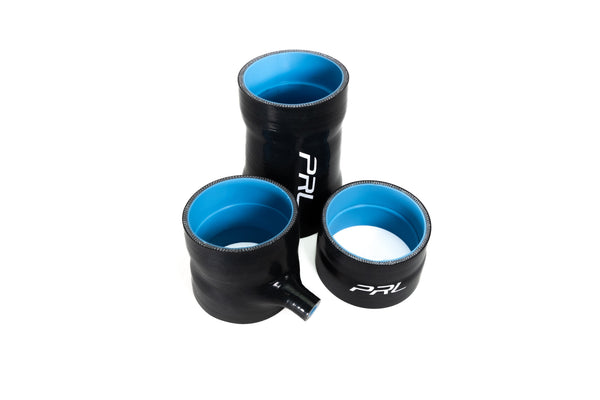

• High-temperature 4-ply silicone couplers
• 304 stainless steel interlocking worm clamps
• Suits all factory-fitment FL5 turbochargers

Pairs Well With

• PRL Motorsports High Volume Intake System - Honda Civic Type R (FL5)
• PRL Motorsports Silicone Intake Hose Kit - Suit High Volume Intake - Honda Civic Type R (FL5)
• PRL Motorsports Intercooler Charge Pipe Upgrade Kit - Honda Civic Type R (FL5)
• PRL Motorsports Intercooler Upgrade (Raw) - Honda Civic Type R (FL5)
• PRL Motorsports Turbocharger Gasket & Hardware Kit - Honda Civic Type R (FK8 / FL5)
• PRL Motorsports Titanium Turbocharger Inlet Pipe Only - Honda Civic Type R (FL5)
• PRL Motorsports x PTP Black Lava Turbo Blanket - Honda Civic Type R (FK8 / FL5)

Need help confirming fitment? Contact our team at sales@chicaneaustralia.com.au.
