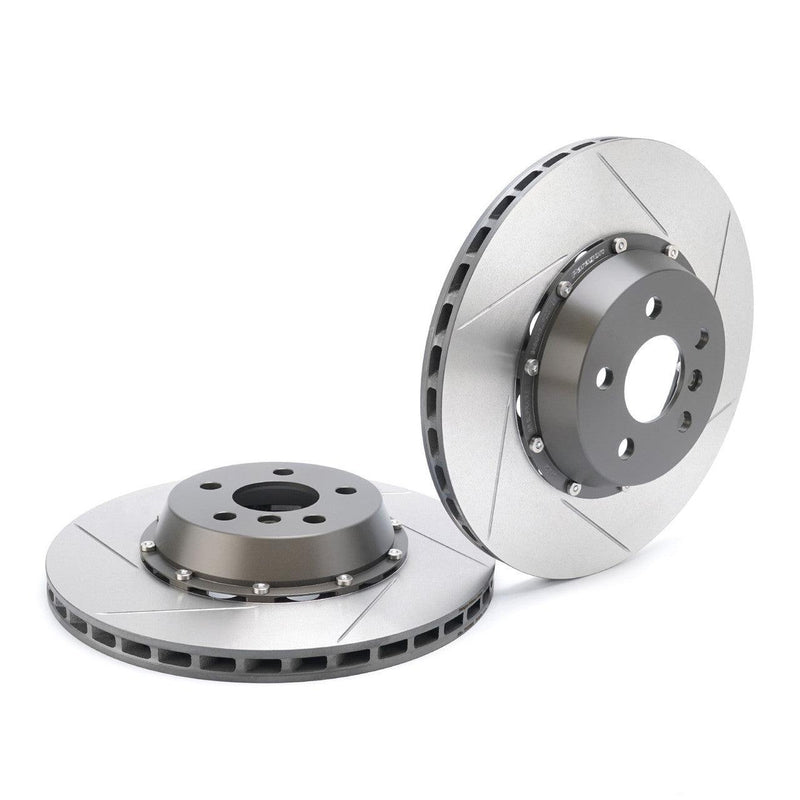

Paragon 2-Piece Rear Brake Rotor Pair – Toyota GR Supra Mk5 3.0 Premium / A91, BMW Z4 G29 / M Sport / M Performance G-Series | 345x24mm

Designed for spirited road use and track days, the Paragon 2-Piece Rear Rotors deliver improved heat management, reduced unsprung weight, and consistent braking performance. This 345 x 24mm rear rotor upgrade is a direct bolt-on fit for the Toyota GR Supra Mk5 3.0 Premium / A91 and BMW Z4 G29 / M Sport / M Performance G-Series models, preserving full OEM functionality with racing-grade construction.

Why Choose Paragon Rotors?

• Enhanced thermal performance for demanding driving conditions
• Reduces rear unsprung weight to improve handling balance
• Fully-floating 2-piece design resists heat-induced warping
• CBN precision machining ensures a smooth, flat braking surface

Key Features

• 345 x 24mm rear rotor size with directional ventilation vanes
• Up to 30% cooler operation than OEM rotors
• Slotted rotor face improves pad bite, disperses gases and water

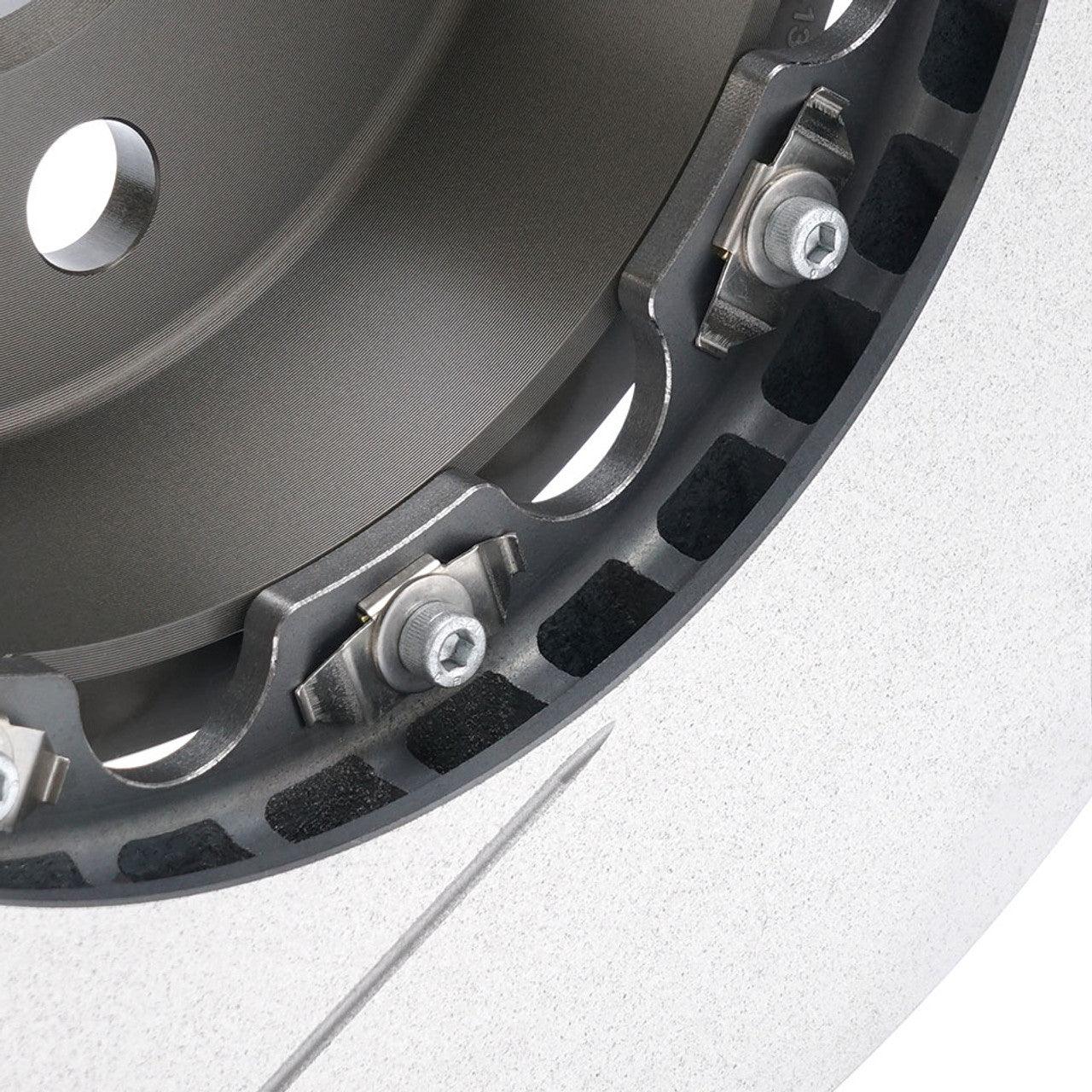

• Floating 2-piece construction with D-Bobbin (Short), 10-bolt configuration
• CM-250 high-carbon cast iron rotor rings for heat resistance and durability
• Heat-treated and CBN-machined to ensure flatness and reduce fade

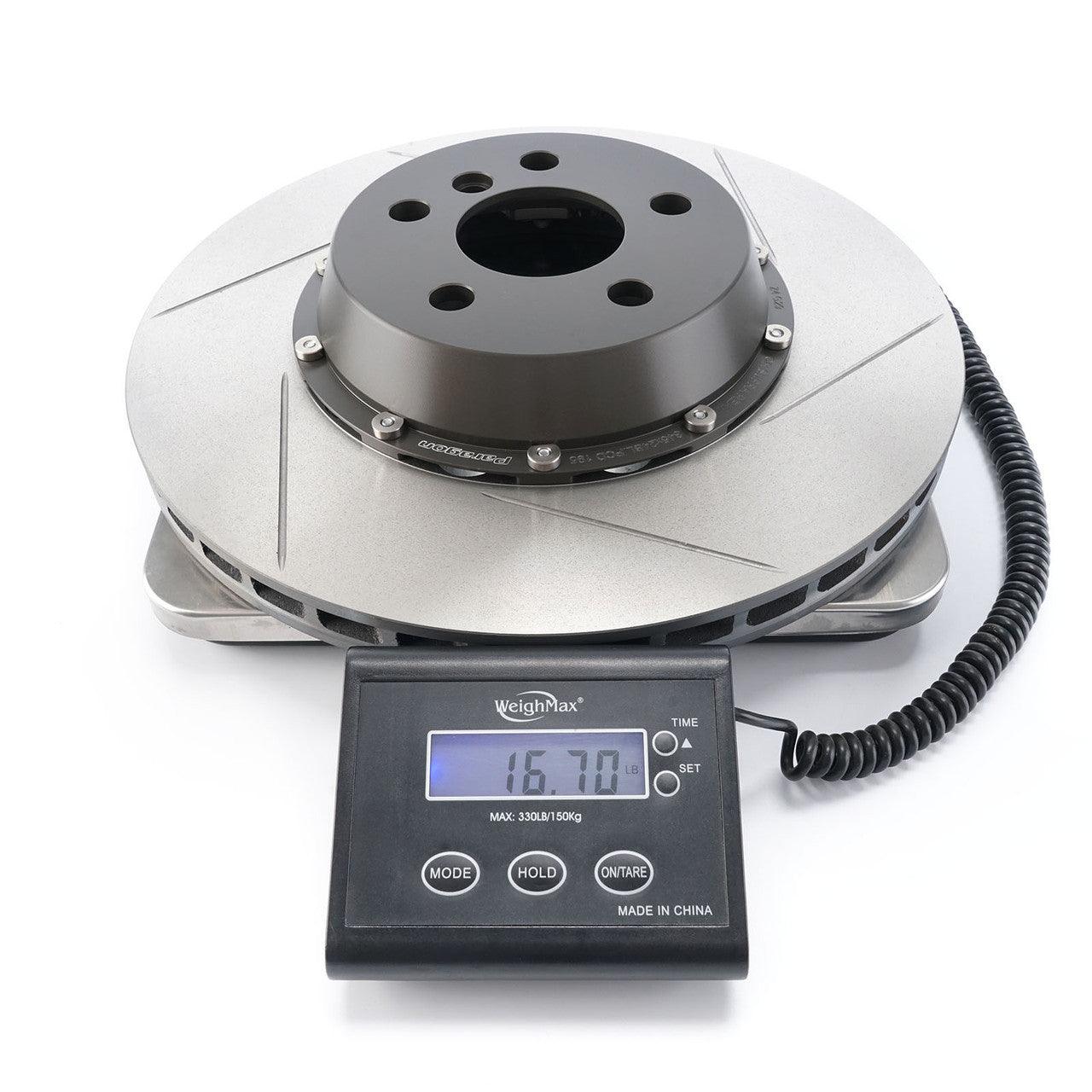

• Each rotor weighs 7.55 kg (16.7 lbs), saving 0.77 kg (1.7 lbs) per rotor vs. OEM

Construction

Rotor Rings

Paragon rotor rings are cast from CM-250 high-carbon alloy and heat-treated to prevent internal stress. CBN precision machining ensures even pad contact, reduced vibration, and reliable braking under load.

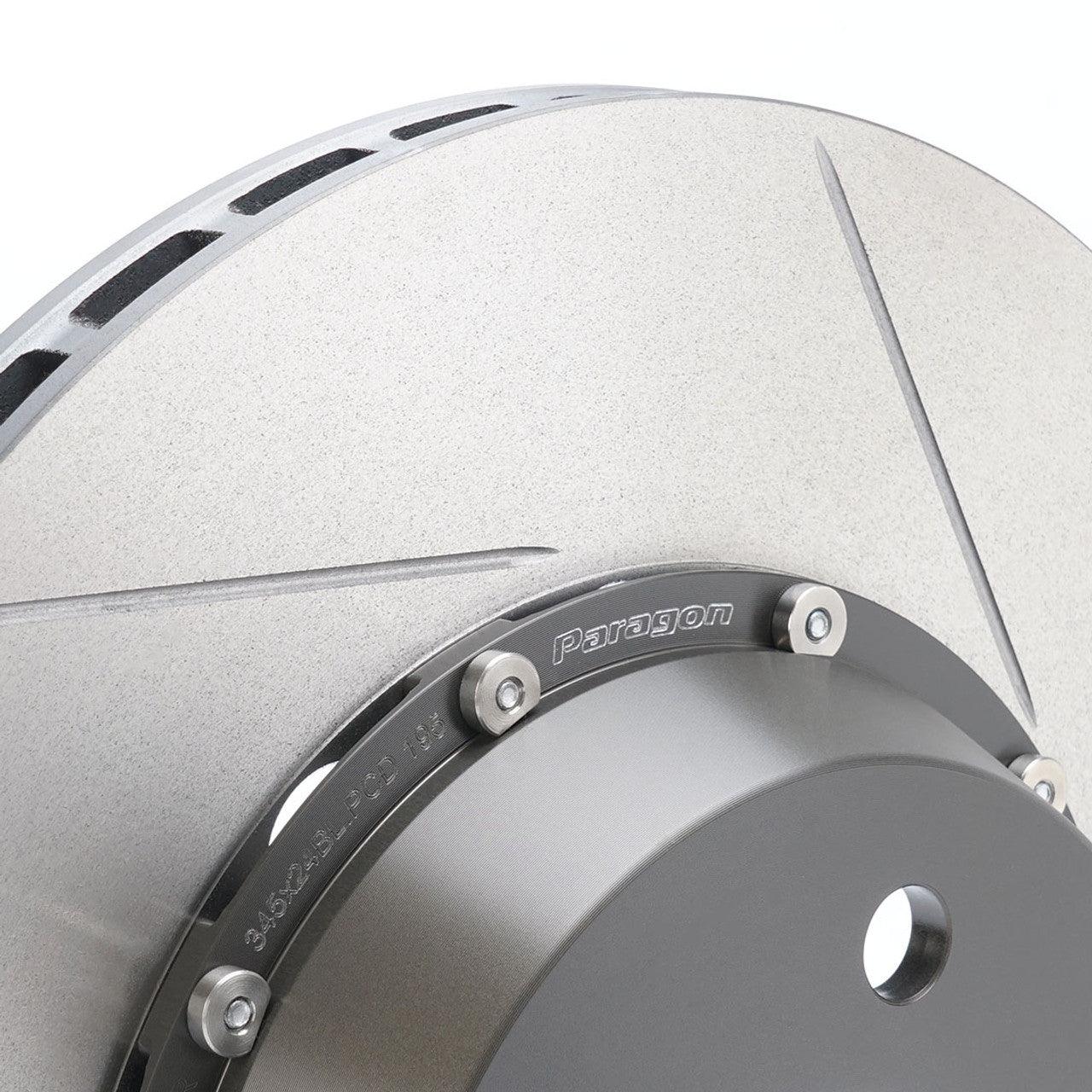

Aluminium Hats

The hats are CNC-machined from aerospace-grade 6061-T6 aluminium, then hard anodised to MIL-A-8625 Type III specification for maximum corrosion resistance and strength. Excess material is removed to lower weight without compromising integrity.

Finish Options

• Clear Hard Anodised: Resists discolouration under extreme heat – ideal for track use
• Black Dyed Hardcoat: May discolour above 260°C – suitable for mixed street/track use

Compatibility

• Toyota GR Supra Mk5 3.0 Premium / A91 – Rear
• BMW Z4 G29 M Sport / M Performance – Rear
• BMW M Sport G-Series models (select variants) – Rear

Fitment Notes

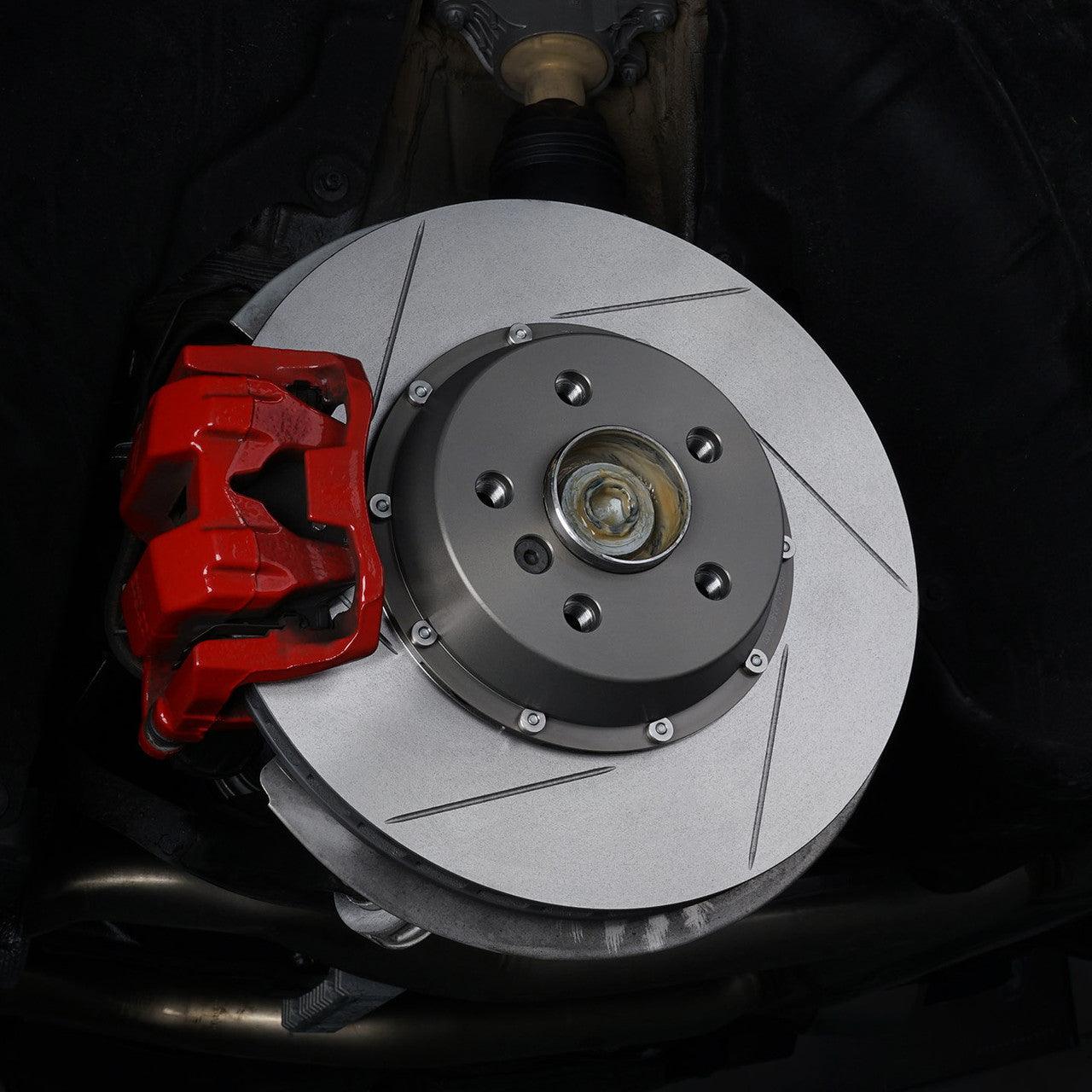

• Direct bolt-on fitment – no modifications required
• Maintains OEM brake bias, ABS, and brake system functionality
• Compatible with OEM and aftermarket pads of matching pad depth (D)

Technical Specifications
