ACUITY Adjustable Performance Shifter Honda Integra (DC5)

ACUITY Adjustable Performance Shifter - Honda Integra (DC5)

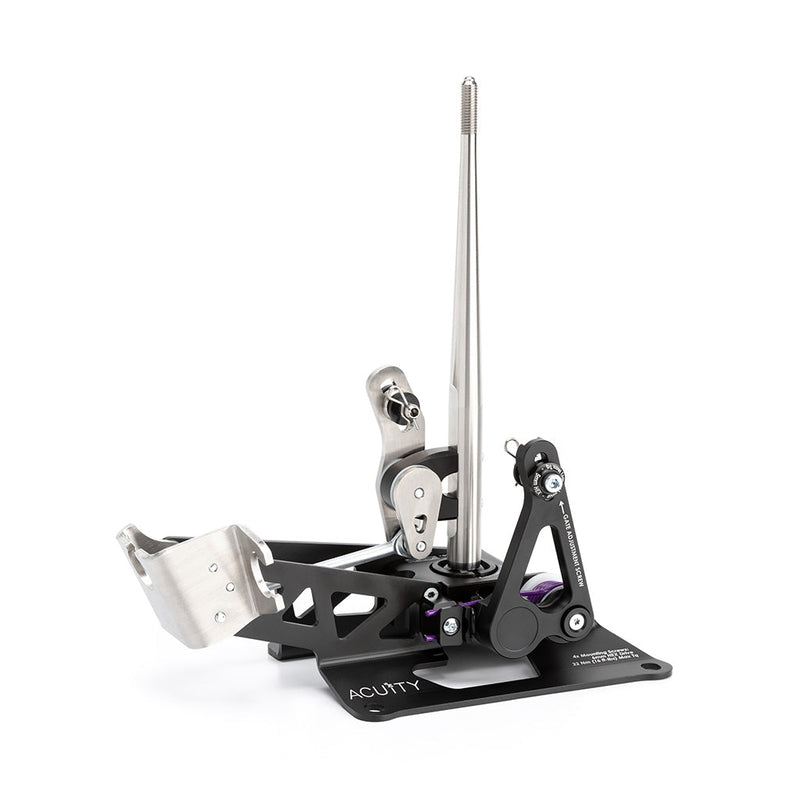

The ACUITY Adjustable Performance Shifter replaces the factory shifter in the DC5 Integra and fits under the factory console. It also suits K-swapped cars running a DC5 Integra gearbox or gear selector. Choose the 2-Way version for adjustable throw and gate spacing, or the 4-Way version, which adds knob height and knob position adjustment.

Video

ACUITY 4-way adjustable shifter for K-swaps: gear shift sound

ACUITY 4-way adjustable shifter: install in a DC5 chassis

Throw and gate spacing adjust independently, so you can set the H-pattern from a mild reduction through to a very short, narrow shift. The 2-Way gives 40% to 50% shorter throw and 18% to 36% narrower gates. The 4-Way gives 34% to 55% shorter throw, 9% to 41% narrower gates, knob height 30mm higher or lower than stock and knob position anywhere within a 52mm circle.

The frame combines aluminium and stainless steel for stiffness without extra weight. A large aluminium pivot ball runs in a wear-compensating spherical race, the rocker joint is upgraded over the factory design to avoid the play that develops in stock shifters, and a thick over-wound spring gives about three times the factory centring force. Expect a firmer, more direct shift with more feedback from the gearbox, and take time to tune the throw and gate before refitting the console.

Note: Suits the manual DC5 Integra. K-swaps need a DC5 Integra gearbox or gear selector and an adapter plate to mount the shifter to the chassis (sold separately). Works with M10x1.5 and OEM Honda shift knobs. Installation by a professional is recommended.

Features

• 2-Way: 40% to 50% shorter throw, 18% to 36% narrower gates
• 4-Way: 34% to 55% shorter throw, 9% to 41% narrower gates
• 4-Way: knob height 30mm higher or lower than stock, position within a 52mm circle
• About 3x the factory centring force for a quick, quiet return to centre
• Aluminium and stainless steel frame for high stiffness
• Wear-compensating, lubricated spherical joints
• Fits under the factory DC5 console
• Fits M10x1.5 and OEM Honda shift knobs

Kit Contents

• 1 x ACUITY 2-way or 4-way adjustable performance shifter
• 4 x M8 class 12.9 shifter mounting screws
• 4 x M8 aluminium shifter mounting washers

Pairs Well With

• ACUITY K-Swap Shifter Adapter Plate - Honda Civic (EF / EG / EK) / Integra (DA / DB / DC) - DC5 Shifters
• ACUITY K-Series Transmission Select Springs - Honda Civic Type R (EP3 / FN2 / FD2) / Integra (DC5)
• ACUITY Interior Panel and Trim Removal Tools - Universal

Need help choosing between the 2-Way and 4-Way? Contact our team at sales@chicaneaustralia.com.au.
