ACUITY K-Swap Shifter Adapter Plate Honda Civic (EF / EG / EK) / Integra (DA / DB / DC) DC5 Shifters

ACUITY K-Swap Shifter Adapter Plate - Honda Civic (EF / EG / EK) / Integra (DA / DB / DC) - DC5 Shifters

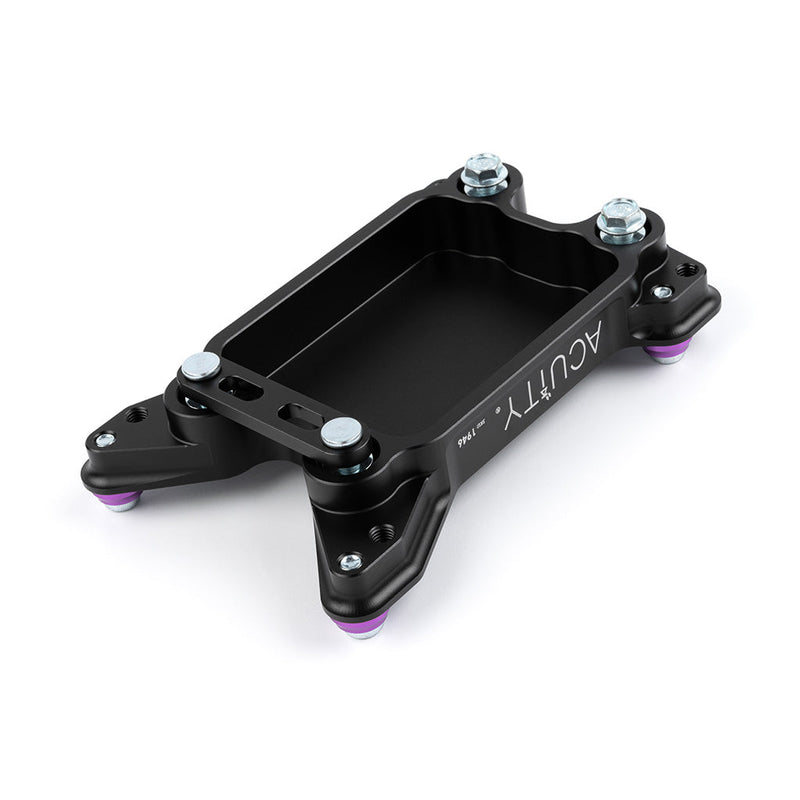

The ACUITY K-Swap Shifter Adapter Plate lets you mount a DC5 Integra shifter, factory or aftermarket, in a 1988 to 2000 Civic (EF, EG, EK) or 1990 to 2001 Integra (DA, DB, DC) that has been converted to a K-series engine and gearbox. Pair it with DC5 Integra shifter cables to run the cable-shift K-series gearbox from the original tunnel position.

The plate is machined from 6061-T6 aluminium and black anodised. It bolts to the centre tunnel with two screws and a stud bracket, all fitted from underneath, so one person can install it without loading the factory weld nuts on manual cars. The plate can be flipped, and with two shifter bolt patterns that gives four mounting positions and up to 40mm of fore and aft adjustment.

The design assumes the shifter cables pass through the firewall close to where it meets the tunnel. Some builders use the old heater core hole, while others cut a new hole near the tunnel so they can keep the heater.

Note: Accepts DC5 Integra shifters and DC5 shifter cables (factory or aftermarket); EP3 Civic Type R shifters do not fit. Suits DC5 Integra and EP3 Civic Type R gearboxes. Not for K20C turbo swaps (use the ACUITY 1950 plate). Manual-chassis cars need two 10mm holes drilled; auto-chassis cars need four 10mm holes and some sheet metal ground back. Installation by a professional is recommended.

Features

• Mounts a DC5 Integra shifter in a K-swapped EF, EG or EK Civic or DA, DB or DC Integra
• 6061-T6 aluminium with a black anodised finish
• Plate weighs about 440 g
• Reversible plate with two shifter bolt patterns for four mounting positions
• Up to 40mm of fore and aft shifter adjustment
• Fitted from under the tunnel with a stud bracket, so one person can install it
• Self-adhesive foam seal for manual-chassis cars

Kit Contents

• 1 x ACUITY shifter adapter plate
• 1 x stud bracket
• 2 x M8x1.25 hex flange screws
• 8 x M8x1.25 flange nuts
• 4 x M8 aluminium shifter mounting washers
• 4 x M8x1.25 socket cap screws (20mm)
• 4 x M8x1.25 socket cap screws (30mm)
• 1 x self-adhesive foam seal

Pairs Well With

• ACUITY Adjustable Performance Shifter - Honda Integra (DC5)
• ACUITY Shifter Cable Adapter Bracket - Honda Civic Type R (FN2) - FK8 Shifter Swap

Need help planning the shifter setup for your K-swap? Contact our team at sales@chicaneaustralia.com.au.
