Radium Engineering Fluid Lock Dual Catch Can Kit Toyota GR86 / Subaru BRZ (ZN8 / ZD8)

Radium Engineering Fluid Lock Dual Catch Can Kit - Toyota GR86 / Subaru BRZ (ZN8 / ZD8)

This Radium Engineering dual catch can kit is a vehicle-specific solution for the 2022+ Toyota GR86 and Subaru BRZ with the FA24 engine. It covers both the PCV and CCV systems, drawing oil and water condensation out of the crankcase gases before they reach the intake to reduce oil and carbon deposits on the intake, throttle body and manifold.

Video

GR86/BRZ Radium Dual Catch Can Install! 🛢️

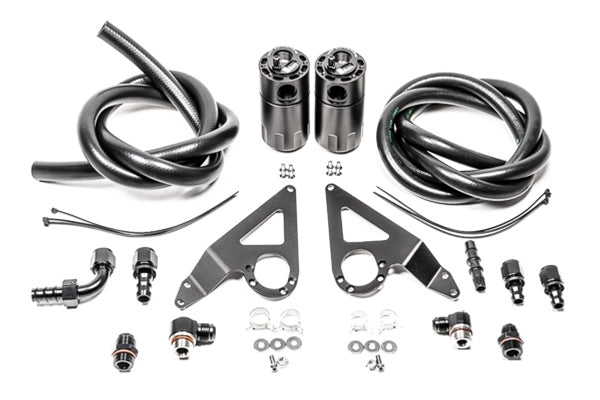

Both cans are closed-loop and fully sealed, so nothing vents to atmosphere and oil vapour is kept out of the cabin. Each can has internal baffling and an O-ring sealed dipstick, and Radium's Fluid Lock design stops the reservoir overfilling and traps collected fluid until it is emptied. Custom brackets, pre-cut hoses and all fittings and hardware are included for a bolt-in install.

Note: Collection rates vary between vehicles – check the dipsticks after 3–4 weeks of driving to set your emptying interval. PCV cans typically collect more than CCV cans. Installation by a professional is recommended.

Features

• Dual Fluid Lock catch cans for the PCV and CCV systems
• Closed-loop, sealed system
• Internal baffling for oil separation
• O-ring sealed dipsticks
• Fluid Lock hose fittings – no hose clamps needed
• Black anodised aluminium construction
• Vehicle-specific brackets, pre-cut hoses, fittings and hardware included
