Radium Engineering Fuel Hanger – Subaru BRZ/GR86 2022+

$1,047.00
SKU: 20-1074
Quantity:
Temporarily Out of Stock
Estimated shipping: 2-3 Days
Need it sooner? Contact us and we’ll see what we can do.

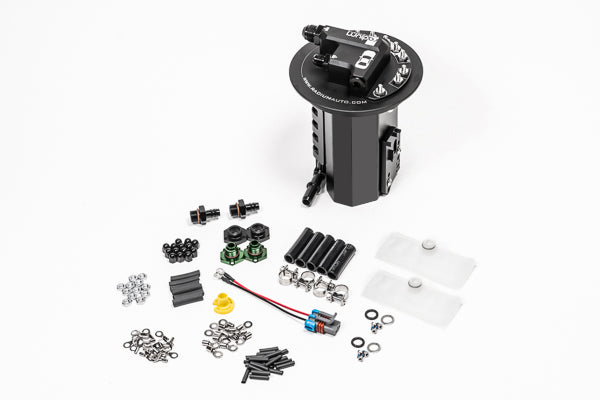

This in-tank fuel pump hanger is designed specifically for the 2022+ Subaru BRZ and Toyota GR86 fuel tanks and is compatible with one or two aftermarket fuel pumps. It replaces the OEM pump module, eliminates restrictive components, and integrates performance upgrades for high-power applications.

Fuel Pump Compatibility
Compatible with the following brushed and brushless fuel pumps:

  • Ti Automotive Walbro F90000267

  • Ti Automotive Walbro F90000274

  • Ti Automotive Walbro F90000285

  • Deatschwerks DW440 (brushless)

  • Deatschwerks DW810 (brushless)

  • Fuelab 49614 (brushless)

  • Protec 11928 (brushless)

*Sock filters included for Walbro pumps.
**Brushless pump filters supplied by manufacturer.

Features

  • 8AN ORB to 8AN male pump-out fitting

  • 6AN ORB to 6AN male return fitting

  • Collector box with 1-way 355LPH fill valve

  • Venturi jet pump siphon

  • High current electrical connections

  • Twin fuel pump compatibility

  • Brushless pump compatibility

  • Anodized fuel level sender mount

  • Stainless hardware and clamps

  • Single merged fuel pump outlet

  • Alternative fuel compatibility (E85, Methanol, etc.)

  • Anti-rotation electrical terminals

Preventing Fuel Starvation
The one-piece collector box holds fuel around the pump(s) and integrates a 1-way 355LPH fill valve. Fuel returning from the regulator also replenishes the box, preventing starvation even under high-load driving.

Plumbing Ports and Fittings

  • Pump-out port: 8AN ORB (3/4"-16), includes 8AN male fitting

  • Return port: 6AN ORB (9/16"-18), includes 6AN male fitting

Venturi Jet Pump Notes

  • Redesigned to avoid return-line pressure buildup

  • Efficient scavenging without impacting fuel pressure

  • Consumes 15–45 LPH depending on pressure

  • Use a check valve if pressure must be held after shutoff (included in plumbing kit)

Fuel Pressure Notes

  • Eliminates OEM fuel pressure regulator

  • Requires aftermarket FPR (included in plumbing kit)

Filtration Notes

  • Eliminates OEM post-pump filter

  • Requires low-micron external filter (included in plumbing kit)

Wiring Notes

  • OEM wiring can be used for single pump

  • For dual or brushless setups, upgrade wiring

  • Universal wiring kits sold separately
