Radium Engineering Fuel Pump Hanger - Toyota Chaser/Mark II/Cresta (JZX90/JZX100) - Single/Dual Pump
The Radium Engineering 20-0940 fuel pump hanger is a drop-in replacement for the factory in-tank fuel pump module in the Toyota Chaser, Mark II and Cresta (JZX90 and JZX100). It runs one or two high-flow aftermarket pumps, including brushless units, to supply the fuel needed for serious 1JZ and 2JZ power.
The feed port is 10AN ORB (7/8-14) and the return port 6AN ORB (9/16-18), with multiple adapter fittings supplied to reconnect to the OEM fuel lines. When a second pump is fitted, an SAE quick connector snaps into the underside of the fuel hat, and later models with an inverted-flare feed line get a replacement PTFE feed hose. High-current stainless electrical studs are hermetically sealed and fuel-proof, with non-conductive anodised acorn nuts and ETFE-insulated in-tank wiring.
Note: Fuel pumps are sold separately. Compatible pumps include Walbro F90000267/274/285/295 and GSS342, AEM 50-1200 and Ti Automotive BKS1001 (sock filters included), plus Bosch BR540, Deatschwerks DW400/DW440, Protec 11928 and Fuelab 49614 (socks supplied with the pump). A relay kit such as Radium 17-0031 is recommended to drive the pumps. The optional 20-0941 collector add-on suits single 39mm pump setups. Installation by a professional is recommended.
Features
- Drop-in OEM replacement – no cutting or fabrication
- Supports 1 or 2 aftermarket pumps, including brushless
- 10AN ORB feed port and 6AN ORB return port
- OEM line adapter fittings, SAE quick connector and PTFE feed hose included
- Hermetically sealed high-current stainless electrical studs
- Anodised aluminium with stainless steel hardware
- Fuel-resistant tubing and ETFE wiring
- Compatible with petrol, methanol, ethanol and E85
Pairs Well With
- Radium Engineering Single Pump Fuel Collector Add-On - Toyota Chaser / Mark II / Cresta (JZX90/JZX100)
- Radium Engineering Fuel Pump Clamp - Chevrolet Corvette (C5/C6/C7) / Toyota Chaser (JZX90/JZX100) - 41-43mm
- Radium Engineering Fuel Rail - Toyota Supra / Soarer (1JZ-GTE VVTi)
- Radium Engineering Top Feed Fuel Rail Conversion - Toyota Supra / Soarer (1JZ-GTE Non-VVTi)
- Radium Engineering High Flow Inline Fuel Filter - Universal
Need help confirming fitment? Contact our team at sales@chicaneaustralia.com.au.
Vehicle Compatibility
| Make | Model | Chassis | Engine |
|---|---|---|---|
| Toyota | Chaser | JZX90 | 1JZ, 2JZ |
| Toyota | Chaser | JZX100 | 1JZ, 2JZ |
| Toyota | Cresta | JZX90 | 1JZ, 2JZ |
| Toyota | Cresta | JZX100 | 1JZ, 2JZ |
| Toyota | Mark II | JZX90 | 1JZ, 2JZ |
| Toyota | Mark II | JZX100 | 1JZ, 2JZ |
Product
- Brand
- Radium Engineering
- Part number(s)
- 20-0940
Details
- Pump capacity
- 1 or 2 pumps (brushed or brushless)
- Feed port
- 10AN ORB (7/8-14) female
- Return port
- 6AN ORB (9/16-18) female
- Construction
- Anodised aluminium, stainless steel hardware
- In-tank wiring
- ETFE insulated
- Compatible pumps
- Walbro F90000267/274/285/295, GSS342; AEM 50-1200; Ti BKS1001; Bosch BR540; DW400; DW440; Protec 11928; Fuelab 49614
- Fuel compatibility
- Petrol, methanol, ethanol, E85

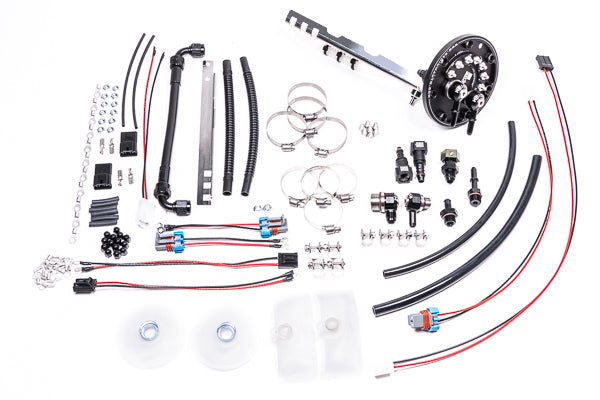

Contents
- Fuel pump hanger assembly
- OEM fuel line adapter fittings
- SAE quick connector (for second pump)
- Replacement PTFE feed hose (inverted-flare models)
- Pump sock filters (selected pumps)
- Electrical hardware and ETFE in-tank wiring
