Radium Engineering Single Pump Fuel Collector Add-On Toyota Chaser / Mark II / Cresta (JZX90/JZX100)

Radium Engineering Single Pump Fuel Collector Add-On - Toyota Chaser / Mark II / Cresta (JZX90/JZX100)

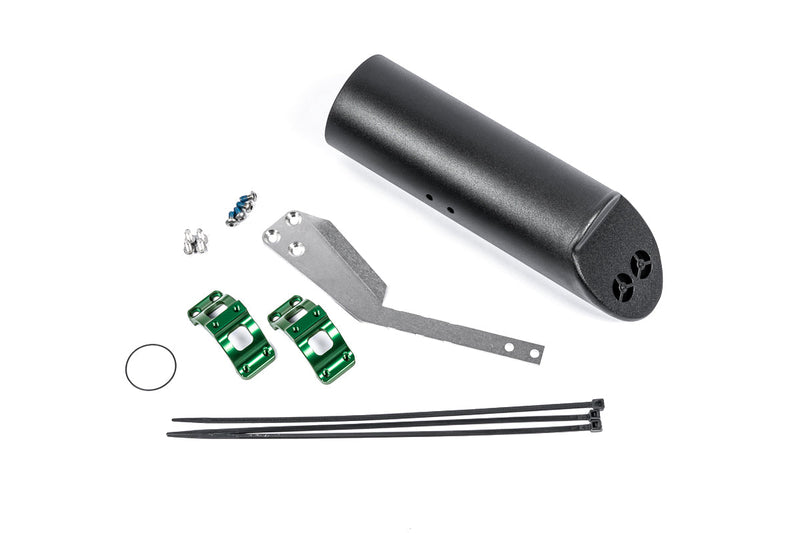

The Radium Engineering single pump fuel collector add-on (SKU 20-0941) fits a collector around the pump on Radium's 20-0940 fuel pump hanger for the Toyota Chaser, Mark II and Cresta. It adds fuel starvation protection, and is also the answer when the factory basket has broken off and is no longer attached to the tank.

The collector is designed to hold as much fuel as possible and is mounted at an angle to trap fuel under hard acceleration. Two one-way fill valves flow 355LPH each (710LPH total), and all fuel returning from the regulator is fed straight into the collector. It can be used together with the OEM basket for extra protection and is shaped to pass through the small factory tank access hole.

Note: Requires the Radium 20-0940 Fuel Pump Hanger (sold separately) and allows the use of one fuel pump only. Compatible with 39mm diameter fuel pumps only. Installation by a professional is recommended.

Features

• Angled collector traps fuel under heavy acceleration
• Two 1-way fill valves, 355LPH each (710LPH total)
• All regulator return fuel feeds the collector
• Works with or without the OEM basket
• Fits through the OEM fuel tank access hole
• Single pump only - 39mm diameter pumps

Need help confirming fitment? Contact our team at sales@chicaneaustralia.com.au.
