Radium Engineering High Flow Inline Fuel Filter - Universal
The Radium Engineering High Flow Fuel Filter is a universal inline filter for high-performance fuel systems that need big flow capacity and excellent filtration. Its large 4.2" x 1.75" element is one of the biggest available, delivering long service life with negligible pressure drop for low- and high-horsepower builds alike, on carburetted or EFI systems.

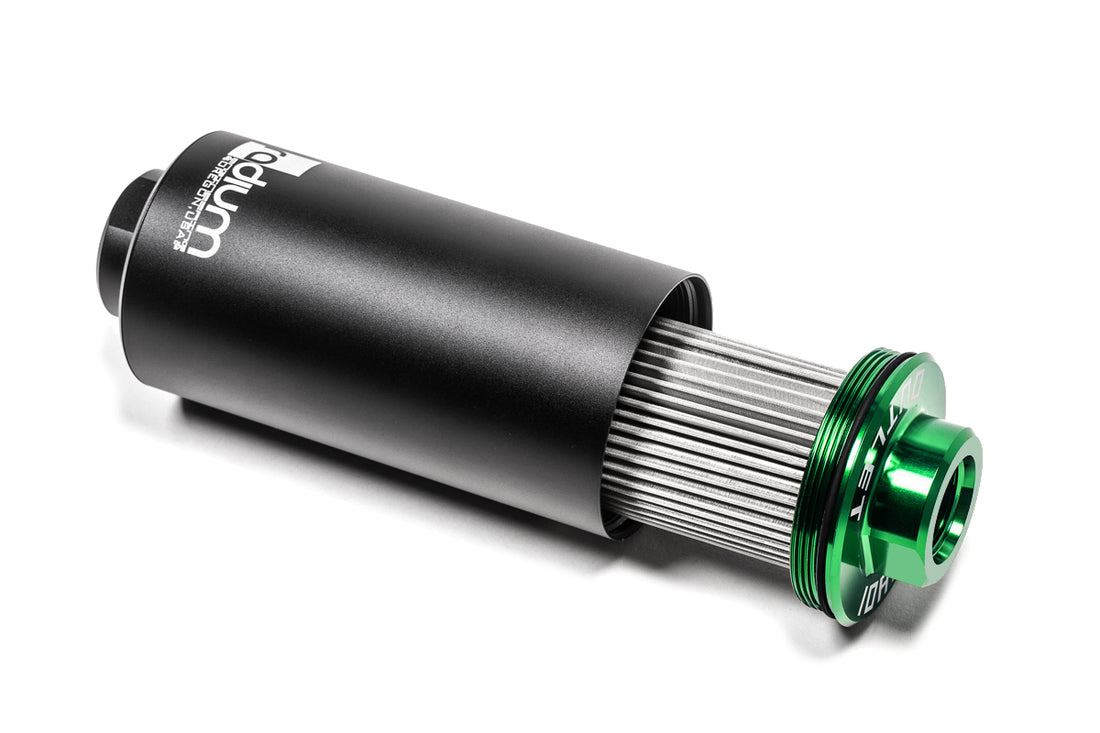

The three-piece housing is CNC machined from 6061 aluminium with a Type-II anodised finish, sealed with FKM O-rings and fitted with a stainless steel internal support core that stops the element collapsing at high flow. Both removable end caps have 10AN ORB female ports, and the filter fully disassembles for inspection and element changes. Choose your element from the variant selector: 10-micron stainless (20-0220-03, reusable and EFI-safe), 100-micron stainless (20-0220-04, ideal as a pre-filter for external pumps) or 6-micron microglass (20-0220-05, high-efficiency EFI filtration).
Note: Stainless elements can be cleaned and reused; microglass elements are not reusable. Replacement elements and 10AN ORB fittings are sold separately. Installation by a professional is recommended.
Features
- High flow with minimal pressure loss
- Large 4.2" x 1.75" element for extended service intervals
- Three-piece CNC-machined 6061 aluminium body, Type-II anodised
- FKM O-ring seals
- Stainless steel internal support core
- 10AN ORB female ports
- Rated to 150psi
- Suits petrol, diesel, ethanol, methanol and E85
Pairs Well With
- Radium Engineering Replacement Fuel Filter Element - Universal
- Radium Engineering Fuel Filter Body O-Ring Pair - Universal
- Radium Engineering 60mm 2-Piece Clamp Mounting Bracket - Universal - Single
- Radium Engineering Single Pump Fuel Surge Tank (FST) - Universal
Need help confirming fitment? Contact our team at sales@chicaneaustralia.com.au.
Product
- Brand
- Radium Engineering
- Element size
- 4.2" x 1.75"
- Part number(s)
- 20-0220-03, 20-0220-04, 20-0220-05
- Stainless - 10 Micron – Part number
- 20-0220-03
- Stainless - 100 Micron – Part number
- 20-0220-04
- Microglass - 6 Micron – Part number
- 20-0220-05
Details
- Product
- High flow inline fuel filter
- Body
- 3-piece CNC-machined 6061 aluminium, Type-II anodised
- Ports
- 10AN ORB female (both ends)
- Element options
- 10 micron stainless, 100 micron stainless, 6 micron microglass
- Seals
- FKM O-rings
- Maximum pressure
- 150psi
- Fuel compatibility
- Petrol, diesel, ethanol, methanol, E85
- Application
- Carburetted and EFI
Contents
- High flow fuel filter housing
- Filter element (per variant)
Vehicle fitment
Universal fit: this part suits any car. Check the specifications above for sizes and fittings.
| Make | Model | Chassis | Years | Versions | Engine | Brakes | Position |
|---|
Can’t see your car? Ask us and we’ll check fitment for you.
