Radium Engineering Fuel Hanger – Honda Civic Type R FK8 (2017–2021)

he Radium Engineering Fuel Hanger for the Honda Civic Type R FK8 (2017–2021) is a high-performance, drop-in solution designed for serious street and motorsport builds. Compatible with 1, 2, or 3 fuel pumps, this billet aluminium assembly replaces the factory unit while retaining all OEM emissions ports and the factory fuel level sender. It ensures fuel delivery remains stable under extreme conditions and supports a wide range of pump configurations, including brushless options.

Compatibility:

• 2016+ Honda Civic (all variants)
• 2017–2021 Honda Civic Type R (FK8)
• *Excludes 2023+ FL5 Civic Type R

Fuel Pump Compatibility:

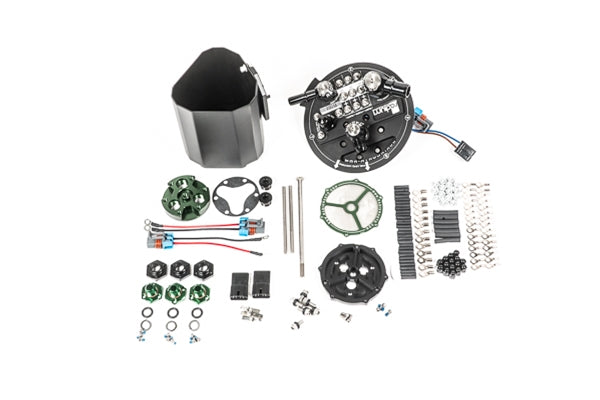

P/N: 20-1080

• AEM 50-1220
• Deatschwerks DW440 Brushless

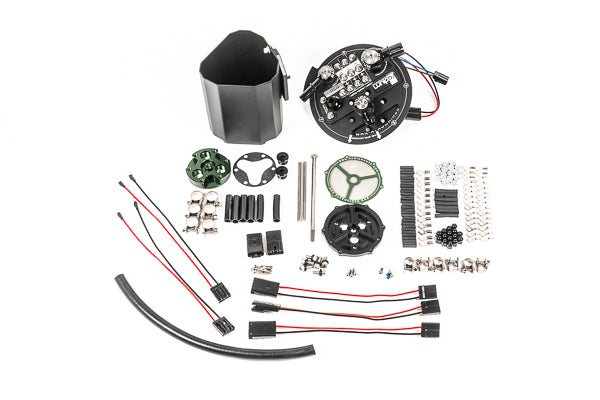

P/N: 20-1082

• Ti Automotive Walbro F90000267
• Ti Automotive Walbro F90000274
• Ti Automotive Walbro F90000285

To use the following brushless pumps, the 13-1187 Triple Pump Base with 12mm inlets must be purchased separately:

• Protec 11928
• Fuelab 49614
• Deatschwerks DW810

Fuel Starvation Protection:

• Integrated collector box surrounds pump inlets to trap fuel
• Three one-way fill valves allow in-flow only (355 LPH per valve)
• Collector constantly replenished by return fuel from regulator

Fittings:

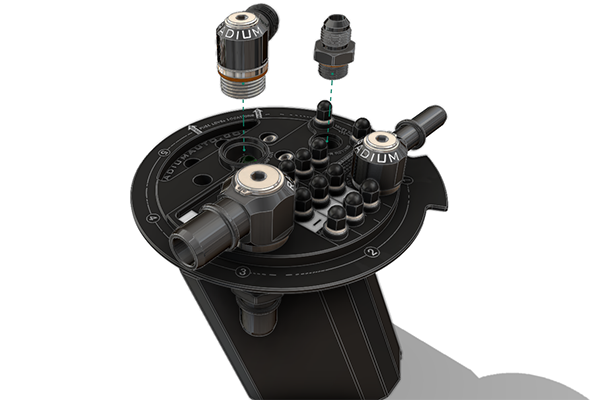

• Fuel pump outlet: 10AN ORB female (includes low-profile 8AN male fitting)
• Fuel return: 6AN ORB female (includes 6AN male fitting)

Electrical:

• Stainless steel serviceable studs with anti-rotation design
• Sealed and fuel-resistant connections with ETFE insulation
• Non-conductive anodised acorn nuts included

Important Notes:

• Single pump setups may reuse OEM wiring, but upgraded wiring is recommended
• Multiple pump configurations require dedicated relays and fuses for each pump
• Universal fuel pump wiring kits available separately

Key Features:

• Drop-in installation for FK8 platform
• Supports 1–3 pumps including brushless types
• Aluminium and stainless steel construction
• Merged 10AN ORB outlet for simplified plumbing
• Gasoline, methanol, and E85 compliant
• High-current, race-proven electrical hardware
