Radium Engineering Fuel Hanger Plumbing Kit
Not sure which option fits your application? Contact Us - we're happy to help.
Radium Engineering Fuel Hanger Plumbing Kit - Honda Civic Type R (FK8)
This Radium Engineering plumbing kit completes a Radium fuel pump hanger install on the 2017-2021 Honda Civic Type R (FK8), with the lines, fittings, regulator and hardware to feed the factory direct-injection system and leave room for a future port-injection upgrade.

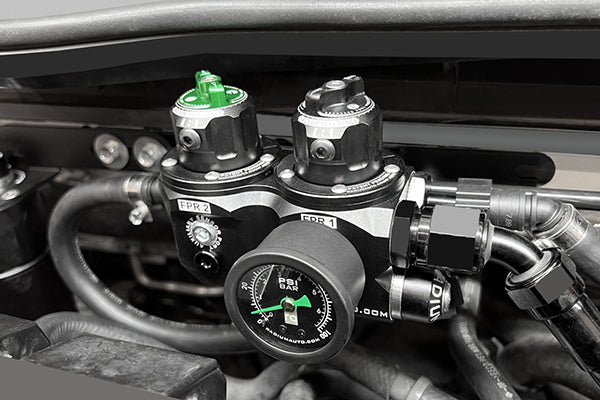

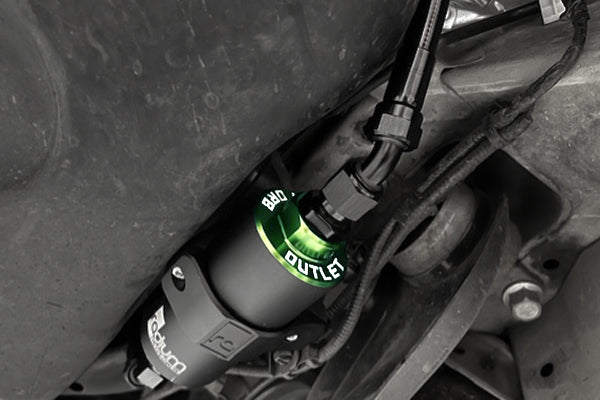

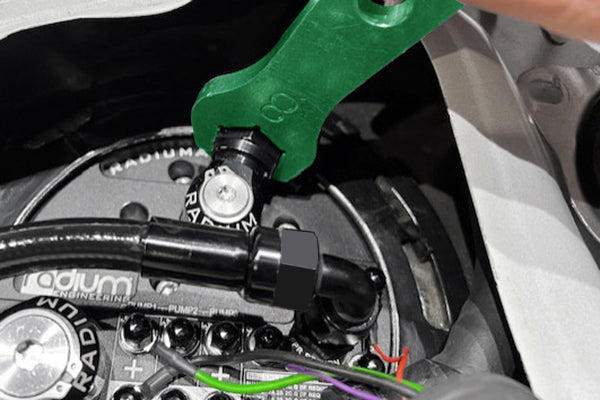

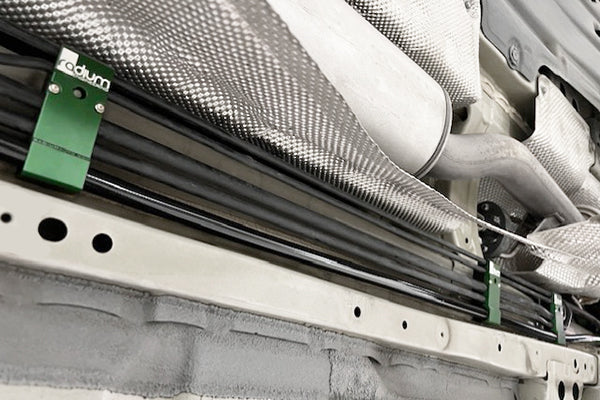

An 8AN PTFE line runs from the hanger to a high-flow filter beside the tank, then on to a Dual Fuel Pressure Regulator (DFPR) on the firewall. Its black knob sets low-pressure pump pressure for the factory DI system, while the green knob runs a second circuit for port injection. In the engine bay, 6AN EFI hose and SAE adapters turn the OEM feed line into a return, and a 6AN PTFE line takes fuel back to the hanger. Billet line retainers replace the factory plastic clips to hold the larger feed line. Choose the filter element with the variant selector: 6-micron microglass (SKU 20-1085-05) or 10-micron stainless (SKU 20-1085-03).
Note: Designed for use with the Radium FK8 fuel pump hanger (sold separately). Not confirmed on non-Type R Civic models. Installation by a professional is recommended.
Pairs Well With
- Radium Engineering Fuel Hanger - Honda Civic Type R (FK8)
- Radium Engineering Fuel Filter Mount - Honda Civic (FC/FK7) / Civic Type R (FK8/FL5)
- Radium Engineering Port Injection Kit - Honda Civic Type R (FK8 / FL5)
- Radium Engineering FPR Mount - Honda Civic (FC/FK8)
- Radium Engineering Replacement Fuel Filter Element - Universal
Need help confirming fitment? Contact our team at sales@chicaneaustralia.com.au.
Product
- Brand
- Radium Engineering
- Part number(s)
- 20-1085-05, 20-1085-03
- Microglass Filter – Part number
- 20-1085-05
- Stainless Filter – Part number
- 20-1085-03
Details
- Feed Line
- 8AN PTFE
- Return Line
- 6AN PTFE
- Regulator
- Dual Fuel Pressure Regulator (DFPR), firewall mounted
- Gauge
- 0-100psi
- Filter Options
- 6 micron microglass / 10 micron stainless
- Line Retainers
- 3 x billet aluminium fuel/brake line retainers
- Fuel Compatibility
- E85 and all fuel types
- Requires
- Radium FK8 fuel pump hanger

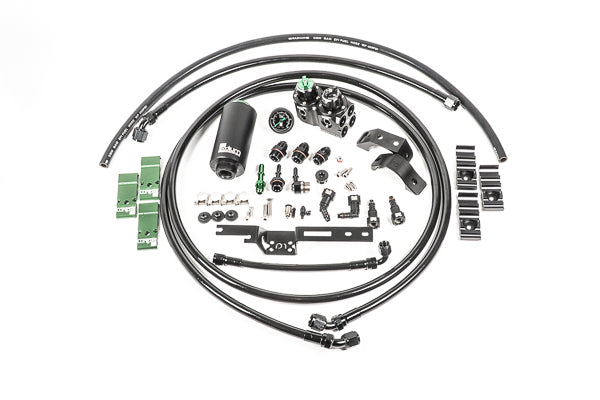

Contents
- Dual Fuel Pressure Regulator (DFPR)
- 0-100psi fuel pressure gauge
- High-flow fuel filter
- 8AN fuel filter adapter fittings
- 8AN and 6AN fuel hanger fittings
- Fuel/brake line retainers (x3)
- 8AN PTFE fuel feed lines
- 6AN PTFE return line
- SAE quick connect adapters
- Stainless steel hardware
- 5/32in vacuum tubing
- Miscellaneous adapter fittings
Vehicle fitment
Universal fit: this part suits any car. Check the specifications above for sizes and fittings.
| Make | Model | Chassis | Years | Versions | Engine | Brakes | Position |
|---|
Can’t see your car? Ask us and we’ll check fitment for you.
