Radium Engineering Catch Can Kit (CCV) Can-Am Maverick X3

Radium Engineering Catch Can Kit (CCV) - Can-Am Maverick X3

This Radium Engineering catch can kit collects oil from the crankcase ventilation system on the 2017+ Can-Am Maverick X3 (SKU 20-0861). It mounts in the left-hand rear wheel well on a CNC machined bracket that lets the can rotate to suit the hose routing.

The kit can be plumbed two ways. It ships set up as vent to atmosphere (VTA), with oil collected in the can and gases exiting the top. A second top plate, hose and fittings are included to convert it to vent to engine (VTE), a closed system that is recommended if the machine regularly throws mud, water or sand around the can.

Note: Fits the 2017+ Can-Am Maverick X3, excluding CARB (California) models. Check and drain the can regularly. Installation by a professional is recommended.

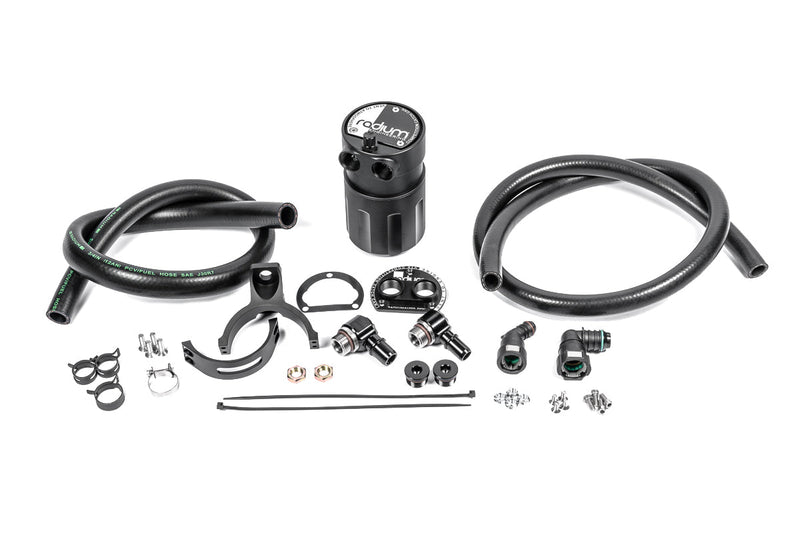

Kit Contents

• Radium competition catch can
• Anodised aluminium VTE and VTA adapters
• Anodised aluminium mounting brackets
• 12AN and 10AN PCV/fuel hose
• SAE quick connect fittings
• Stainless steel hardware
• Spring clamps
