Radium Engineering Fuel Cell Filler Hose (1.5in) Universal

Radium Engineering Fuel Cell Filler Hose (1.5in) - Universal

Radium Engineering fuel filler hoses connect a body-mounted remote filler to the fuel cell or surge tank and suit all Radium fuel filler systems. Each hose is 1.5in ID, supplied 914mm (36in) long to cut to size, and comes with two 304 stainless steel T-bolt clamps.

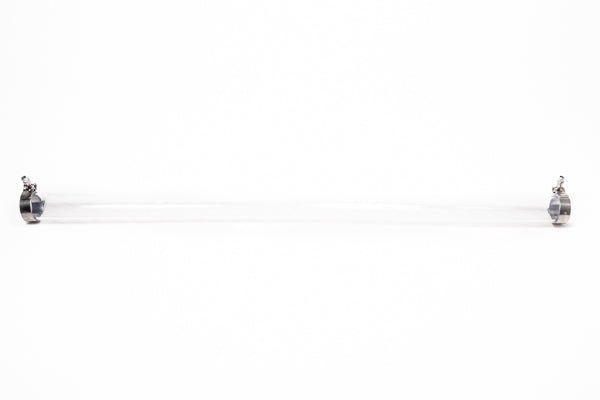

Choose the hose with the variant selector. The black synthetic hose (SKU 20-0597) is convoluted with two embedded helical wires, so it bends tightly without kinking and is compatible with all fuel types. The clear hose (SKU 20-0602) lets you watch fuel flow as the car is filled, but is not wire-reinforced, needs a larger bend radius and may cloud over time depending on fuel.

Note: Take care when cutting the black hose, as the internal helical wires are sharp. Inspect the clear hose regularly and replace it if it deteriorates. Installation by a professional is recommended.

Features

• 1.5in ID, 914mm (36in) length – cut to fit
• Two 304 stainless steel T-bolt clamps included
• Black: convoluted nitrile tube with synthetic fabric and neoprene cover, twin helical wires, SAE 30R5
• Black: 5in minimum bend radius, 20psi working / 90psi burst
• Clear: visual fuel-flow monitoring, 8in minimum bend radius, 20psi max at 72°F
• Compatible with petrol, ethanol, diesel, methanol and E85 (black hose)

Pairs Well With

• Radium Engineering Remote Mount Vented Filler (1.5in) - Universal
• Radium Engineering FCST-X 3-Bolt Remote Fill Neck (Straight to 1.5in Barb) - Universal
• Radium Engineering FCST 6-Bolt Remote Fill Neck (Straight to 1.5in Barb) - Universal
