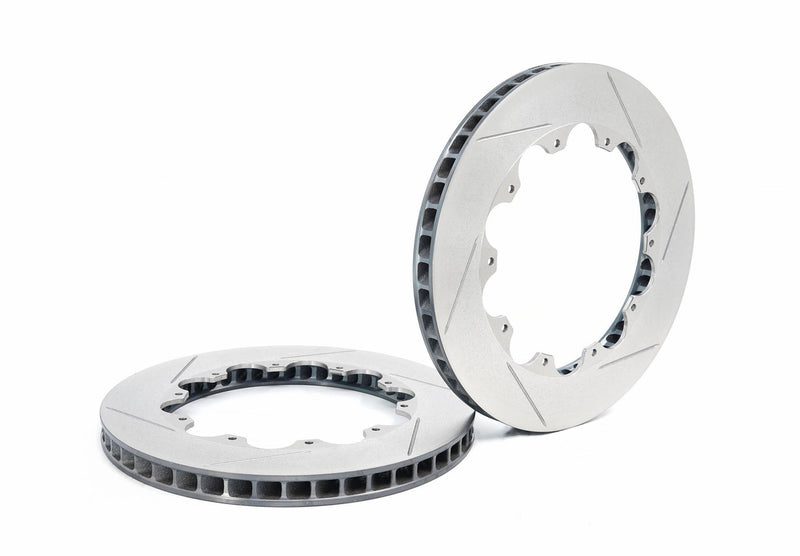

PARAGON Rotor Rings 332 x 28mm, PCD 203.2, 12-Bolt Replaces Alcon DIV2197X019C24

PARAGON Rotor Rings – 332 x 28mm, PCD 203.2, 12-Bolt – Replaces Alcon DIV2197X019C24

These Paragon Performance replacement rotor rings suit 2-piece floating brake systems running a 332 x 28mm rotor on a 203.2mm PCD with twelve 6.4mm round mounts. They are a direct replacement for Alcon DIV2197X019C24L/R rings, including the 332mm rotor in our Alcon front big brake kit for the Hyundai i20 N (BC3). The CM-250 high-carbon cast iron ring uses 48 directional vanes to pull air through the disc, running up to 30% cooler than OE rotors.

Each ring is heat treated to relieve stress and CBN machined for quick pad bedding, with lateral run-out within 0.03mm and balance within 2 g. The slotted face keeps the pad surface clean and helps in the wet. Sold as a left and right pair.

Note: Hat hardware is sold separately. Paragon recommends new hardware when replacing rings, and its rotor assembly instructions give the torque specs. Confirm PCD (203.2mm), 12 x 6.4mm round mounting and max pad depth (52.5mm) before ordering. Installation by a professional is recommended.

Features

• 332 x 28mm ring, PCD 203.2mm, D50 profile
• Direct replacement for Alcon DIV2197X019C24L / DIV2197X019C24R
• 48 directional vanes, up to 30% cooler than OE rotors
• CM-250 high-carbon alloy cast iron, heat treated and CBN machined
• Run-out within 0.03mm; balanced within 2 g
• Slotted face for consistent bite and wet-weather performance
• Floating 2-piece design reduces fade and judder

Kit Contents

• 1 x pair of rotor rings (left and right)
• Installation manual

Need help confirming fitment? Contact our team at sales@chicaneaustralia.com.au.
