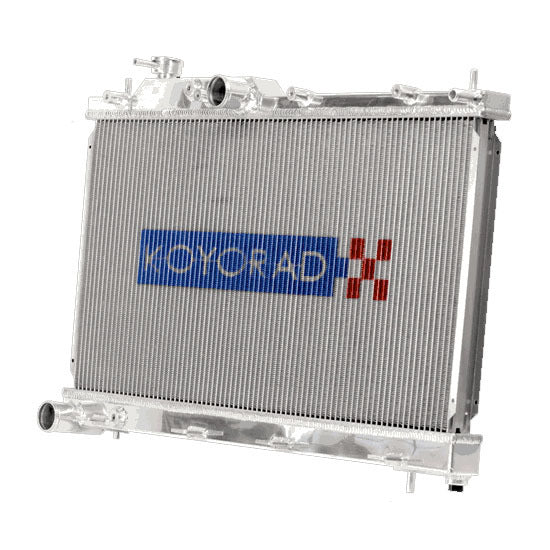

Koyorad Performance Radiator - Toyota Mark II/Chaser/Cresta (JZX90) - 1JZ-GTE MT
Koyorad builds its performance radiators for drivers who push their cooling systems as hard as their engines, and the Toyota Mark II, Chaser and Cresta running the 1JZ-GTE are no exception. The H010409 is an all aluminium, Nocolok brazed core designed to handle sustained boost and high load driving without the coolant temperature creep that catches out the factory radiator.
This listing covers the Toyota Mark II, Chaser and Cresta built on the JZX90 chassis with the 1JZ-GTE engine and manual transmission, 1992 to 1996.
Important: this radiator is for manual transmission JZX90 vehicles only and is a JDM market specific fitment.
Specifications
- Part number: H010409 / KH010409R
- Core thickness: 48mm
- Core dimensions (H x W): 500 x 446/472mm
- Tank dimensions: 55/55 x 467mm
- Inlet/outlet diameter: 35mm (top and bottom)
- Drain plug: 42014, M16 side
- Construction: all aluminium, Nocolok furnace brazed, Heliarc welded
- Toyota OEM reference: 16041 46250
- Direct bolt-in, no cutting or modification required
Vehicle compatibility, OEM part numbers, and fitment notes are provided in the tabs above. Please confirm your JZX90's transmission type and build date before ordering.
Not sure if this radiator suits your build? Contact our team at sales@chicaneaustralia.com.au for expert advice.
Vehicle Compatibility
| Make | Model | Chassis | Engine |
|---|---|---|---|
| Toyota | Mark II / Chaser / Cresta | 1JZ-GTE |
Technical Specifications
| Spec | Value |
|---|---|
| Part Number | H010409 / KH010409R |
| Core Thickness | 48mm |
| Core Dimensions (H × W) | 500 × 446/472mm |
| Tank Dimensions | 55/55 × 467mm |
| Inlet / Outlet Diameter | 35mm (top and bottom) |
| Drain Plug | 42014 | M16 side |
| Toyota OEM Reference | 16041 46250 |
| Construction | All Aluminium, Nocolok Brazed, Heliarc Welded |
| Transmission | Manual (MT) |
| Market | JDM Only |
| Fitment | Direct bolt-in, no modifications required |
