Link JZX90X G4X PlugIn ECU Toyota Chaser/Cresta/Mark II (JZX90)

Link JZX90X G4X PlugIn ECU - Toyota Chaser/Cresta/Mark II (JZX90)

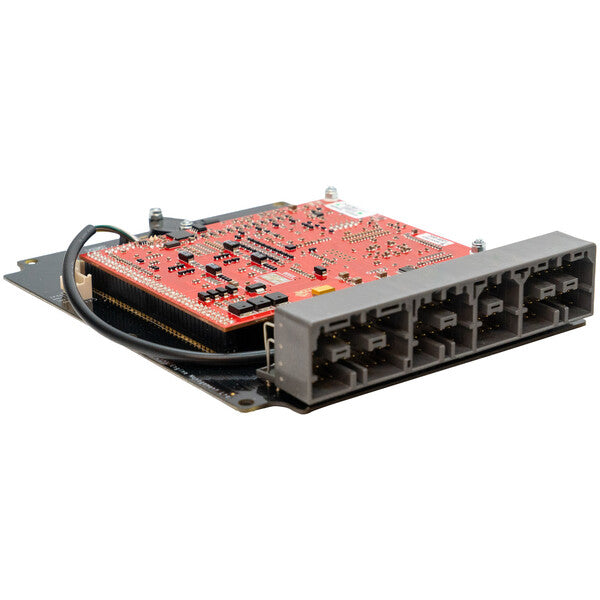

Link Engine Management's G4X PlugIn ECU (SKU 235-4000) brings modern engine management to the Toyota JZX90 platform, dropping straight into the factory OEM enclosure with no cutting or rewiring of the original loom. It's a reliable, affordable way to unlock proper tuning control from the 1JZ-GTE while keeping installation simple.

This listing covers the Toyota Chaser, Cresta and Mark II (JZX90) fitted with the 1JZ-GTE (Non-VVTi) engine, as well as the Toyota Soarer (JZZ30) running the same engine. Both applications require a manual transmission.

Important: This ECU is designed for manual transmission vehicles with the 1JZ-GTE Non-VVTi engine only. Confirm your factory connector matches the header shown in the listing photos before ordering, as fitment varies across sub models.

Key Features

• Plugs into the factory OEM ECU enclosure — no loom modification required
• Onboard 7 bar MAP sensor
• Supports most factory features (factory traction control not supported; dash light may stay illuminated)
• New 4 pin powered CAN connector with protected 12V supply and ground, fused at 3A continuous
• Requires Link CANJST4 cable (Link PN 101-0198) — not compatible with the older CANPCB cable
• I/O expansion options available — check the features tab for details

Vehicle compatibility, connector diagrams and I/O expansion details are provided in the tabs above. Please confirm your engine code, transmission type and connector match before ordering.

Not sure if this ECU suits your build? Contact our team at sales@chicaneaustralia.com.au for expert advice.
