Garrett PowerMax Twin Turbocharger Kit - Nissan Z (RZ34)

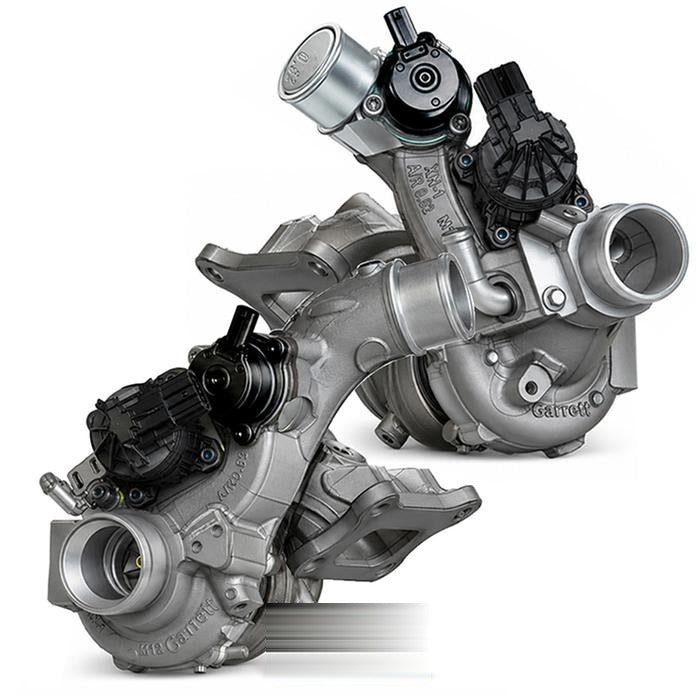

The Garrett PowerMax 959782-5001S is a direct-fit upgrade twin-turbo kit for the 3.0L VR30DDTT V6 in the Nissan Z (RZ34). The left and right MGT1446Z turbos bolt in using the factory mounting points and connections, and flow 12% more than the factory turbos to support up to 560 BHP (412 kW). Both come fully assembled with calibrated electronic actuators.
Note: Turbo gaskets are not included. A custom ECU calibration is recommended to use the extra capacity. Maximum turbo speed is 220,100 rpm; Garrett recommends fitting a speed sensor (sold separately).
Features
- Direct-fit left and right turbos, no fabrication
- +12% compressor flow over the factory turbos
- Supports up to 560 BHP (412 kW)
- 36mm compressor inducer
- Calibrated electronic actuators, fully assembled
- Machined speed sensor port
Pairs Well With
- AMS Performance Intercoolers - Nissan Z (2023+)
- AMS Performance Heat Exchanger - Nissan Z (2023+)
- AMS Performance Street Lower Downpipes - Nissan Z (2023+)
- AMS Performance Cold Air Intakes - Nissan Z (2023+)
- Turbosmart Kompact EM Dual Port Blow Off Valve Kit VR25 - Nissan Z (RZ34)
Shop more: Turbochargers
Need help with fitment? Contact our team at sales@chicaneaustralia.com.au.
Product
- Brand
- Garrett
- Turbo model
- MGT1446Z (left + right)
- Part number(s)
- 959782-5001S
Details
- Range
- PowerMax (direct-fit upgrade)
- Vehicle
- Nissan Z (RZ34)
- Engine
- Nissan 3.0L VR30DDTT twin-turbo V6
- Power rating
- Up to 560 BHP (412 kW)
- Compressor inducer / exducer
- 36mm / 46mm
- Turbine inducer / exducer
- 39mm / 36mm
- Flow increase
- +12% compressor flow vs factory
- Max turbo speed
- 220,100 rpm
- Kit contains
- 955654-5001S (LH), 955655-5001S (RH)
- Replaces OEM turbos
- LH 14411-6GP0B / 6GP1B / 6GP1D / 6GP2B, RH 14411-6GP0A / 6GP1A / 6GP1D / 6GP2B
Contents
- 1 x Garrett PowerMax left-hand turbo (955654-5001S) with calibrated electronic actuator
- 1 x Garrett PowerMax right-hand turbo (955655-5001S) with calibrated electronic actuator
