AWE Track Edition Exhaust Honda Civic Type R (FL5)

AWE Track Edition Exhaust – Honda Civic Type R (FL5)

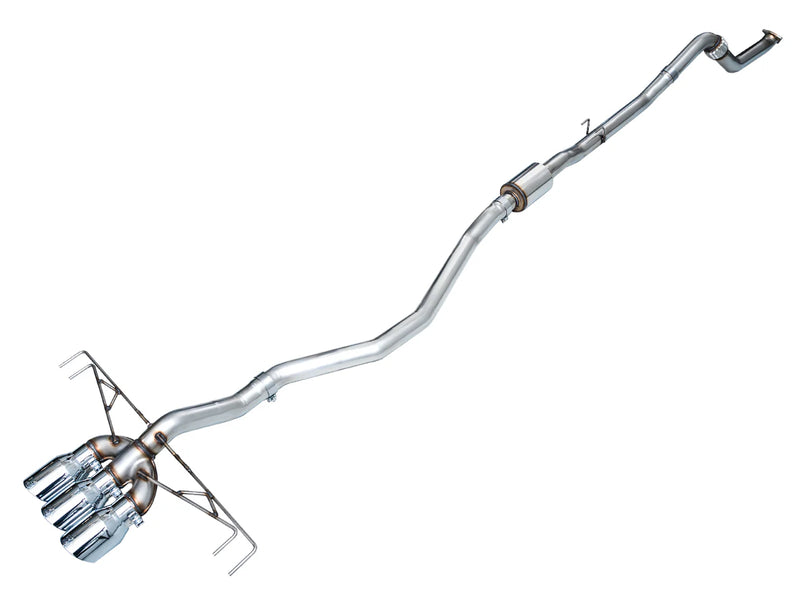

The AWE Track Edition is a full 76mm (3") exhaust for the Honda Civic Type R (FL5) that replaces the factory system from the downpipe back. It is AWE's loudest FL5 option: the rear 180 Technology® resonator used on the Touring Edition is swapped for a straight section, so only the mid-pipe resonator remains. At 16.6 kg (36.5 lb) it is about 6.4 kg (14 lb) lighter than the 22.9 kg (50.5 lb) factory system, and AWE measured up to 10 kW (14 hp) and 18 Nm (13 ft-lb) at the wheels on a stock downpipe.

Video

Sound clip – Touring and Track Edition on an FL5 Civic Type R

Overview – AWE exhausts for the Honda FL5 Civic Type R

Install guide – AWE exhaust on the Honda FL5 Civic Type R

Choose Chrome Silver, Diamond Black or Vapor Blue for the three 114mm (4.5") double-walled, slash-cut tips. The finish is the only difference between the part numbers. Vapor Blue is a more delicate finish, so wash it with mild soap only and avoid harsh cleaners or tip polish.

Note: Includes an integrated 76mm (3") front pipe with its own flange and gasket that mates to the factory downpipe. AWE exhausts are not designed to mate with other aftermarket front pipes. AWE warns the Track Edition is loud at cruise and on and off the throttle in the mid-range, more so with an aftermarket downpipe. A Track-to-Touring Conversion Kit is available if you later want it quieter. Installation by a professional is recommended.

Features

• Track Edition: AWE's loudest FL5 exhaust, mid-pipe resonator only
• Full 76mm (3") diameter from inlet to outlet
• Integrated front pipe with unique flange and gasket for the factory downpipe
• Mandrel-bent T304L stainless steel, 1.65mm (0.065") wall
• 16.6 kg (36.5 lb) vs 22.9 kg (50.5 lb) factory
• Up to 10 kW (14 hp) and 18 Nm (13 ft-lb) at the wheels (AWE dyno figures, stock downpipe)

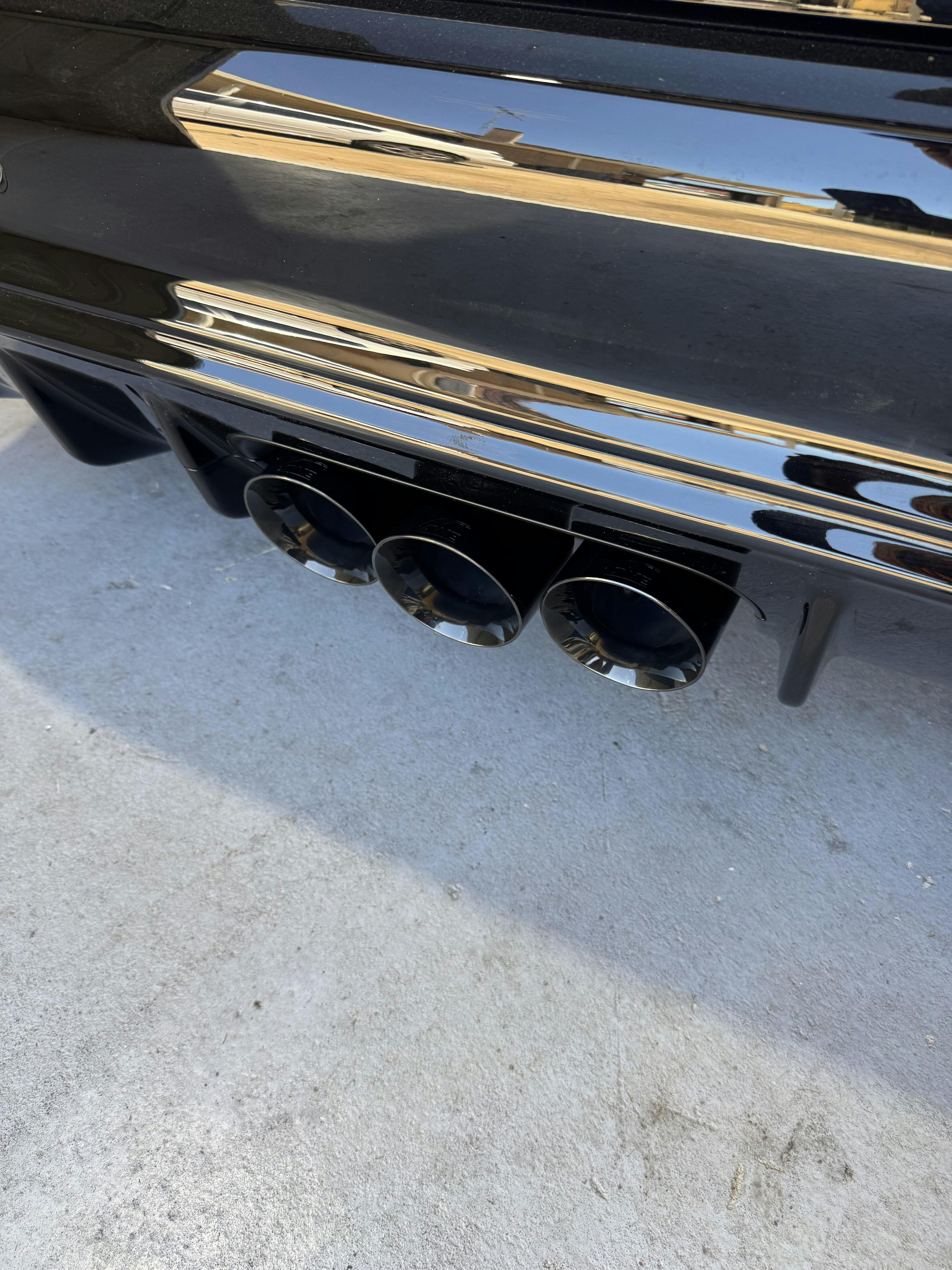

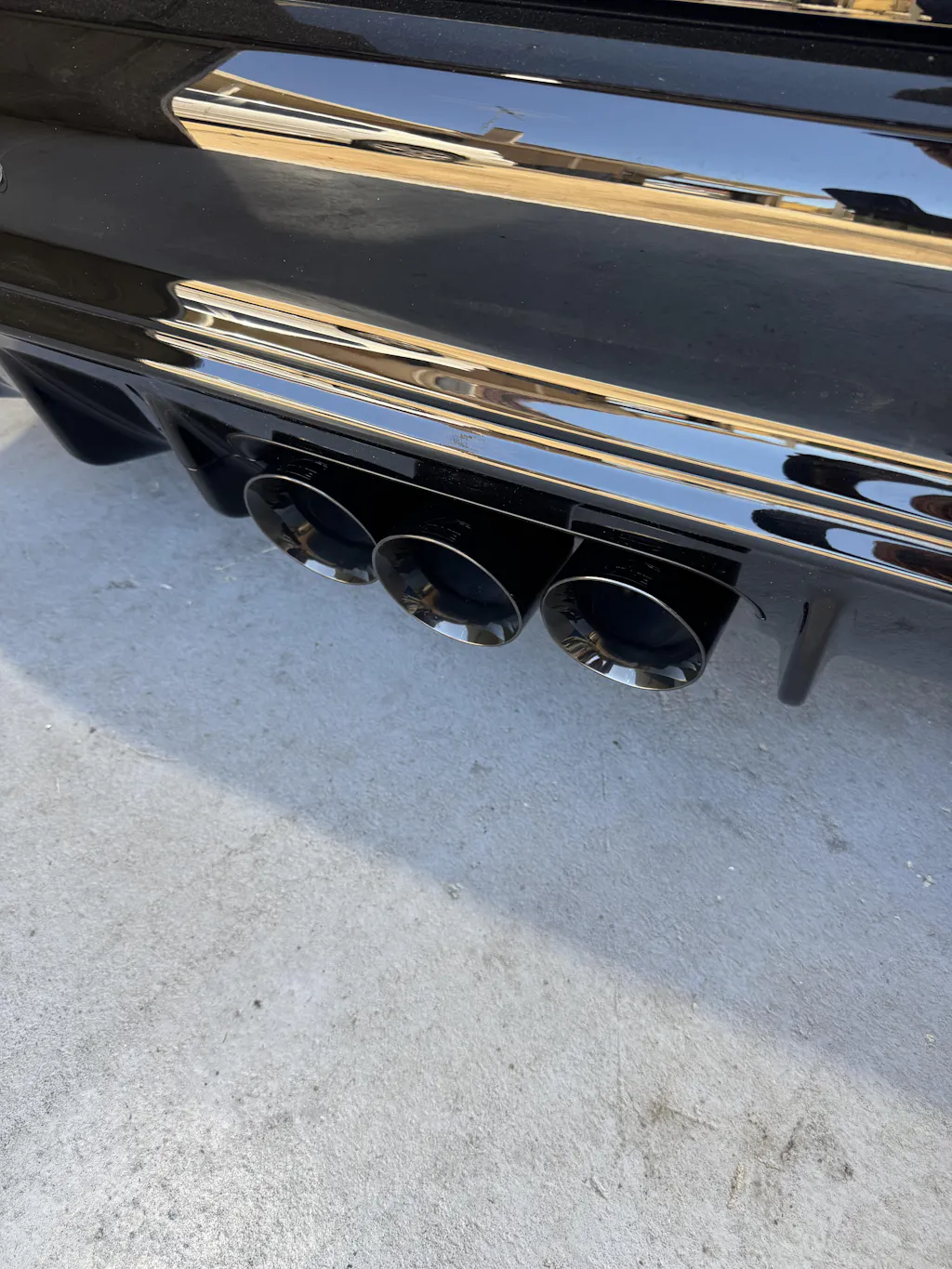

• Stamped stainless trident merge with three 114mm (4.5") double-walled slash-cut tips
• Tips individually adjustable for depth in the bumper
• Direct bolt-on, no engine mount removal needed

Need help confirming fitment? Contact our team at sales@chicaneaustralia.com.au.
