AWE Carbon Turbo Inlet Tube Honda Civic Type R (FL5)

$1,499.00
SKU: 2660-11114
💬
Need help choosing the right part?

Not sure which option fits your application? Contact Us — we're happy to help.

$17.95 Flat Shipping
Australia-wide
100% Genuine Parts
Warranty backed
Aussie Support
Local team
Guaranteed Safe Checkout
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

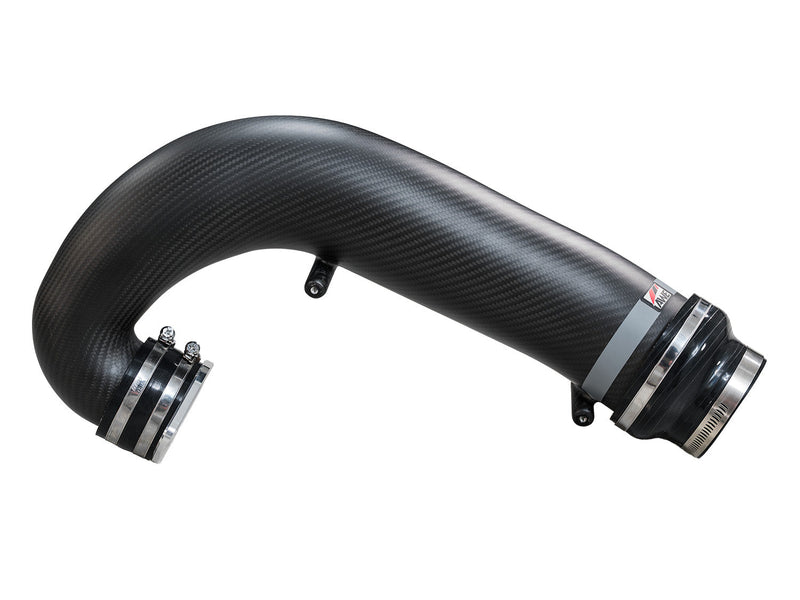

AWE carbon turbo inlet tube – Civic Type R FL5 – matte carbon tube with silicone couplers and clamps - AWE Exhausts Thumbnail AWE carbon turbo inlet tube – Civic Type R FL5 – side view with machined aluminium turbo flange - AWE Exhausts Thumbnail AWE carbon turbo inlet tube – Civic Type R FL5 – machined aluminium turbo flange close-up - AWE Exhausts Thumbnail AWE carbon turbo inlet tube – Civic Type R FL5 – kit laid out: tube, flange, couplers, clamps and loom - AWE Exhausts Thumbnail AWE carbon turbo inlet tube – fitted in a Honda Civic Type R FL5 engine bay, angled view - AWE Exhausts Thumbnail AWE carbon turbo inlet tube – fitted to a Honda Civic Type R FL5, close-up beside the red engine cover - AWE Exhausts Thumbnail AWE carbon turbo inlet tube – fitted to a Honda Civic Type R FL5, front view of the engine bay - AWE Exhausts Thumbnail AWE S-FLO complete system: carbon airbox with turbo inlet tube (airbox sold separately) - AWE Exhausts Thumbnail AWE carbon airbox and turbo inlet tube fitted together in a Honda Civic Type R FL5 (airbox sold separately) - AWE Exhausts Thumbnail
AWE carbon turbo inlet tube – Civic Type R FL5 – matte carbon tube with silicone couplers and clamps - AWE Exhausts
AWE Carbon Turbo Inlet Tube $1,499.00

AWE Carbon Turbo Inlet Tube - Honda Civic Type R (FL5)

The AWE Carbon Turbo Inlet Tube replaces the factory turbo inlet on the Honda Civic Type R (FL5) with a matte-finish carbon fibre tube that has 39% more cross-sectional area than stock, so the turbo draws air through a larger, smoother path. It bolts to the turbo with a machined aluminium flange and works with the factory airbox or AWE's carbon airbox. No tune is required.

Video

Overview – AWE S-FLO carbon intake and turbo inlet tube for the FL5 Civic Type R

AWE S-FLO carbon intake system on the FL5 Civic Type R

The tube is half of AWE's two-piece S-FLO intake system. Fitted with the matching AWE S-FLO carbon airbox, AWE measured up to 15 kW (20 hp) and 22 Nm (16 lb-ft) at the wheels on 91-octane (US) software; that figure is for the complete system, not the tube alone. The aluminium flange and coupler can be removed, so the tube can also be used with larger aftermarket turbos that have a bigger inlet.

Note: This listing is the turbo inlet tube only (2660-11114). The carbon airbox shown in some photos is the AWE S-FLO Carbon Intake, sold separately. Silicone couplers are included for both the factory airbox and the AWE airbox. Suits all factory-fitment FL5 turbochargers. Installation by a professional is recommended.

Features

  • 39% larger inlet cross-sectional area than the factory tube
  • 2x2 carbon fibre with UV-stabilised resin, matte finish
  • Machined aluminium turbo flange, reuses the factory turbo gasket
  • Removable flange and coupler to suit larger aftermarket turbos
  • Works with the factory airbox or the AWE carbon airbox
  • Fits all factory-fitment FL5 turbochargers
  • Uses the factory mounting points
  • No tune required

Also available: PRL Motorsports Inlet Pipe Kit - Matte Carbon Fibre - Honda Civic Type R (FL5).
