AWE Touring Edition Exhaust Honda Civic Type R (FL5)

AWE Touring Edition Exhaust – Honda Civic Type R (FL5)

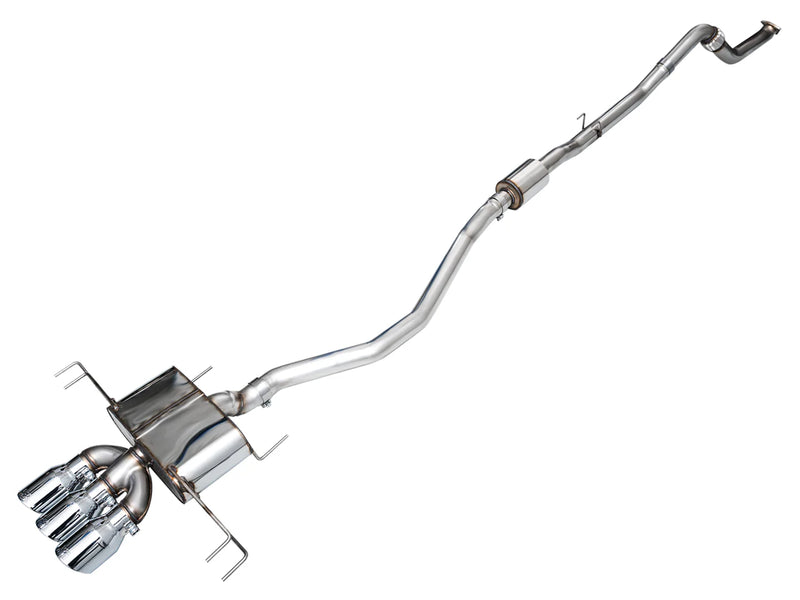

The AWE Touring Edition Exhaust is a full 76mm (3") cat-back for the 2.0L turbo Honda Civic Type R (FL5), and the quieter of AWE's two FL5 systems. An integrated front pipe with its own flange and gasket keeps the full 76mm (3") diameter from inlet to outlet, followed by a resonated mid pipe and an FL5-specific AWE 180 Technology resonator at the rear to cancel highway drone. It gives a deep note with straight-pipe flow and a quiet cabin at cruise. AWE measured gains of up to 10 kW (14 hp) and 18 Nm (13 lb-ft) at the wheels with the stock downpipe, and it weighs 20.9 kg (46 lb) against 22.9 kg (50.5 lb) for stock.

Video

AWE cat-back exhausts for the Honda FL5 Civic Type R – product overview

Sound clip – AWE exhausts on the Honda FL5 Civic Type R

Install guide – AWE cat-back on the Honda FL5 Civic Type R

All versions are the same Touring Edition system with a stamped stainless trident merge and three 114mm (4.5") double-walled slash-cut tips. Choose Chrome Silver for a polished finish, Diamond Black for a dark finish or Vapor Blue for a blue finish. Vapor Blue is a more delicate finish, so wash it with mild soap only and avoid harsh cleaners or tip polish.

Note: Developed for use with or without an aftermarket catted downpipe. The integrated front pipe is not designed to mate with other aftermarket front pipes. No engine mount removal is needed. A Touring-to-Track conversion kit is available if you want more volume later. Installation by a professional is recommended.

Features

• Touring Edition – AWE's quieter, drone-free FL5 exhaust
• FL5-specific AWE 180 Technology rear resonator
• Full 76mm (3") from inlet to outlet with integrated front pipe
• Resonated mid pipe
• Up to 10 kW (14 hp) and 18 Nm (13 lb-ft) at the wheels on AWE's dyno (stock downpipe)
• 20.9 kg (46 lb) vs 22.9 kg (50.5 lb) stock
• Trident merge with three 114mm (4.5") double-walled slash-cut tips
• No engine mount removal, good clearance
• CNC mandrel-bent T304L stainless steel, 1.65mm (0.065") wall

Need help confirming fitment? Contact our team at sales@chicaneaustralia.com.au.
