Alcon Calipers Front
Street or track? We can help you pick the best Alcon kit for your car. Just Contact Us — we're happy to help.

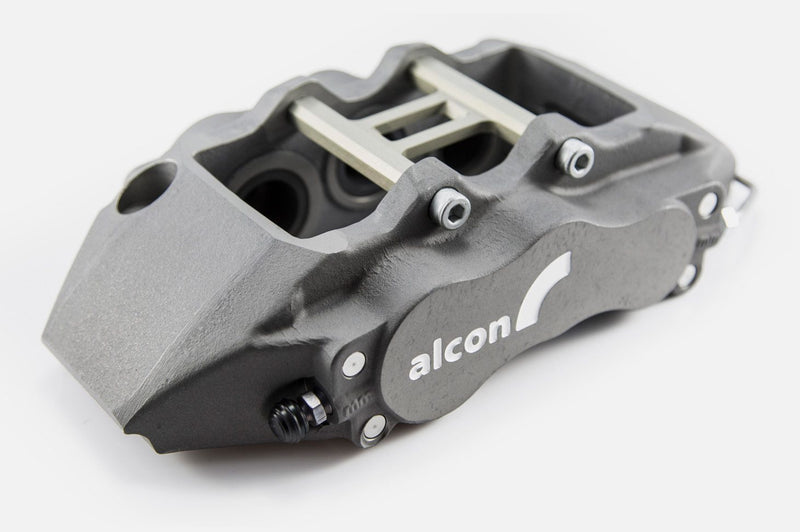

The Alcon CR6380 is a high-performance motorsport brake caliper engineered for consistent braking, durability, and optimal thermal control in demanding race environments. Designed with stiffness, service life, and pedal feel in mind, this caliper is ideal for high-load front axle applications in professional racing.
Its radial mount design ensures maximum rigidity and consistent pedal response, while differential piston diameters help to minimise pad taper and promote even wear. Aluminium pistons come as standard, with stainless steel pistons available as an option to reduce heat transfer into the brake fluid.
The caliper is built to withstand intense use, featuring hard stainless steel wear plates, pad support pins, and abutment pins for extended life. The fixed pad retainer bars improve overall caliper stiffness—pads can be changed by removing the caliper.
Key Features:
-
Radial mount – for increased rigidity and firmer pedal feel
-
Differential piston sizes – reduce pad taper wear
-
Aluminium pistons standard – stainless steel optional for improved thermal resistance
-
2kg anti-knock back springs – for consistent pad contact
-
Hard stainless steel wear plates – improve durability under heavy load
-
Stainless pad support & abutment pins – for long service life
-
Fixed pad retainer bars – increases stiffness; caliper must be removed for pad changes
-
Fluid inlet: 3/8-24 UNF (-3) male
-
Dry weight: 3.50kg (excluding pads)
Specifications:
-
Disc compatibility: ø343 – 380mm diameter
-
Disc thickness range: 30 – 32mm
No instructions available for this product.
Pad Shape
Alcon Caliper Comparison Guide
Dive into the technical specifications. Compare piston sizing, rotor compatibility, and architectural data across Alcon's purpose-built street, dual-use, and dedicated motorsport calipers.
| Overview |
 CAR97 "MONO6" Full Specs |
 CAR70 "RC6" Full Specs |
 CAR99 Full Specs |
 CAR89 "TA6+" Full Specs |
 CAR89 Motorsport Full Specs |
 CAR89 "Billet" Full Specs |
CR6420 Full Specs |
|---|---|---|---|---|---|---|---|
| Category | Performance Street | Performance Street | Premium Street | Street / Track | Dedicated Track | GT / Touring Car | GT / Touring Car |
| Construction | Monobloc Cast | 2-Piece Forged | Monobloc Billet | Forged Aero | Billet Aero | Monobloc (1-Piece) | Billet Aero |
| Piston Sizing | 30.2 / 34.9 / 38.1mm | 27.1 / 31.8 / 38.1mm | 27.1 / 31.8 / 38.1mm | 27.1 / 31.8 / 38.1mm | 30.2 / 34.9 / 38.1mm | 27.1 / 31.8 / 38.1mm | 27.0 / 31.8 / 38.1mm |
| Overview |
 CAR69 "RC4" Full Specs |
 CAR23 Full Specs |
 CRB343 Full Specs |
 CRB332 Full Specs |
|---|---|---|---|---|
| Category | Performance Street | Dedicated Track | Dedicated Track | Dedicated Track |
| Construction | 2-Piece Forged | Billet Monobloc | Radial Mount | Radial Mount |
| Piston Sizing | 38.1 / 41.3mm | 38.1 / 41.3mm | 38.1 / 41.3mm | 38.1 / 41.3mm |
| Overview |
 CAR98 "MONO4" Full Specs |
CAR69 "RC4" Full Specs |
 CAR49 "TA4+" Full Specs |
|---|---|---|---|
| Category | Performance Street | Performance Street | Street / Track |
| Construction | Monobloc Cast | 2-Piece Forged | Forged Aero |
| Piston Sizing | 31.8 / 31.8mm | 31.8 / 31.8mm | 31.8 / 31.8mm |
| Overview |
 CRR300 Full Specs |
 CRR280 Full Specs |
|---|---|---|
| Category | Dedicated Track | Dedicated Track |
| Construction | Radial Monobloc | Radial Mount |
| Piston Sizing | 28.6 or 34.9mm | 2-Piston |
Caliper Name
Your subheading
Your title
Alcon Caliper Comparison Guide
Dive into the technical specifications. Compare piston sizing, rotor compatibility, and architectural data across Alcon's purpose-built street, dual-use, and dedicated motorsport calipers.
CAR97 "MONO6"
Designed for high-performance street cars with a firm, consistent pedal feel.
CAR70 "RC6"
A versatile 6-piston caliper built for aggressive street driving and light track use.
CAR99
The pinnacle of Alcon's street range. Billet monobloc for maximum structural rigidity.
CAR89 "TA6+"
The ultimate dual-purpose weapon. Built specifically for Time Attack and heavy track sessions.
CAR89 Motorsport
Purpose-built for professional motorsport to deliver even pressure across massive pads.
CAR89 "Billet"
1-piece billet aerospace aluminium body offers massive strength and reduced weight.
CR6420
The definitive choice for endurance GT racing, accommodating ultra-thick 25mm pads.
CAR69 "RC4"
A forged 2-piece front caliper engineered for high-performance street applications.
CAR23
An ultra-lightweight billet monobloc front caliper designed for uncompromised motorsport use.
CRB343
A pure, track-focused front radial mount caliper with differential piston diameters.
CRB332
A dedicated motorsport radial mount front caliper providing incredibly stable brake bias.
CAR98 "MONO4"
A premium 4-piston rear caliper designed to perfectly complement Alcon front upgrades.
CAR69 "RC4"
Equipped with dust seals for long-term road use, ensuring balanced rear braking power.
CAR49 "TA4+"
The definitive rear caliper for dual-purpose track and street cars.
CRR300
A sub-1kg, ultra-compact rear caliper built exclusively for motorsport.
CRR280
A highly robust rear caliper tailored for Saloon and GT racing with fast-change pad wire.
Caliper Name
