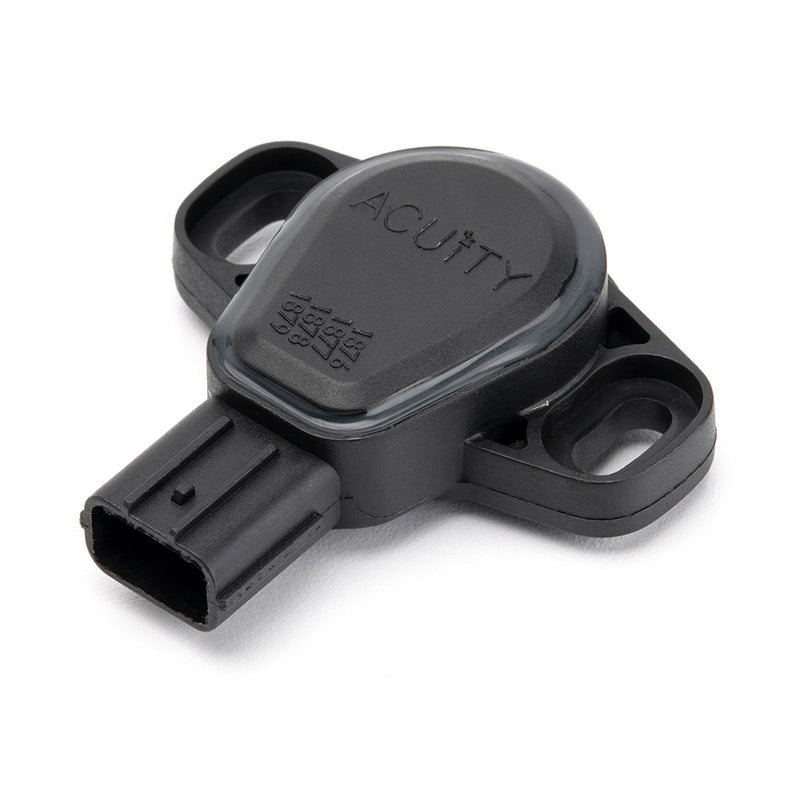

ACUITY Hall effect TPS, DC5 Integra / EP3 Civic Type R – front three-quarter view of the sensor - Acuity
ACUITY Hall Effect Throttle Position Sensor $195.00

ACUITY Hall Effect Throttle Position Sensor - Honda Integra Type R (DC5) / Civic Type R (EP3)

The ACUITY Hall Effect Throttle Position Sensor is a direct replacement TPS for the K20A drive-by-cable throttle body used on the DC5 Integra Type R and EP3 Civic Type R. Honda only supplies the factory sensor as part of a complete throttle body, so this gives you a way to replace a worn or faulty sensor on its own.

Video

ACUITY Hall effect TPS: sensor assembly

Instead of the factory wiper-style resistor, ACUITY uses a contactless Hall effect sensor with an on-board signal processor. With no rubbing contact to wear, the output stays smooth and steady and resists the vibration that upsets older sensors, especially with stiffer engine mounts. ACUITY tested the design to more than 2 million cycles.

The fibre-reinforced composite housing is tougher than the factory part, an integral o-ring replaces the paper gasket, and rolled connector pins resist damage during fitting. An extended calibration range lets each sensor be set exactly within the factory range.

Note: Suits the DC5 Integra Type R and EP3 Civic Type R throttle body and harness. Not compatible with the base-model K20A3 throttle body or wiring harness. Calibrate the sensor to factory specification after fitting. Installation by a professional is recommended.

Features

  • Contactless Hall effect sensing for long life
  • On-board signal processor for a smooth, consistent signal
  • Highly resistant to engine vibration
  • Fibre-reinforced composite housing
  • Integral o-ring seal in place of the paper gasket
  • Rolled connector pins that resist damage during fitting
  • Extended calibration range to match factory settings
  • Tested to more than 2 million cycles

Kit Contents

  • 1 x ACUITY Hall effect throttle position sensor
  • 2 x yellow zinc M5 mounting screws
