ACUITY TPS and MAP Sensor Wiring Pigtail Honda Integra Type R (DC5) / Civic Type R (EP3)

ACUITY TPS and MAP Sensor Wiring Pigtail - Honda Integra Type R (DC5) / Civic Type R (EP3)

The ACUITY TPS and MAP Sensor Wiring Pigtail repairs a damaged throttle position sensor or MAP sensor plug on an early Honda K-series engine loom, as fitted to the EP3 Civic Type R, DC5 Integra and CL9 Accord Euro. It is a common fix for a used engine with a broken plug, or a connector cracked during other work.

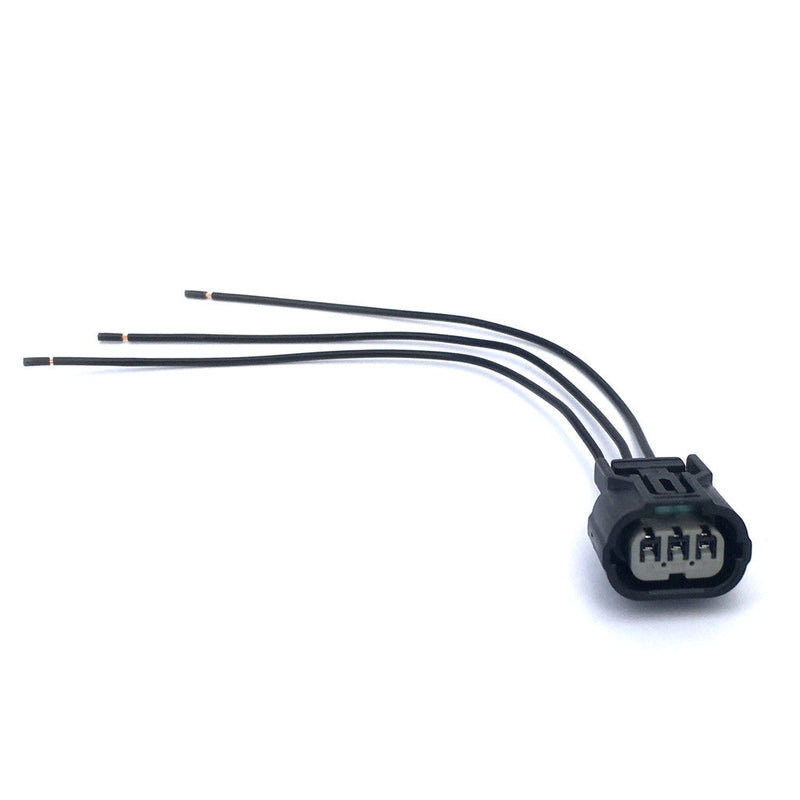

The OEM-quality 3-pin connector comes with its three wires already pinned, crimped and pre-stripped. Remove the protective sleeves from the wire ends, solder each wire to the existing loom and seal the joints with heat shrink.

Note: Suits early K-series engines (K20A / K24A) in the EP3 Civic Type R, DC5 Integra and CL9 Accord Euro. On non-Type R DC5 Integras it suits the TPS plug only, not the MAP sensor. Soldering is required. Installation by a professional is recommended.

Features

• Replacement TPS / MAP sensor connector for early Honda K-series looms
• OEM-quality 3-pin connector
• Pinned, crimped and pre-stripped wires
• Solder-in repair with heat shrink

Kit Contents

• 1 x ACUITY TPS / MAP sensor wiring pigtail (3-wire)

Pairs Well With

• ACUITY Hall Effect Throttle Position Sensor - Honda Integra Type R (DC5) / Civic Type R (EP3)

Need help with a K-series wiring repair? Contact our team at sales@chicaneaustralia.com.au.
