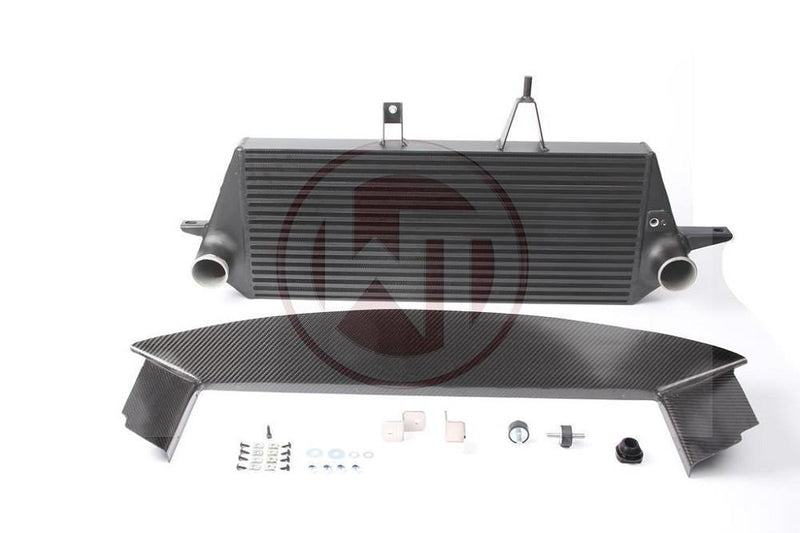

Wagner Tuning Performance Intercooler - Ford Focus RS500 (LZ)
Wagner Tuning builds its intercoolers around motorsport derived core technology, using CAD and FEM optimised design to extract maximum cooling performance from a direct fit package. This unit is purpose engineered for the Ford Focus RS500, replacing the factory intercooler with a substantially larger core while retaining the original mounting points.
This listing covers the Ford Focus RS500 (LZ), built on the RS platform for the 2009-2010 model years. The kit uses the original RS500 fitments, so no additional bracketry or modification is required for installation.
Specifications
- Core dimensions: 730mm x 300mm x 70mm, 15,330 cm³ volume
- Standard core comparison: 660mm x 160mm x 65mm, 6,864 cm³ volume
- Approximately 100% larger face area than OEM
- Approximately 125% larger volume than OEM
- End tanks CAD/FEM optimised, cast aluminium construction
- Intercooler finished in black
- Includes multilayer carbon fibre airguide
- Mounting hardware included
- Uses original RS500 fitment points for straightforward installation
Vehicle compatibility, OEM part numbers, and fitment notes are provided in the tabs above. Please ensure your vehicle's year, trim level, and configuration are confirmed before ordering.
Not sure if this intercooler suits your build? Contact our team at sales@chicaneaustralia.com.au for expert advice.
Vehicle Compatibility
| Make | Model | Chassis | Engine |
|---|---|---|---|
| Ford | Focus RS500 | LZ | - |
Technical Specifications
| Spec | Value |
|---|---|
| Core Dimensions | 730mm x 300mm x 70mm |
| Core Volume | 15.33 L (15,330 cm³) |
| OEM Core Dimensions (comparison) | 660mm x 160mm x 65mm |
| OEM Core Volume (comparison) | 6.86 L (6,864 cm³) |
| Face Area Increase vs OEM | Approx. 100% larger |
| Volume Increase vs OEM | Approx. 125% larger |
| End Tank Material | Cast aluminium, CAD/FEM optimised |
| Airguide Material | Multilayer carbon fibre |
| Finish | Painted black |
| Fitment | Original RS500 mounting points |
