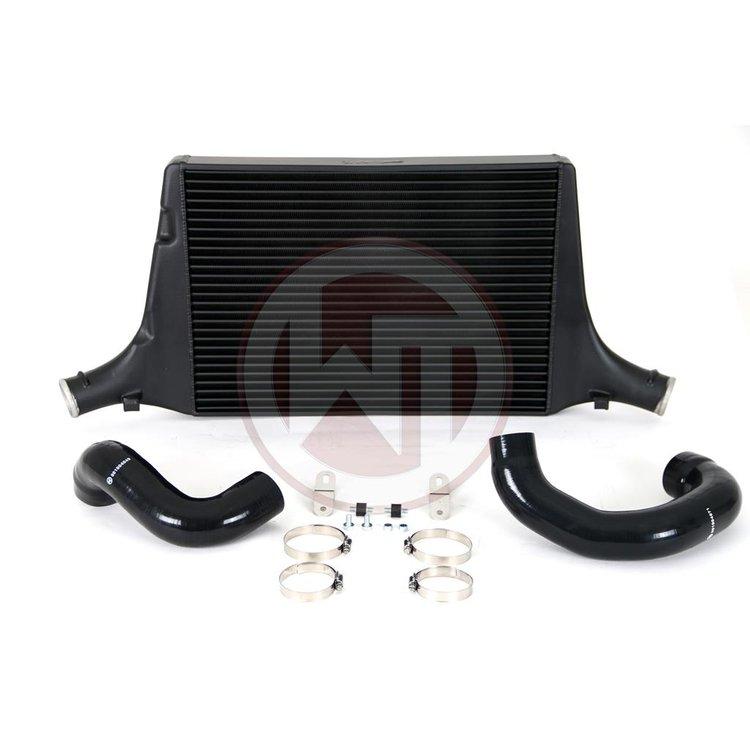

Wagner Tuning Competition Intercooler Kit - Audi Q5/SQ5 (8R) 3.0 TDI
Wagner Tuning builds its intercoolers around motorsport derived core technology, and this Competition kit is engineered specifically for the Audi Q5 and Audi SQ5 3.0 TDI. It replaces the restrictive factory unit with a significantly larger core, aimed at drivers chasing sustained charge air cooling under load.
This listing covers the Audi Q5 (8R) 3.0 TDI (CDUD, CTBA engine codes) and Audi SQ5 (8R) 3.0 TDI, including Competition and Plus variants (CGQB, CVUB engine codes). The kit bolts in at the original mounting points as a 1:1 exchange.
Specifications
- Core dimensions: 610mm x 440mm x 65mm
- Cooling surface: 2684cm² (vs 1207.5cm² OEM, +122%)
- Charge air volume: 17.4L (vs 9.05L OEM, +92%)
- Weight: 9.1 kg
- Inlet/outlet diameter: 67mm
- End tanks: cast aluminium, CFD optimised with internal air baffles
Kit Contents
- 1 x Competition intercooler
- 2 x silicone hoses
- Mounting hardware
- Installation instructions
Vehicle compatibility, OEM part numbers, and fitment notes are provided in the tabs above. Please ensure your vehicle's engine code and model year are confirmed before ordering.
Not sure if this kit suits your build? Contact our team at sales@chicaneaustralia.com.au for expert advice.
Vehicle Compatibility
| Make | Model | Chassis | Engine |
|---|---|---|---|
| Audi | Q5 | 8R | CDUD |
| Audi | Q5 | 8R | CTBA |
| Audi | SQ5 | 8R | CGQB |
| Audi | SQ5 | 8R | CVUB |
Technical Specifications
| Spec | Value |
|---|---|
| Core Dimensions | 610mm x 440mm x 65mm |
| Weight | 9.1 kg |
| Inlet/Outlet Diameter | 67mm |
| Cooling Surface (OEM Intercooler) | 1207.5 cm² |
| Cooling Surface (WT EVO 2 Competition) | 2684 cm² |
| Charge Air Volume (OEM Intercooler) | 9.05 L |
| Charge Air Volume (WT EVO 2 Competition) | 17.4 L |
| End Tank Material | Cast aluminium |
| Package Includes | 1 intercooler, 2 silicone hoses, mounting material |
| Engine Codes (Fitment Reference) | CGQB, CVUB, CDUD, CTBA |
