Wagner Competition Intercooler Kit - Audi RS6 (C6/4F)
Wagner Tuning builds high performance intercoolers engineered for serious cooling gains under sustained load, and this Competition kit is purpose built for the Audi RS6. It uses a newly developed HD-Fin tube fin core with CAD designed, CFD optimised aluminium end tanks for maximum airflow with minimal back pressure.
This listing covers the Audi RS6 C6 (4F), 426kW/580PS models built 2008-2010. The kit replaces the factory intercooler and water cooler assembly as a complete unit, retaining the stock plastic air guides and stock 64mm inlet/60mm outlet diameters for a plug and play installation.

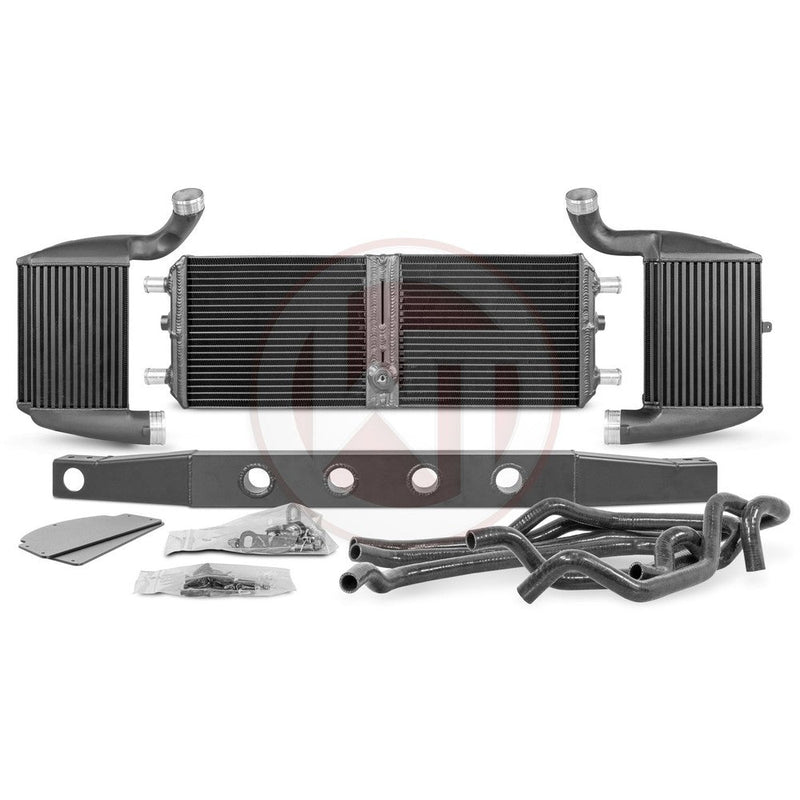

Kit Contents
- 2x intercoolers, powder coated black (left/right)
- 1x water cooler, powder coated black
- 1x cross member, powder coated black
- 4x black water hoses
- Mounting hardware and installation instructions
Specifications
- Core volume: 8.73 L (stepped core), a 79% increase over the 4.88 L stock core
- Core dimensions: 283mm x 225mm x 90mm + 283mm x 193mm x 55mm
- Core surface area: 637 cm², matching stock
- Inlet diameter: 64mm (stock size)
- Outlet diameter: 60mm (stock size)
- Anti-corrosion powder coated finish for long term heat conducting performance
Vehicle compatibility, OEM part numbers, and fitment notes are provided in the tabs above. Please confirm your RS6's model year and configuration before ordering.
Not sure if this kit suits your build? Contact our team at sales@chicaneaustralia.com.au for expert advice.
Vehicle Compatibility
| Make | Model | Chassis | Engine |
|---|---|---|---|
| Audi | RS6 | C6/4F | - |
Technical Specifications
| Spec | Value |
|---|---|
| Core Dimensions (Stage 1) | 283 mm x 225 mm x 90 mm |
| Core Dimensions (Stage 2) | 283 mm x 193 mm x 55 mm |
| Core Type | Stepped core, tube fin (HD-Fin) |
| Core Volume (Wagner) | 8.73 L |
| Core Volume (Stock, for comparison) | 4.88 L |
| Core Volume Increase | +79% vs stock |
| Core Frontal Area (Wagner) | 637 cm² |
| Core Frontal Area (Stock, for comparison) | 637 cm² |
| Inlet Diameter | Ø64 mm (same as stock) |
| Outlet Diameter | Ø60 mm (same as stock) |
| Endtank Material | Cast aluminium, CAD designed and CFD optimised |
| Finish | Anti-corrosion powder coating, black |
| Kit Contents | 2x intercooler (left/right, black), 1x watercooler (black), 1x cross member (black), 4x water hoses (black), mounting material, installation instructions |
