Torque Solution Braided Fuel Line Kit for -6 Aeromotive FPR Subaru WRX (GD / GG / GE / GH) / WRX STI (GD / GR / GV / VA) / Liberty GT (BL / BP / BM) / Forester XT (SG / SH / SJ)

Torque Solution Braided Fuel Line Kit for -6 Aeromotive FPR - Subaru WRX (GD / GG / GE / GH) / WRX STI (GD / GR / GV / VA) / Liberty GT (BL / BP / BM) / Forester XT (SG / SH / SJ)

The Torque Solution Braided Fuel Line Kit plumbs an Aeromotive -6 fuel pressure regulator into a Subaru fuel system. It uses the factory hard lines and supplied -6 AN quick-connect fittings for a clean plug-and-play install.

The kit sets the fuel system up in parallel so each cylinder gets even fuelling, and suits builds up to about 600 whp with a suitable fuel pump setup. It works with Torque Solution Top Feed Fuel Rails or any rail that accepts -8 AN ORB fittings. The 6061 billet aluminium fittings are black anodised and suit all fuel types, including E85.

Fits the Subaru WRX 2002–2014 (GD/GG/GE/GH), WRX STI 2007–2021 (GD/GR/GV/VA), Liberty GT 2007–2012 (BL/BP/BM) and Forester XT 2006–2013 (SG/SH/SJ).

Note: Needs an Aeromotive A1000 -6 fuel pressure regulator and fuel rails that accept -8 AN ORB fittings (both sold separately). 2002–2005 WRX and WRX STI need 12–14mm fuel line clamps at the firewall instead of the AN fittings. Builds near 600 whp need a suitable fuel pump setup. Installation by a professional is recommended.

Features

• Plumbs an Aeromotive A1000 -6 FPR into the factory hard lines
• -6 AN quick-connect fittings for a plug-and-play install
• Parallel fuel setup for even fuelling across all cylinders
• Suits builds up to about 600 whp with a suitable fuel pump
• 6061 billet aluminium fittings, black anodised
• Compatible with all fuel types, including E85
• Works with Torque Solution Top Feed Fuel Rails or any -8 AN ORB rail
• Limited lifetime warranty

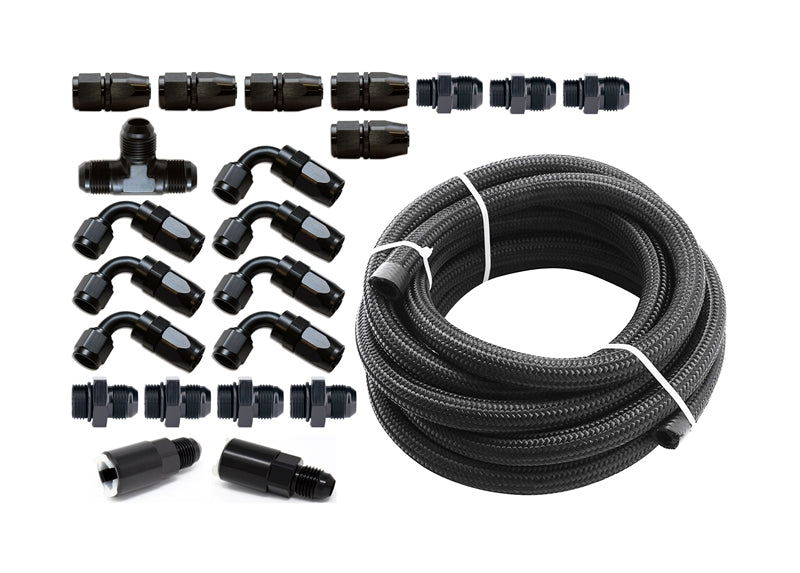

Kit Contents

• 1 x 10 ft (approx. 3 m) -6 black nylon braided rubber hose
• 1 x -6 AN T-adapter
• 5 x -6 AN straight hose ends
• 7 x -6 AN 90 degree hose ends
• 2 x -6 AN male to 5/16in SAE quick-disconnect female push-on EFI fittings
• 4 x -6 AN to -8 AN ORB fuel rail fittings
• 3 x -6 AN to -6 AN ORB FPR fittings

Pairs Well With

• Torque Solution High Volume Intake Manifold - Subaru WRX (GD / GG / GE / GH) / WRX STI (GD / GR / GV / VA)

Shop more: Torque Solution

Need help choosing parts for your Subaru? Contact our team at sales@chicaneaustralia.com.au.
