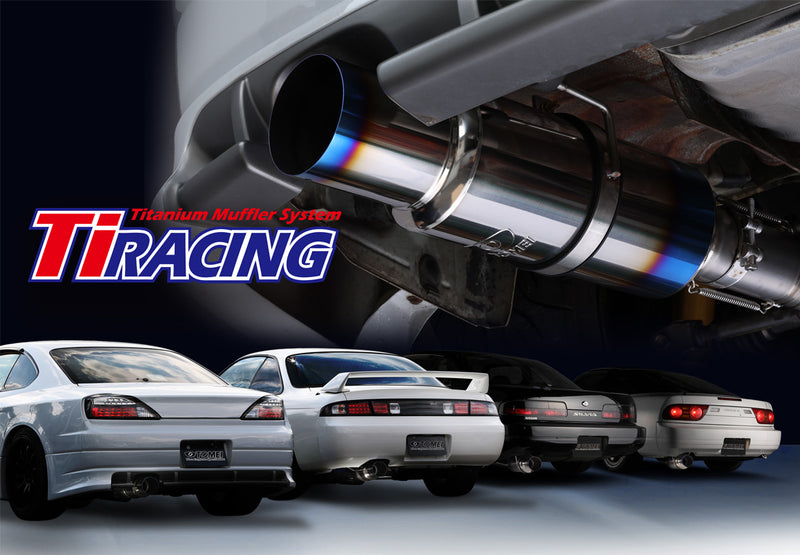

Tomei Ti RACING Titanium Muffler - Nissan Silvia / 180SX (PS13 / RPS13) - SR20DET
Ti RACING is Tomei's top titanium exhaust, now redesigned for the SR20DET Nissan Silvia (PS13) and 180SX (RPS13). It runs an 80.5 mm main pipe, one of the largest on the market for this car, into a large straight-through main silencer and a 120 mm sub-silencer. The whole system weighs 6.3 kg against about 14.5 kg for the factory exhaust.
Tomei built Ti RACING for circuit work: it keeps the flow of a straight-through race exhaust but packs in more long-strand glass wool than the EXPREME Ti, to bring the noise down for track-day sound limits. The new layout sits higher than the previous model, about 2 mm more clearance beside the diff and 18 mm more at the main silencer, and the longer burnt-titanium tip is shaped to suit the rear bumper. A bolt-in sound reducer is included for quieter running when you need it.
Note: Competition use only. This product is not intended for use on registered road vehicles – check your state's noise and emissions requirements before use on the road. Installation by a professional is recommended.
Features
- Tomei's own titanium, refined and formed in-house
- 80.5 mm main pipe, 1.0 mm wall
- 152 mm straight-through main silencer and 120 mm sub-silencer
- 115 mm straight-cut burnt titanium tip with laser-engraved Tomei logo
- Mirror-finish silencer shell with stamped Tomei logo
- 6.3 kg, against about 14.5 kg for the factory exhaust
- Removable sound reducer included
Pairs Well With
- Tomei Full Cast Turbo Outlet Pipe - Nissan Silvia / 180SX / 200SX (PS13/RPS13/S14/S15) - SR20DET
- Tomei Full Cast Turbo Outlet Pipe EAI - Nissan Silvia / 180SX (PS13/RPS13) - SR20DET
- GFB Hybrid Dual Port Blow Off Valve - Nissan Silvia/180SX (S13) / 300ZX (Z32) / Pulsar GTiR (N14) - 35mm/30mm
- ARP Head Stud Kit - Nissan SR20DET - Silvia / 180SX / 200SX (S13 / S14 / S15)
Shop more: Tomei for Nissan Silvia, 180SX & 200SX · Tomei
Need help choosing parts? Contact our team at sales@chicaneaustralia.com.au.
Product
- Brand
- Tomei
- Series
- Ti RACING
- Part number
- 441015
Details
- Engine
- SR20DET
- Material
- Titanium
- Main pipe diameter
- Φ80.5 mm
- Pipe thickness
- 1.0 mm
- Main silencer diameter
- Φ152 mm
- Sub-silencer diameter
- Φ120 mm
- Exit diameter
- Φ115 mm, straight cut
- Flange thickness
- 8.0 mm
- Flange inner diameter
- Φ80.5 mm
- Sound level (Tomei test)
- 81.0 dB idle / 103.2 dB at 4,500 rpm
- Weight
- 6.3 kg (factory approx. 14.5 kg)
- Use
- Competition / off-road only
Contents
- 1 x Main pipe A
- 1 x Main pipe B
- 1 x Silencer assembly
- 1 x Sound reducer
- 1 x Gasket
- 2 x Clamp bands
- 4 x Springs
- 1 x Silencer band
- 1 x Silencer band rubber
- 2 x M10 flange nuts
- 1 x M8 flange nut
- 1 x M8 flange bolt
- 1 x M6 button bolt
- 1 x Allen key
No instructions available for this product.
