Snow Performance Stage 1 Boost Cooler Water-Methanol Injection Kit Universal

Snow Performance Stage 1 Boost Cooler Water-Methanol Injection Kit - Universal

The Snow Performance Stage 1 Boost Cooler is a water-methanol injection kit for turbocharged and supercharged petrol engines. An adjustable boost switch turns the pump on at your chosen boost level and sprays a fixed amount of water-methanol into the intake until boost drops below that point. Snow rates it at a 30–70 hp gain on forced-induction engines once tuned, with a big boost in effective octane and a cooler intake charge on pump fuel.

Video

It suits low- to medium-boost street cars, drag cars and positive-displacement (Roots or twin-screw) superchargers. You can also trigger it from another switch, such as a full-throttle or nitrous switch. The kit is built around Snow's OEM-approved Extreme Environment 300 psi UHO pump, which has sealed and potted O-ring connections to keep moisture out, plus a heat flange, twin seals and custom motor windings so it runs cooler and lasts longer.

Every wetted part is 100% methanol resistant (stainless steel, nickel plating, hard anodising and EPDM), and Snow's ACU-SEAL compression fittings keep the system leak-free even on straight methanol. This SNO-201 version uses red high-temp nylon line with quick-connect fittings and includes the 3 qt reservoir.

Note: For boosted petrol engines only (not diesel). The car needs a tune to make the most of the extra octane, so plan for a tune session after install. Installation by a professional is recommended.

Features

• Made in the USA
• Adjustable boost-switch activation, with LED monitoring and a low-level warning
• Suits turbo, centrifugal and positive-displacement supercharged engines
• Supports 1,000+ hp
• OEM-approved Extreme Environment 300 psi UHO pump
• Hyper-Sonic nozzle in a low-profile, Running "S" engraved holder
• Low-profile high-flow check valve stops boost back-feed and siphoning
• ACU-SEAL compression fittings and 100% methanol-resistant parts

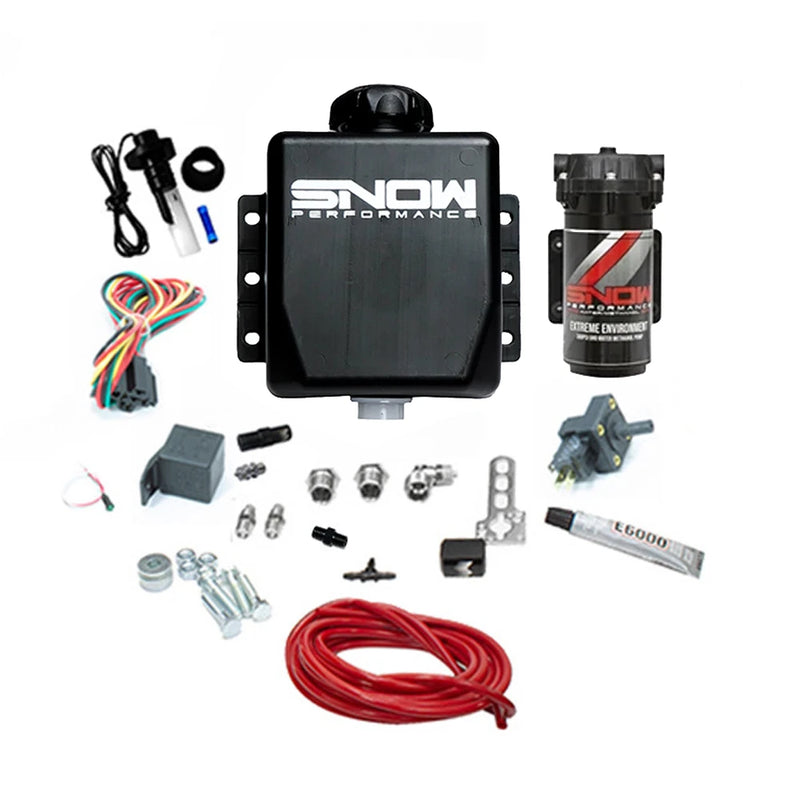

Kit Contents

• 1 x 3 qt (2.8 L) reservoir with self-sealing low-level sensor and yellow LED
• 1 x Extreme Environment 300 psi UHO water-methanol pump
• 1 x adjustable boost pressure switch (factory set 9–11 psi)
• 1 x relay, green LED, fuse holder and 20 A fuse
• 1 x Hyper-Sonic nozzle and low-profile nozzle holder
• 1 x high-flow check valve (35 psi crack pressure)
• Red high-temp nylon line with quick-connect fittings
• Silicone boost hose and boost T fitting
• E6000 sealant, mounting screws and washers

Pairs Well With

• Snow Performance 10 Gal Water–Methanol Tank Upgrade
• Snow Performance 300 UHO Pump – Extreme Environment (Quick Connect)

Shop more: Snow Performance

Need help planning a water-methanol setup? Contact our team at sales@chicaneaustralia.com.au.
