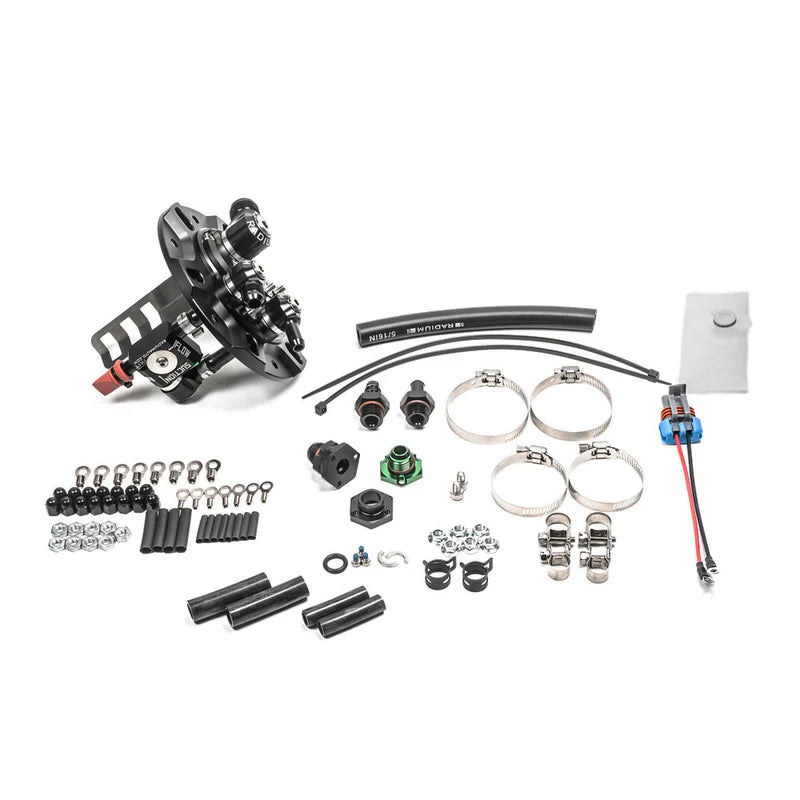

Radium Fuel Pump Hanger – Mitsubishi Lancer Evolution 1–6

Overview
The Radium Engineering single fuel pump hanger is designed for the Mitsubishi Lancer Evolution 1–6, providing a reliable and high-capacity solution for both brushed and brushless aftermarket fuel pumps. With compatibility ranging from 340LPH to 810LPH, this drop-in unit ensures stable fuel delivery for high-performance builds while retaining OEM functionality such as the factory fuel level sensor and low fuel warning light.

Key Features

• Direct drop-in installation for Mitsubishi Evolution 1–6
• Compatible with popular brushed (2-wire) and brushless (3–4 wire) fuel pumps
• Reuses OEM fuel level sensor and low fuel indicator

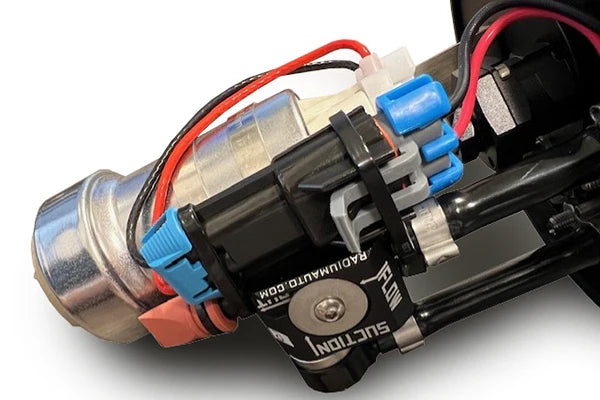

• High-flow PRV venturi jet pump stabilises rail pressure under high load
• 8AN ORB fuel pump outlet and 6AN ORB return inlet with included low-profile adapters
• Electrical bulkhead with stainless studs rated for high current demand
• Hermetically sealed and impervious to petrol, ethanol blends, and methanol
• Constructed from corrosion-resistant aluminium and stainless steel

Fuel Pump Compatibility

• AEM 50-1220
• Walbro F90000267 / F90000274 / F90000285 / F90000295
• Protec 11928 (brushless)
• Fuelab 49614 (brushless)
• Deatschwerks DW400 / DW440 (brushless) / DW810 (brushless)

Fuel Starvation Protection

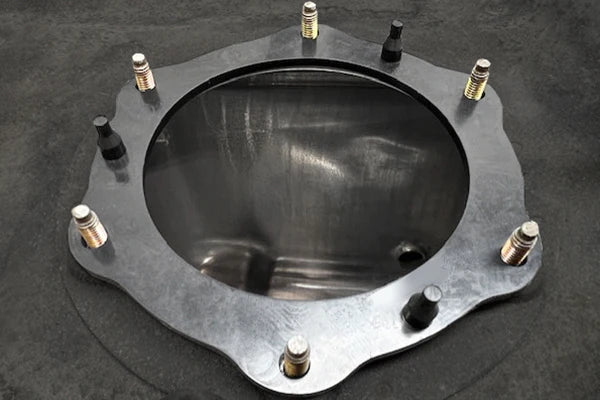

The OEM Evo fuel tank features a built-in collector bowl to maintain consistent fuel pickup under aggressive driving. Radium’s upgraded PRV venturi jet pump continuously draws fuel into the bowl, preventing starvation and ensuring stable delivery in demanding motorsport environments.

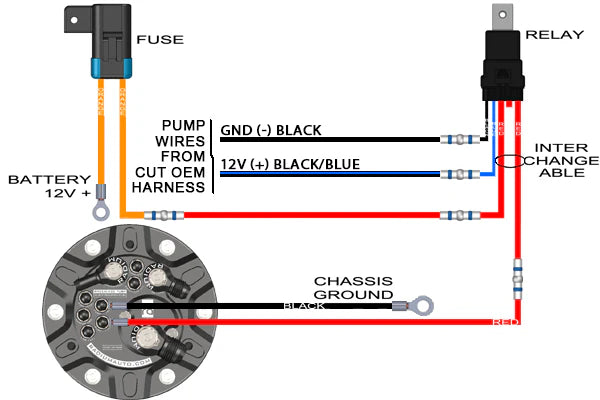

Electrical
High-current stainless steel electrical studs with an anti-rotation feature provide a secure connection superior to compact bulkhead connectors. ETFE insulated in-tank wiring ensures chemical resistance, while anodised acorn nuts prevent accidental short circuits. The system supports both brushed and brushless pump wiring requirements.

Vehicle Compatibility

• Mitsubishi Lancer Evolution 1 (1992–1993)
• Mitsubishi Lancer Evolution 2 (1994–1995)
• Mitsubishi Lancer Evolution 3 (1995–1996)
• Mitsubishi Lancer Evolution 4 (1996–1998)
• Mitsubishi Lancer Evolution 5 (1998–1999)
• Mitsubishi Lancer Evolution 6 (1999–2001)

Notes

• OEM fuel pump wiring can be reused, though upgrading is recommended for maximum performance.
• Compatible with petrol, E85, and methanol fuels.
• Universal Radium fuel pump wiring kits are available separately.
