Radium Engineering Fuel Level Sender Block-Off Plate (5-Bolt SAE) - Universal

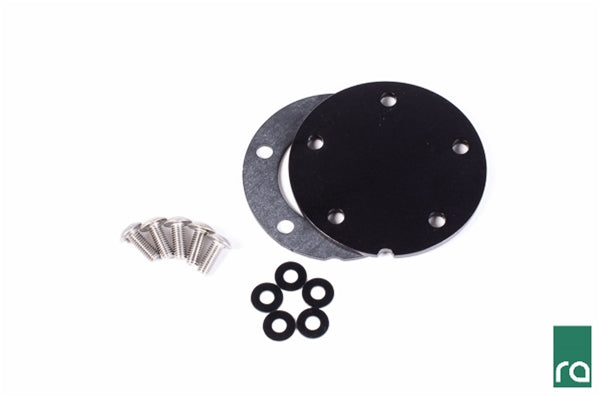

The Radium Engineering 20-0146 Block-Off Kit seals an unused 5-bolt SAE fuel level sender port when a level sensor is not required. It is widely used on Radium FCST and FCST-X fuel cell surge tanks and also suits many other aftermarket fuel cells using the standard SAE 5-bolt pattern, including ATL, Fuel Safe, Pyrotect, Harmon and Jaz.
The 1/8" anodised aluminium plate resists corrosion and seals with an FKM gasket and stainless steel 10-32 bolts for a secure, leak-free, vapour-tight finish.
Note: Radium 20-049X-XX FCST units do not need the nylon sealing washers included in the kit. Installation by a professional is recommended.
Pairs Well With
- Radium Engineering RA-Series Fuel Cell (FIA-FT3 Certified) - Universal
- Radium Engineering 12AN ORB to 5-Bolt SAE Adapter - Universal
Need help confirming fitment? Contact our team at sales@chicaneaustralia.com.au.
Vehicle Compatibility
| Make | Model | Chassis | Years | Engine / Notes |
|---|---|---|---|---|
| Universal | Fuel cells with an SAE 5-bolt sender port (Radium FCST / FCST-X, ATL, Fuel Safe, Pyrotect and others) | - | - | Seals an unused sender port |
Product
- Brand
- Radium Engineering
- Part number(s)
- 20-0146
Details
- Product
- Fuel level sender block-off kit
- Flange pattern
- SAE 5-bolt
- Plate
- Anodised aluminium, 1/8" thick
- Gasket
- FKM
- Bolts
- 5 × stainless steel 10-32
- Sealing washers
- 5 × nylon (not required on FCST 20-049X-XX)
- Compatible fuel cells
- Radium FCST/FCST-X, ATL, Fuel Safe, Pyrotect, Harmon, Jaz
Contents
- 1 x anodised aluminium block-off plate (1/8")
- 1 x 5-bolt FKM gasket
- 5 x stainless steel 10-32 bolts
- 5 x nylon sealing washers
