Radium RA-Series Fuel Cell – FIA-FT3 Certified

Radium RA-Series competition fuel cells are engineered for maximum safety and performance across all motorsport disciplines. Each fuel cell features an FIA and SFI-certified seamless polymer bladder housed in a durable powder-coated aluminium enclosure. Designed for use with gasoline, diesel, ethanol, methanol, E85, and other fuels, these cells are ideal for road racing, drifting, rally, off-road, and endurance applications.

Key Features

• Certified to FIA FT3 and SFI 28.1 standards (valid 5 years)

• Lightweight polymer bladder with full fuel compatibility

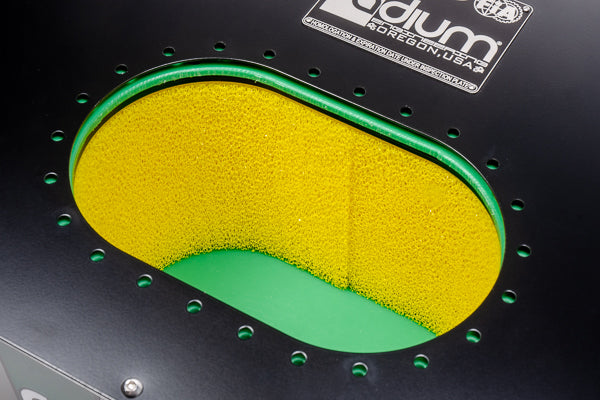

• Explosion-suppressing anti-slosh foam included

• Powder-coated aluminium outer enclosure

• Anodised aluminium nut ring for quick pump installation

• Removable inspection plate for easy tech inspection

• Compatible with Radium FCST and FCST-X

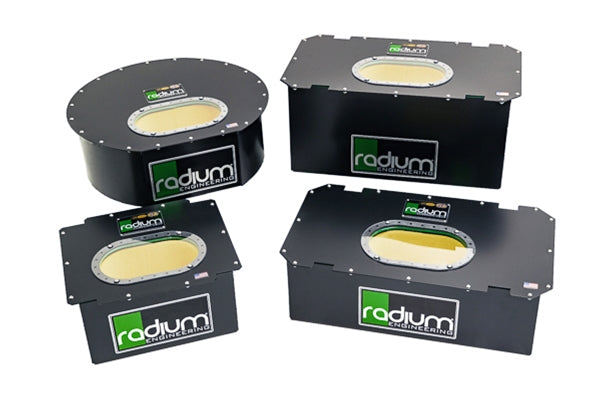

• Available in multiple sizes from 6 to 22 gallons (22.7L–83.3L)

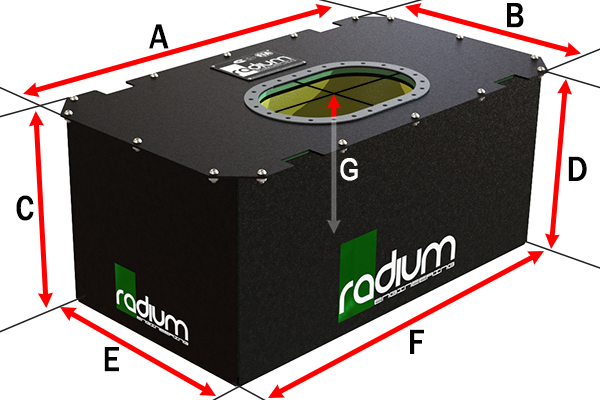

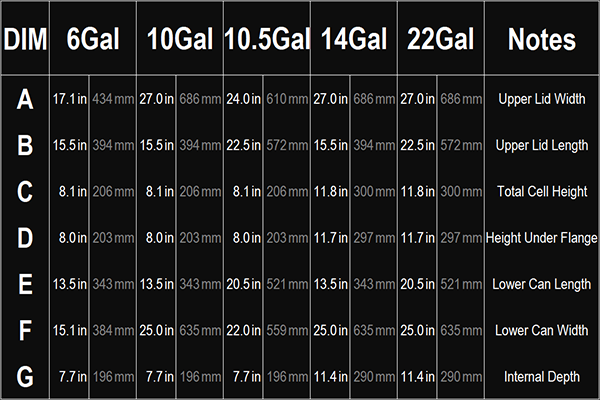

Available Sizes

• 20-0606: 5.4–6.0 gal (20.3–22.7L)

• 20-0610: 9.2–10.0 gal (34.8–37.9L)

• 20-0611: 10.3–10.5 gal (38.9–39.7L)

• 20-0614: 13.7–14.0 gal (51.9–53.0L)

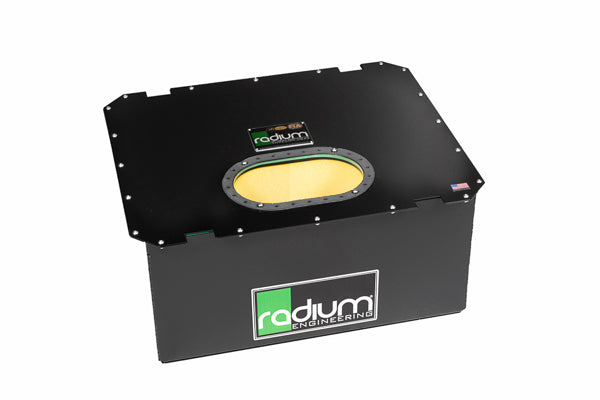

• 20-0622: 21.5–22.0 gal (81.5–83.3L)

Included

• Certified polymer bladder

• Anti-slosh foam

• Aluminium enclosure

• Anodised nut ring

• Inspection plate

• Two 6x10 FKM gaskets (24-bolt)

• Stainless steel hardware

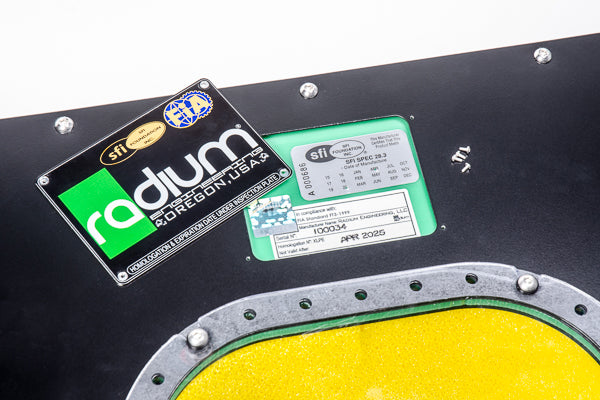

• Certification documentation

Important Notes

• All fuel cell sales are final—no returns or exchanges

• Fuel cells ordered with FCST/FCST-X are shipped pre-assembled

• Built to order: ships within 1–4 weeks

• International orders require manual shipping quote

Optional Accessories

• Weld-in cages and spare tire mounts

• Carbon fibre fuel cell lids (select sizes)
