Radium 12AN ORB to 5-Bolt SAE Adapter

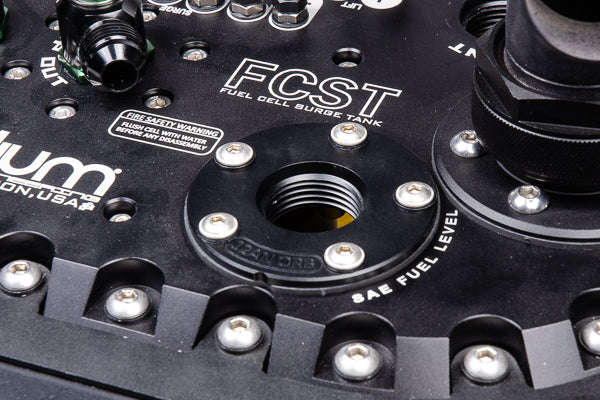

The Radium 20-0439 adapter converts a standard 5-bolt SAE fuel level sender flange into a large 12AN ORB vent port, making it ideal for applications requiring increased venting capacity. Commonly used with older FCST units (20-014X-XX) that featured a smaller vent, this adapter allows high-flow venting while maintaining compatibility with existing bolt patterns.

Key Features

• Converts 5-bolt SAE sender flange to a 12AN ORB vent fitting

• Ideal for upgrading older Radium FCST systems (20-014X-XX)

• Machined from high-quality materials for fuel compatibility

• Not compatible with fuel level sender when installed

• Provides a high-flow venting solution for remote fill setups and high-G driving

Important Installation Notes
To minimise fuel loss and prevent vent line pressurisation, follow these routing guidelines:

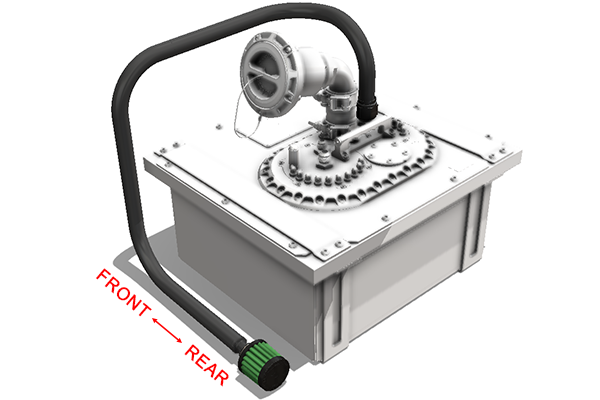

1. Route the vent hose vertically upward from the fuel cell to allow fuel to drain back.

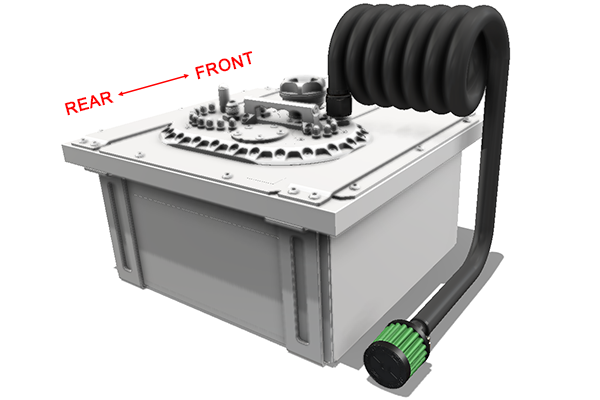

2. Add a forward-facing loop to reduce slosh-related fuel escape.

3. If limited on vertical space, use looped expansion chambers to trap liquid and reduce vapour emissions.

4. Ensure the vent line is higher than the fuel fill point in remote fill applications.

5. Always terminate the vent line outside the cabin, away from the exhaust system.

Included

• 1 × 12AN ORB to 5-bolt SAE adapter plate

• Mounting hardware (if applicable)

Note
Not compatible with fuel level senders when installed in place.
