Radium Engineering Fluid Lock Catch Can Kit (PCV) Toyota 86 / Subaru BRZ (ZN6 / ZC6)

Radium Engineering Fluid Lock Catch Can Kit (PCV) - Toyota 86 / Subaru BRZ (ZN6 / ZC6)

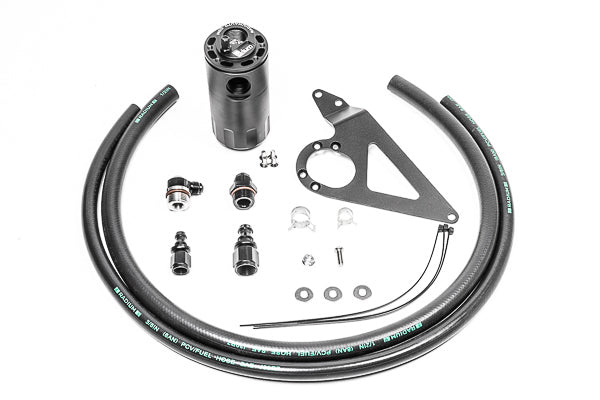

This Radium Engineering Fluid Lock PCV catch can kit (SKU 20-0901-FL) is a direct fit for the Toyota 86 and Subaru BRZ. It runs inline with the 3/8in PCV valve hose and catches crankcase vapour, unspent fuel and oil sludge that would otherwise be drawn into the intake manifold at idle, cruise and on deceleration.

Video

Radium Engineering Oil Catch Can Install Scion FR-S/BRZ/86

The can mounts on the right-hand side of the engine bay using factory bosses and holes. Its pressure-sealed design allows a direct manifold connection on boosted engines, and it is compatible with current aftermarket forced induction kits. Use it on its own or pair it with the 20-0902-FL CCV kit for full coverage (dual kit 20-0903-FL).

Note: This is a closed-loop system that does not vent to atmosphere. Suits RHD and LHD vehicles, although some brake line clearancing may be needed on right-hand-drive cars. Installation by a professional is recommended.

Features

• Fluid Lock design prevents overfilling and traps collected fluid
• 10AN ORB ports with a 4AN ORB drain port
• 2-step internal baffling and O-ring sealed dipstick
• Black anodised aluminium construction
• Mounts to factory bosses – no cutting, drilling or permanent modification
• Suits naturally aspirated and forced induction engines
