Radium Engineering Fluid Lock Catch Can Kit (CCV) - Toyota 86 / GR86 / Subaru BRZ

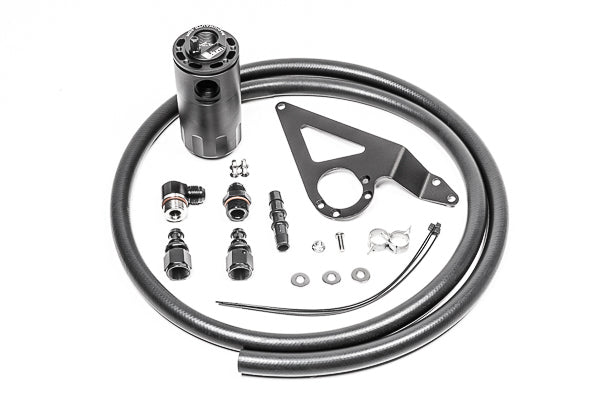

The Radium Engineering Fluid Lock CCV Catch Can Kit (SKU 20-0902-FL) suits every generation of the Toyota 86 / GR86 and Subaru BRZ. It mounts on the left-hand side of the engine bay, inline with the 1/2in crankcase breather, and captures the oil vapour, unspent fuel and sludge that would otherwise be pulled into the intake at high load.

On turbo or supercharged cars that oil would coat the intercooler and reduce its efficiency. The closed-loop Fluid Lock can has 10AN ORB ports, a 4AN ORB drain port, 2-step oil separation baffling and an O-ring sealed dipstick, and is pressure sealed so it can connect to the intake manifold on boosted engines. Pair it with the 20-0911-FL PCV kit for full coverage.

Note: Suits RHD and LHD vehicles; some brake line clearancing is required on RHD installs. Mounts using factory bosses with no permanent modification. Installation by a professional is recommended.

Features

• CCV circuit catch can, inline with the 1/2in breather
• Fluid Lock closed-loop design – no vent to atmosphere
• 10AN ORB ports and 4AN ORB drain port
• 2-step oil separation baffling
• O-ring sealed dipstick
• Boost safe – pressure sealed
• 207mL capacity; 12.7cm tall (without fittings), 6.2cm OD
• Mounts to factory bosses on the LH side of the engine bay

Pairs Well With

• Radium Engineering Fluid Lock Catch Can Kit (PCV) - Toyota 86 / Subaru BRZ (ZN6 / ZC6)
• Radium Engineering Fluid Lock Catch Can Kit (PCV) - Toyota GR86 / Subaru BRZ (ZN8 / ZD8)
• Radium Engineering Catch Can O-Ring Service Kit - Universal
• Radium Engineering Catch Can Petcock Drain Kit - Universal - 4AN ORB
• Radium Engineering Fuel Filter Mount - Toyota 86 / GR86 / Subaru BRZ

Need help confirming fitment? Contact our team at sales@chicaneaustralia.com.au.
